Autronica Autro Safe BS-310 - Assembly Drawing

Introduction
Installation Handbook, AutroSafe Interactive Fire Alarm System, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS

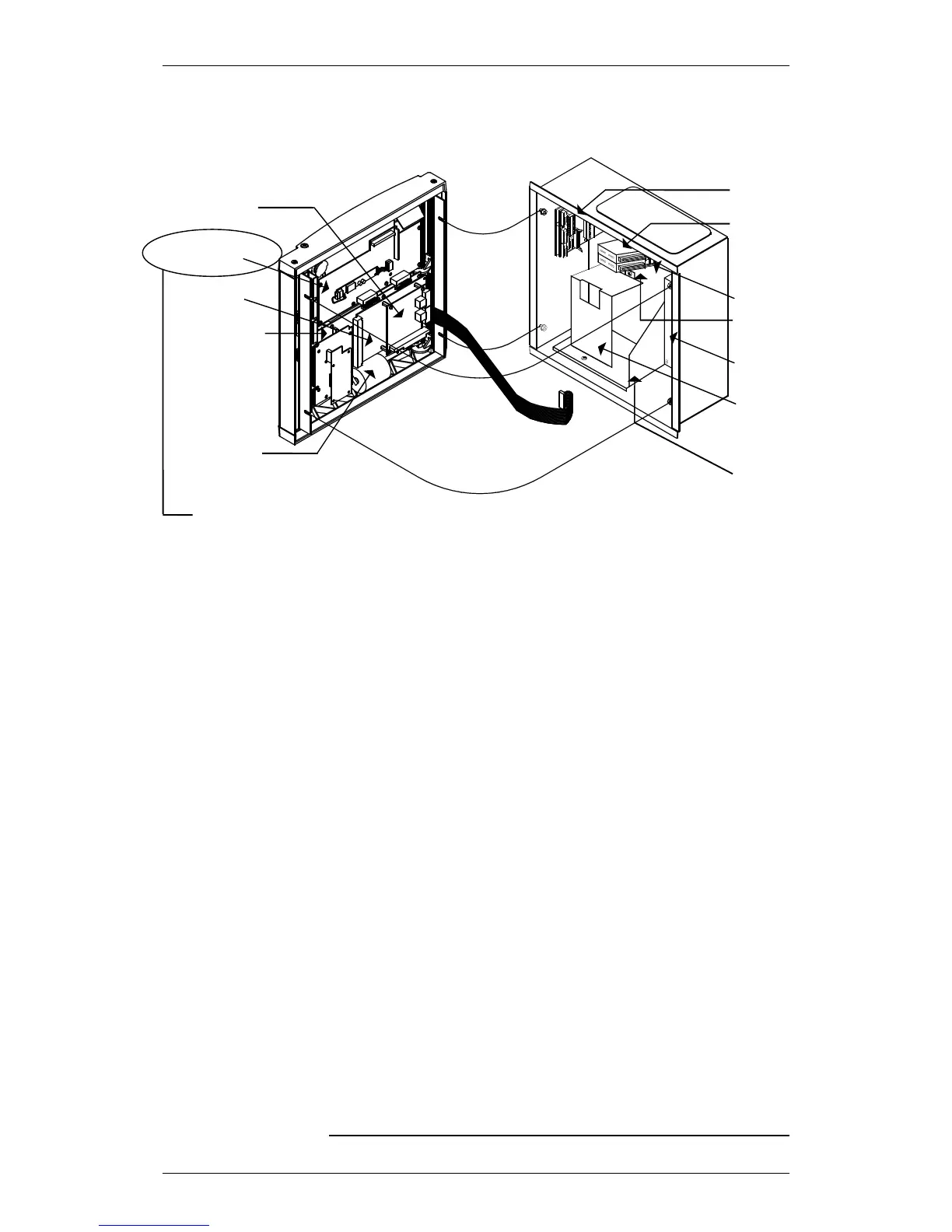

1.6 Assembly Drawing
Front Panel
Cabinet
LON Interface
EAU-310
Display Board
BSR-310
Processor Board
EAC-300
Operator Board
BSZ-310
Connection
Module BSF-310B
Loop Driver or I/O
Modules (on top of
Power and Comm.
Module)
Communication
Module BSL-310
Power Module
BSS-310A/02
Power Supply
BSS-103/01
Battery Cover
Battery Shelf
Printer
BUP-310
(Not included in
Controller, BC-320)
