5.3 Application with several AUTROLON rings
5.3.1 General
AutroMaster 5000 is used as the top level system. AutroMaster 5000
enables a two-way communication with both AUTROLON rings and
monitors the entire system.
NOTE:
The communication is not possible through AUTROLON rings by use
of AutroMaster 5000. The connection from the panels on each
AUTROLON ring is done via TP or optical fibre and a HUB to
AutroMaster 5000.
The units BN-300 (Fire Alarm Interface Unit) and BN-310 (Relay
Output Unit) are used to identify a limited number of alarms between
the AUTROLON rings. For this purpose a detection loop on
AUTROLON ring 1 is connected to a detection loop on AUTROLON
ring 2.
Output (FPE; Fire Protection Equipment) on the BN-310 unit on
AUTROLON ring 2 is connected to input (FAI; Fire Alarm Interface) on
AUTROLON ring 1 (or opposite). By means of the AutroSafe
Configuration Tool, FPE on AUTROLON ring 2 is connected to
detection zones (DZ's), which enables alarm transfer to FAI on
AUTROLON ring 1. FAI on AUTROLON ring 1 is connected to a

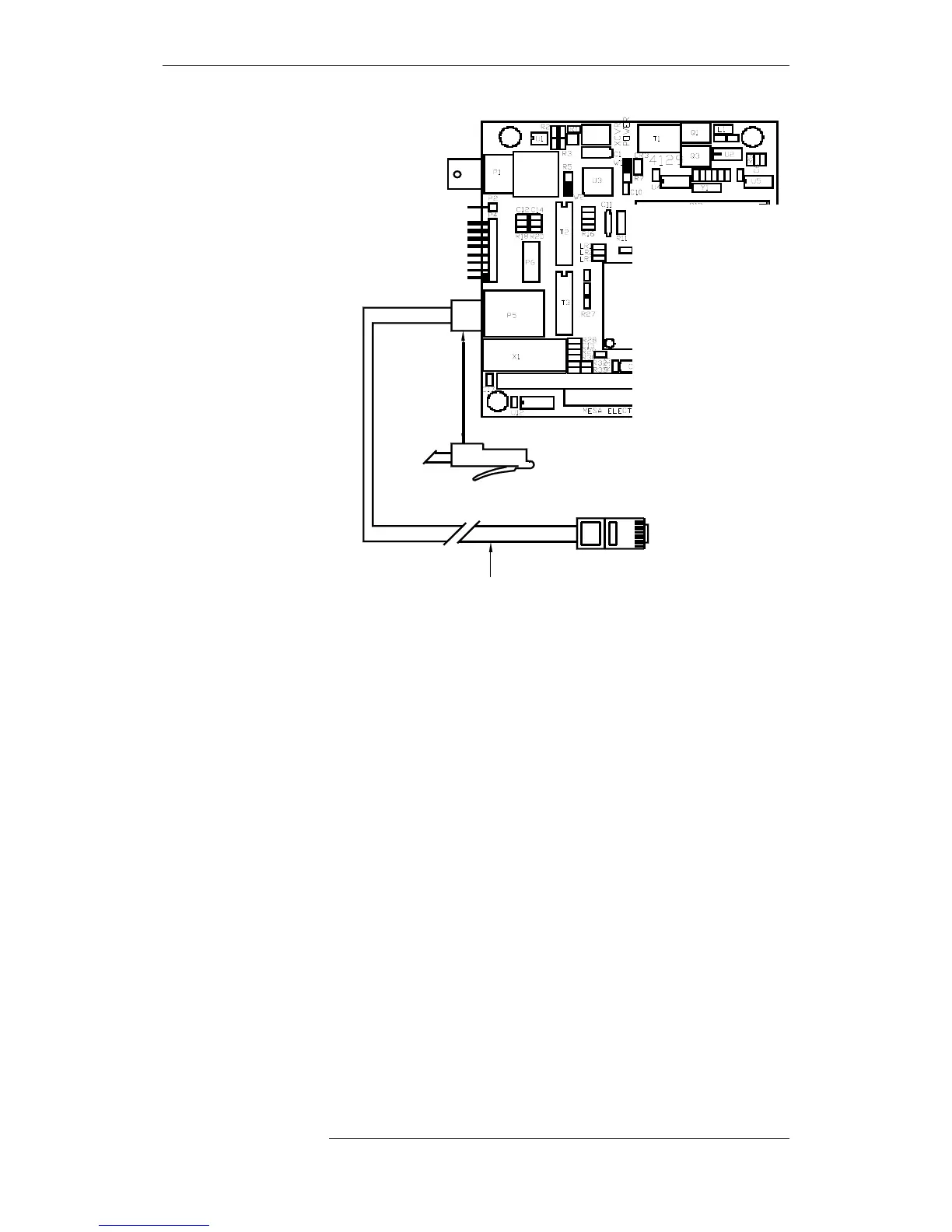

Patchcable
The Ethernet Communication
Board, EAU-330 with a
Patchcable connected.
