Mounting
Installation Handbook, AutroSafe Interactive Fire Alarm System, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
1.12 Flush Mounting in a Wall
1.12.1 Removing the Front Panel
All the inside units in the cabinet are fastened to a mounting plate. The
cabinet is delivered with the front panels fastened to the cabinet.
Follow the procedure described in chapter 2.5.1;
unscrew the 2 screws on the top and the bottom on the right
hand side of the front panel and open it.
disconnect the ribbon cables between the front panel and the
cabinet by removing the connector on the BSF-310B board.
unscrew the 4 wing nuts on the right and left side inside the
cabinet and remove the front panel from the cabinet.
1.12.2 Removing the Mounting Plate
To avoid damaging the electronics, the mounting plate inside the
cabinet should be removed.
Unscrew the 5 screws on the mounting plate inside the cabinet and
carefully lift it out of the cabinet.

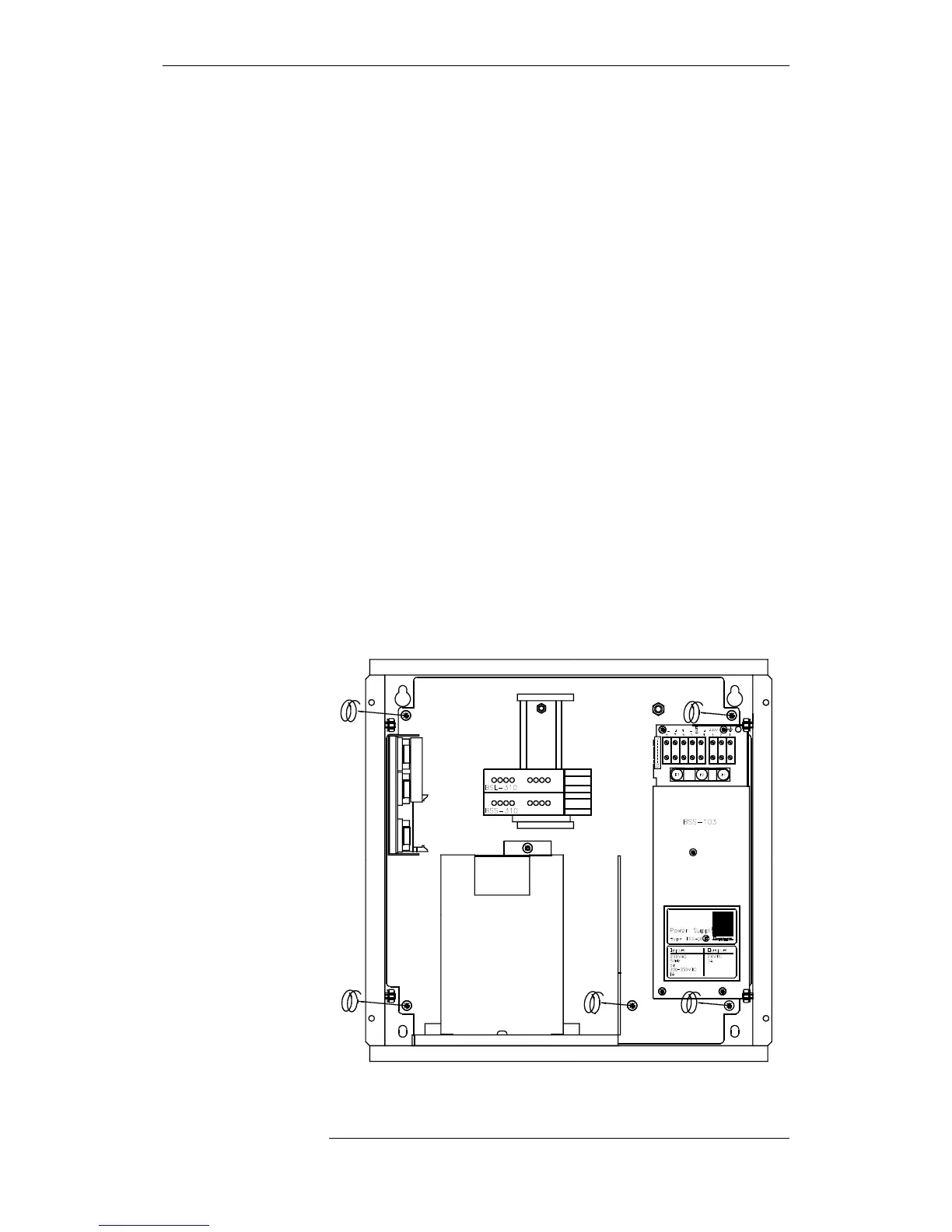

Mounting
screws
