Internal Cable Connections
Installation Handbook, AutroSafe Interactive Fire Alarm System, Release 3, 116-P-ASAFE-FA/DE,
Rev. J, 2011-12-06,
Autronica Fire and Security AS
NOTE:
The following internal cable connections are already
done when the product leaves the factory:
Power Module BSS-310: A small ribbon cable is
used between the Power Module and the Power Supply
BSS-103A/02.
Communication Module BSL-310: Two small ribbon
cables are used.
One cable is used to interconnect the Communication
Module and the Connection Module BSF-310B.
The other cable is used to interconnect the Communication
Module and the Power Supply BSS-103A/02.

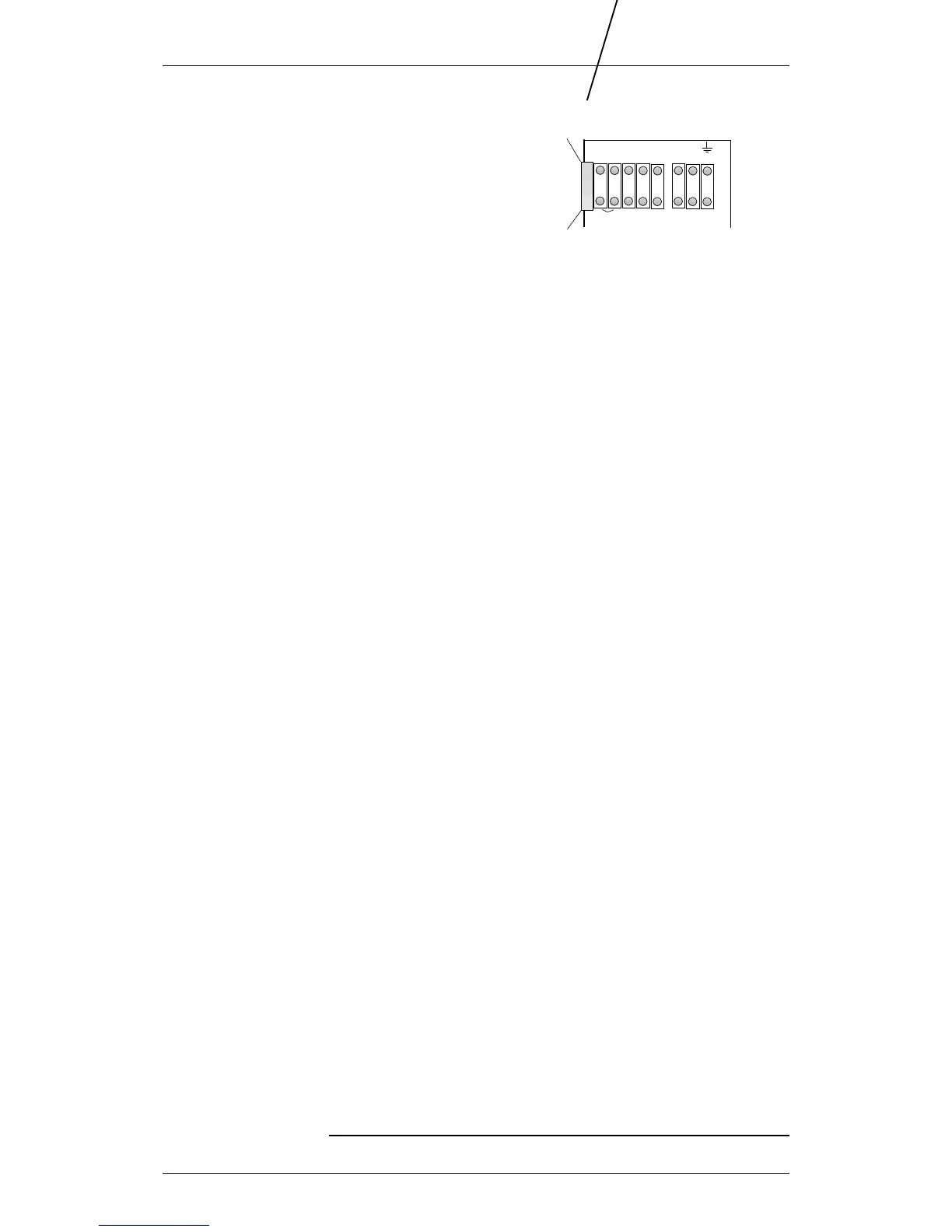

Screw Terminals on Power Supply BSS-103A/02
8 7 6 5 4 3 2 1
- + T - + 230V
10 9 8 7 6 5 4 3 2 1
10 9 8 7 6 5 4 3 2 1
Protective Earth
Neutral
230V
+24V DC to battery
0V
Test
External 24V Output
Connector
To Next Page
