Autronica AutroSafe Maritime Gas Detection - Page 45

84 pages

To Next Page

To Previous Page

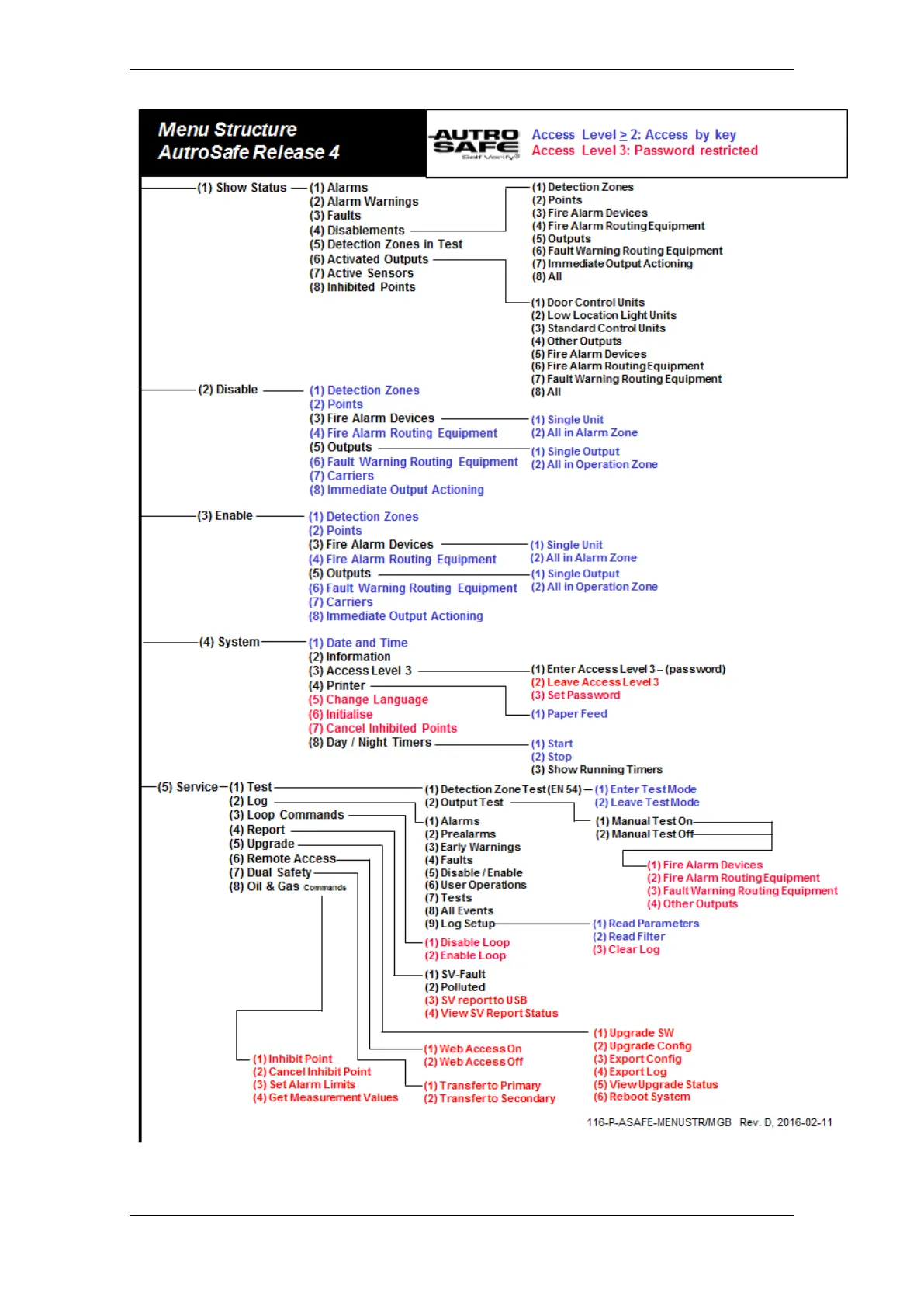

Menu Structure

System Description and Operation, AutroSafe Maritime Gas Detection, 116-P-BS420MG/XGB, Rev. E, 2019-12-10,

Autronica Fire and Security

Page 39

Main Page

Table of Contents3
Introduction7
About the Handbook7
The Reader7
Reference Documentation7
Terms, Abbreviations/Acronyms and Definitions8
Brief Introduction9
General Description11
Autrosafe Maritime Gas Detection11
Distributed System Topology11
System Architecture11
Autronet13
Autrofieldbus14
Response Time14
Configuration14
Communication to External Systems15
Modbus Protocol Communication for C&E Data to Control System15
Autrosafe Autrocom Protocol15
Powerloop (BSD-340)16
Detectors and Field Devices17
Gas Detectors17
Powerloop Driver BSD-34017
Description17
Overview18
Connections18
Earthing and Shielding19
Capacity / Limitations19
Autropoint Maritime Gas Detectors20
Powerloop 4-20 Ma Input Unit BN-34220
Description20
Versions20
Overview21
Connection - Current Source21
Connection - Current Sink22
Outputs22
Programmable Digital Outputs in Panel (BSJ-310 Module)22
Programmable EOL Monitored 24VDC Outputs (BSB-310)22
Inputs23
Bse-31023
Bse-32023
Autromaster Application/Description24
Gas Functionality26
Inhibit Point26
Set Alarm Limits26
Get Measurement Values26
Support for Common Trouble Output26
Support for Gas Detectors (4-20 Ma Input)26
Language27
Panel Overview28
Introduction28
Panel Variants28
Indication Devices28
Maritime Gas Panel29
Repeater Panel BU-BV-42030
System Mode30
Information Mode30
Loop Panels31
System Loop Panel BU-11031
Information Loop Panel BV-11031
The Menu Display32
Adjusting the Display Contrast32
Indication Devices33
Upper Section33
The Operator Section (Lower Left Section)34
Operating Buttons35
Operator Panels (Upper and Lower Section) / Repeater Panel (Upper Section)35
Information Panel38
Internal Buzzer39
Maritime Gas Panel BS-420MG39
Repeater Panel BU-BV-420 (System/Information Mode)39
System Loop Panel BU-11039
Information Loop Panel BV-11039
Operation Mode40
Introduction40
Conditions in Operation Mode41
Alarm Levels41
Access Levels41
Menu Mode42
How to Enter Menu Mode42
The Menu Mode Display42
Buttons Used to Operate the Menu43
Action Digits in Menu Mode43
Introduction43
Action Digits Table43
How to Operate in Menu Mode44
Menu Structure44
Show Status46
Introduction46
Show Status Menu46
Show Status - Alarms47
Show Status - Alarm Warnings47
Show Status - Faults47
Show Status - Disablements47
Show Status - Detection Zones in Test48
Show Status - Activated Outputs48
Show Status - Active Sensors48
Show Status - Inhibited Points48
Disabling49
General49
Disable Menu49
Indications on the Operator Panel50
Disabling Activated / Deactivated Components50
Disabling Detection Zones50
Disabling Points50
Disabling Fire Alarm Devices51
Disabling Fire Alarm Routing Equipment51
Disabling Outputs51
Disabling Fault Warning Routing Equipment52
Disabling Carriers52
Disabling Immediate Output Actioning52
Enabling53
General53
Enable Menu53
Enabling Activated / Deactivated Components54
Enabling Detection Zones54
Enabling Points54
Enabling Fire Alarm Devices54
Enabling Fire Alarm Routing Equipment55
Enabling Outputs55
Enabling Fault Warning Routing Equipment55
Enabling Carriers55
Enabling Immediate Output Actioning55
System Menu56
Introduction56
How to Enter Access Level 3 / Set Password57
Introduction57
How to Change Language57
How to Initialize the System57
Cancel Inhibited Points58
Day / Night Timers58
Starting / Stopping Automatic Day / Night Operation from the Control Panel58
Overriding Automatic Day / Night Operation from the Control Panel58
Service Commands59
Introduction59
Service Menu59
Testing60
Testing Detection Zones60
Testing Outputs61
Event Recording - Log Menu66
The Log Setup Menu67
Loop Commands68
Disable Loop68
Enable Loop68
Report69
Upgrade69
Upgrade SW70
Upgrade Config70
Export Config70
Export Log70
View Upgrade Status71
Reboot System71
Remote Access72
Dual Safety72
Gas Commands73
Inhibit Point73
Cancel Inhibit Point75
Set Alarm Limits77
Get Measurement Values79
Troubleshooting81
Examples of Fault Messages81
Appendix82
Powerloop, BSD-340, Gas Detection Loop82
