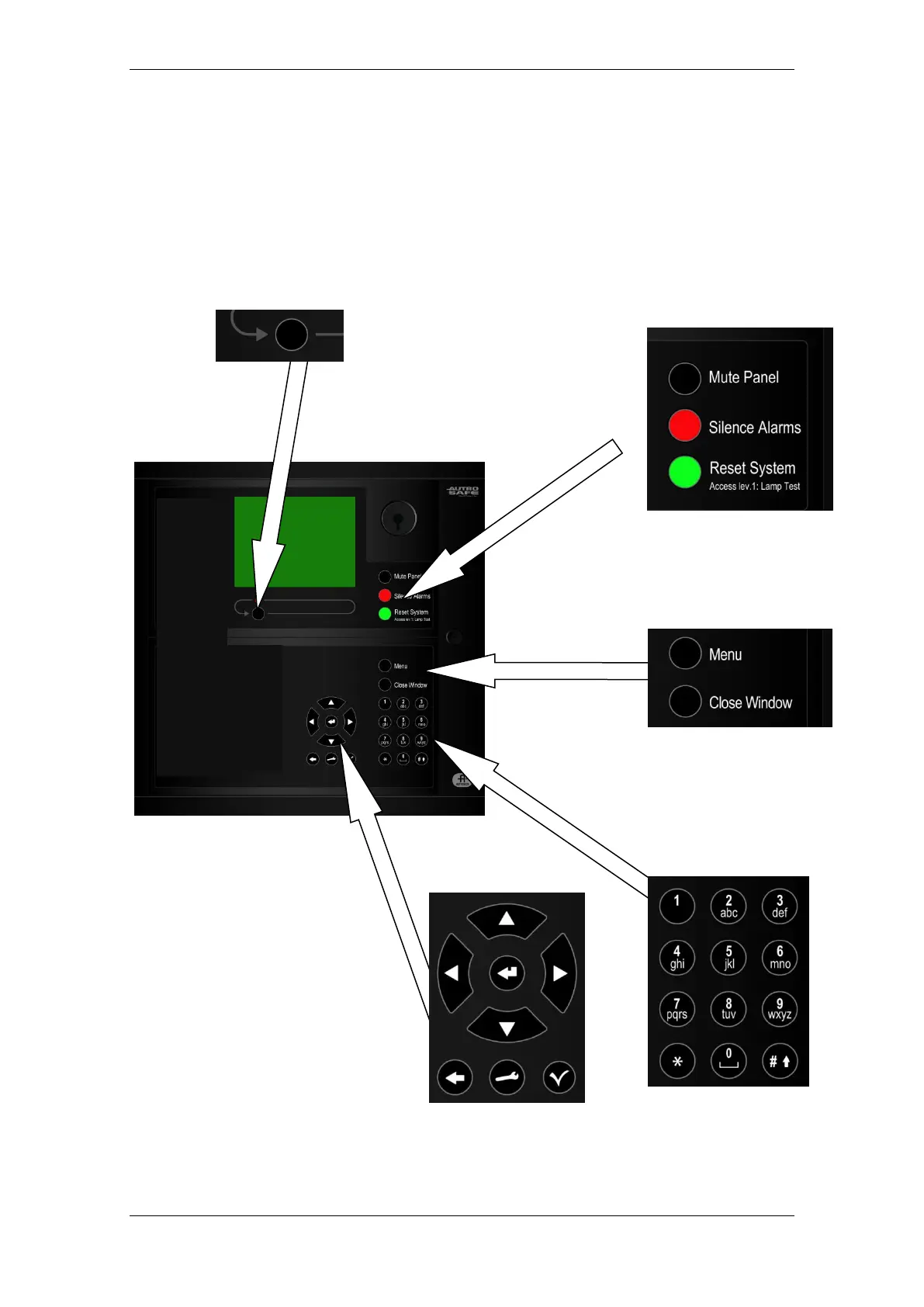

6.8 Operating Buttons
6.8.1 Operator Panels (upper and lower section) /
Repeater Panel (upper section)
Utility Buttons
(BS-420 / BS-430)
Alphanumeric Keyboard
(BS-420 / BS-430)
More Events Button (Front Push Button)
Manoeuvre Buttons
(BS-420 / BS-430)
Front Push Buttons
