Online Parameters

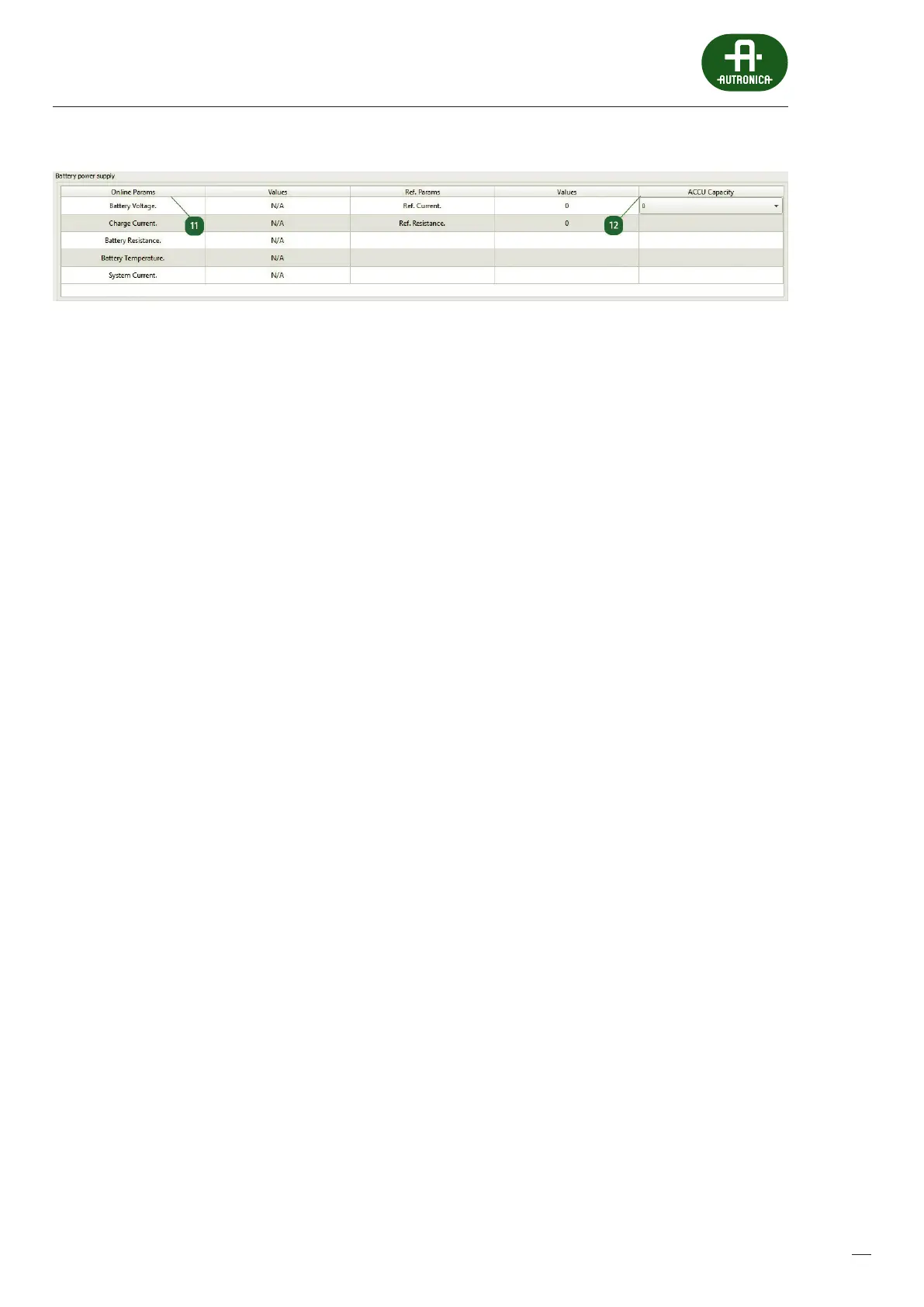

This tab is updated in the online mode, giving the user a live preview of the charger unit parameters. This enables the user
to control the state of the battery array.
Battery Voltage – displays the existent voltage in the battery circuit.
Charge current – displays the current in the battery circuit, this value is compared with a reference value calculated
from the battery capacity.
Battery Resistance – displays the current battery resistance, , this value is compared with a reference value calculated
from the battery capacity.
Battery Temperature – displays the data from the battery temp. sensor connected to the 3.5mm jack on the charger unit.
System Current – splays a total momentary current draw from the main PSU.
e
Accu Capacity
In this eld, the capacity of the installed batteries is selected. Choose the capacity of a single battery included in your
array. For example, for a 4 x5 Ah array – choose 5. From this, the system will calculate the reference charge current and
battery resistance values.
