Example System Configurations
Dolby Atmos Mixing Configuration with Sync X as Video Reference Source

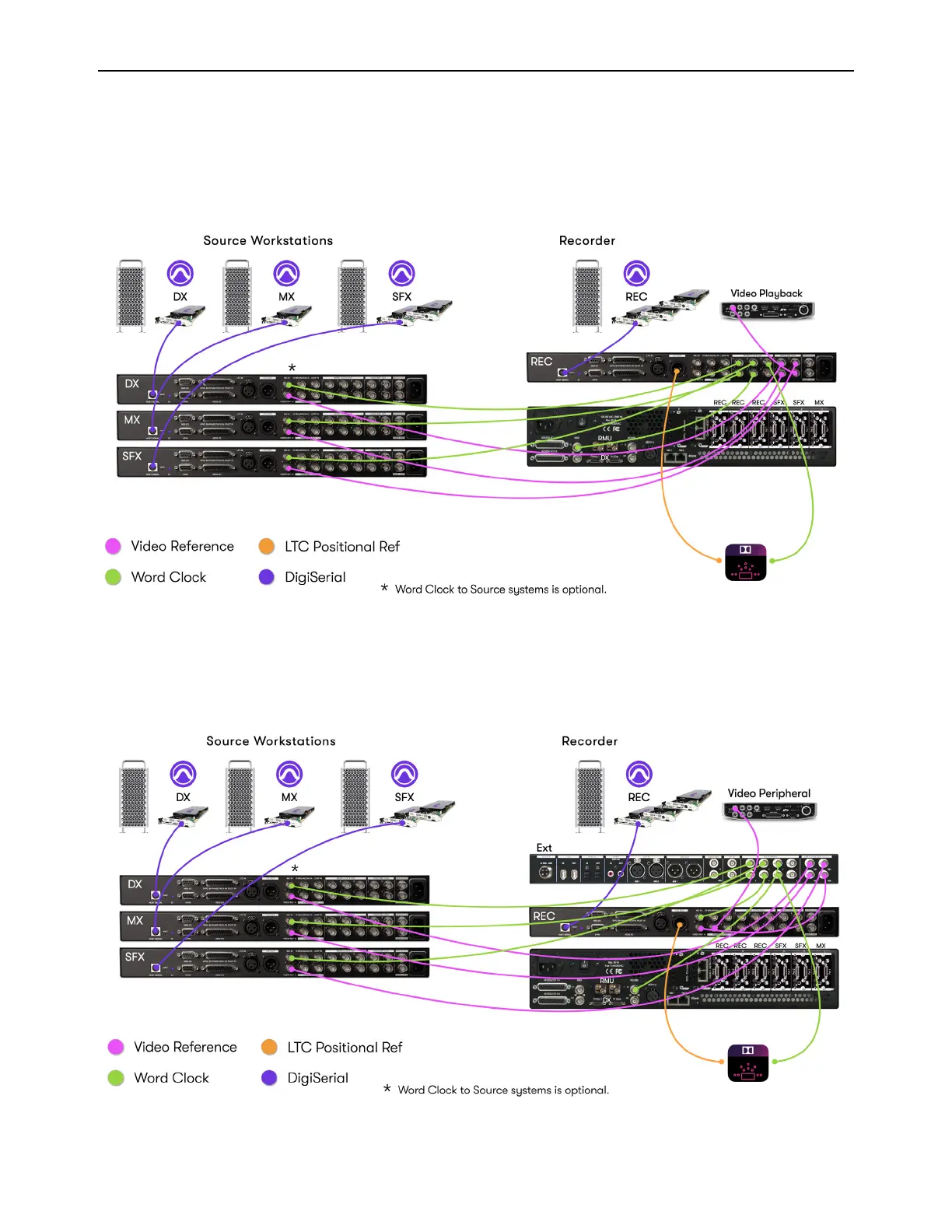

The following diagram shows an example of a Dolby Atmos mixing configuration using multiple Pro Tools Satellite systems, each
with its own Sync X. In this case, the Recorder system Sync X provides Video Reference, Word Clock, and LTC Positional Ref-
erence for the other systems.
Dolby Atmos Mixing Configuration with External Video Reference Source
The following diagram shows another example of a Dolby Atmos mixing configuration using multiple Pro Tools Satellite systems,
each with its own Sync X. In this case, each Pro Tools system is locked to external video reference and external clock source.
Sync X on recorder system providing clock (Internal) and video reference (Internal) to source workstation Sync X units
Sync X on recorder system and Sync X units on source workstations receiving external clock and video reference
