6-10
6.2.6 Removing the 2 Sensor Units on the front case
1. Remove the ADF Front Cover as described in the preceding section 6.2.5.

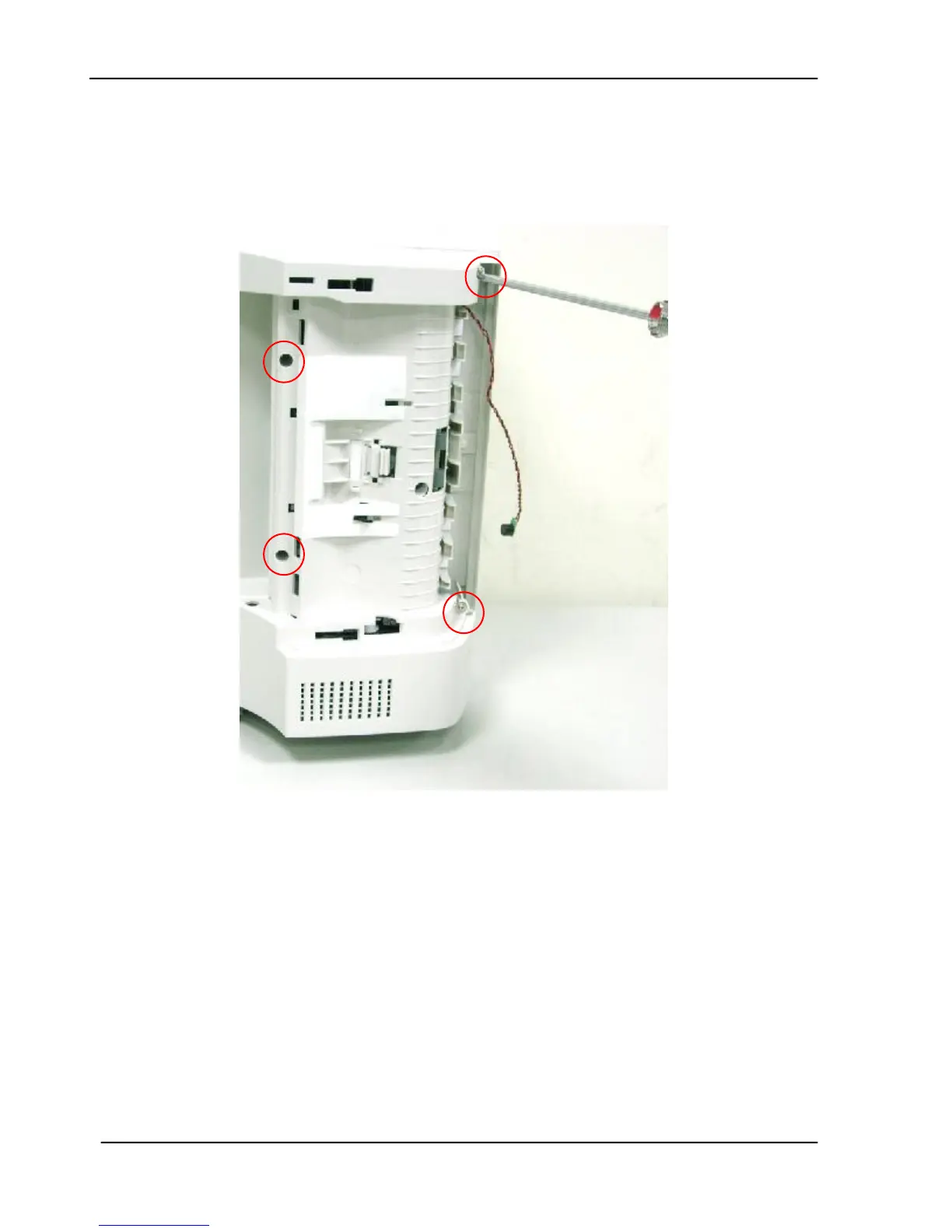

2. Remove the 4 fixing screws on the upper base assembly.
