Avision @V6600 - Removing the Metal Plate

Service Manual
6-43

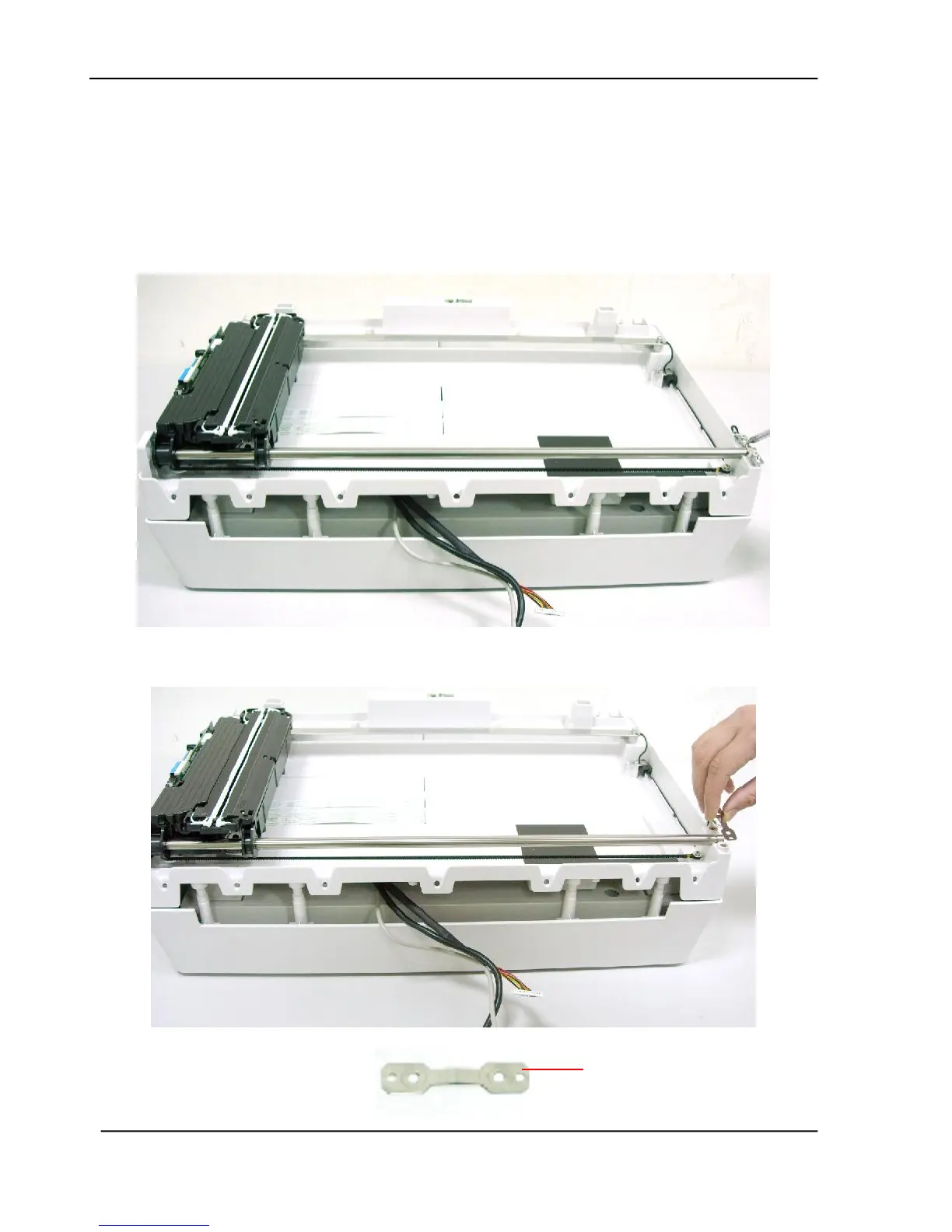

6.2.22 Removing the Metal Plate
1. Remove the Hinge as described in the preceding section 6.2.12.
2. Remove the Rubber Cap as described in the preceding section 6.2.20.
3. Remove the Upper Housing as described in the preceding section 6.2.21.
4. Remove the 2 fixing screws on the metal plate fixing the sliding rod.
5. Remove the metal plate to release the sliding rod.
Metal Plate
