6-22
6.2.11 Removing ADF Motor
1. Remove the ADF Front Cover as described in the preceding section 6.2.5.

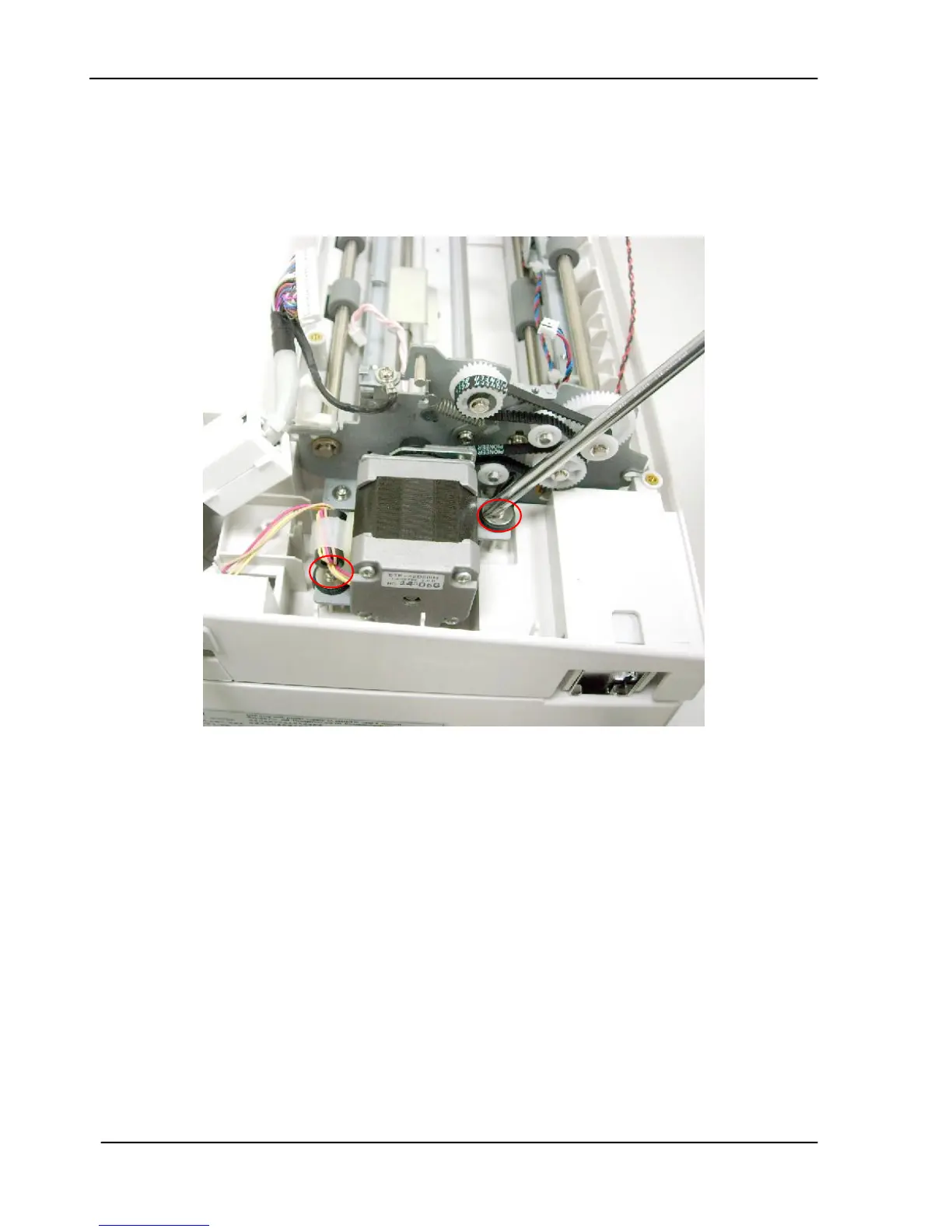

2. Remove the 2 fixing screws on the ADF motor.
