6.2.27 Removing the Inverter
1. Remove the Hinge as described in the preceding section 6.2.12.
2. Remove the Rubber Cap as described in the preceding section 6.2.20.
3. Remove the Upper Housing as described in the preceding section 6.2.21.
4. Remove the Metal Plate as described in the preceding section 6.2.22.
5. Remove the Sliding Rod as described in the preceding section 6.2.23.
6. Remove the Flatbed Chassis as described in the preceding section 6.2.24.
7. Remove the Chassis Cover as described in the preceding section 6.2.25.

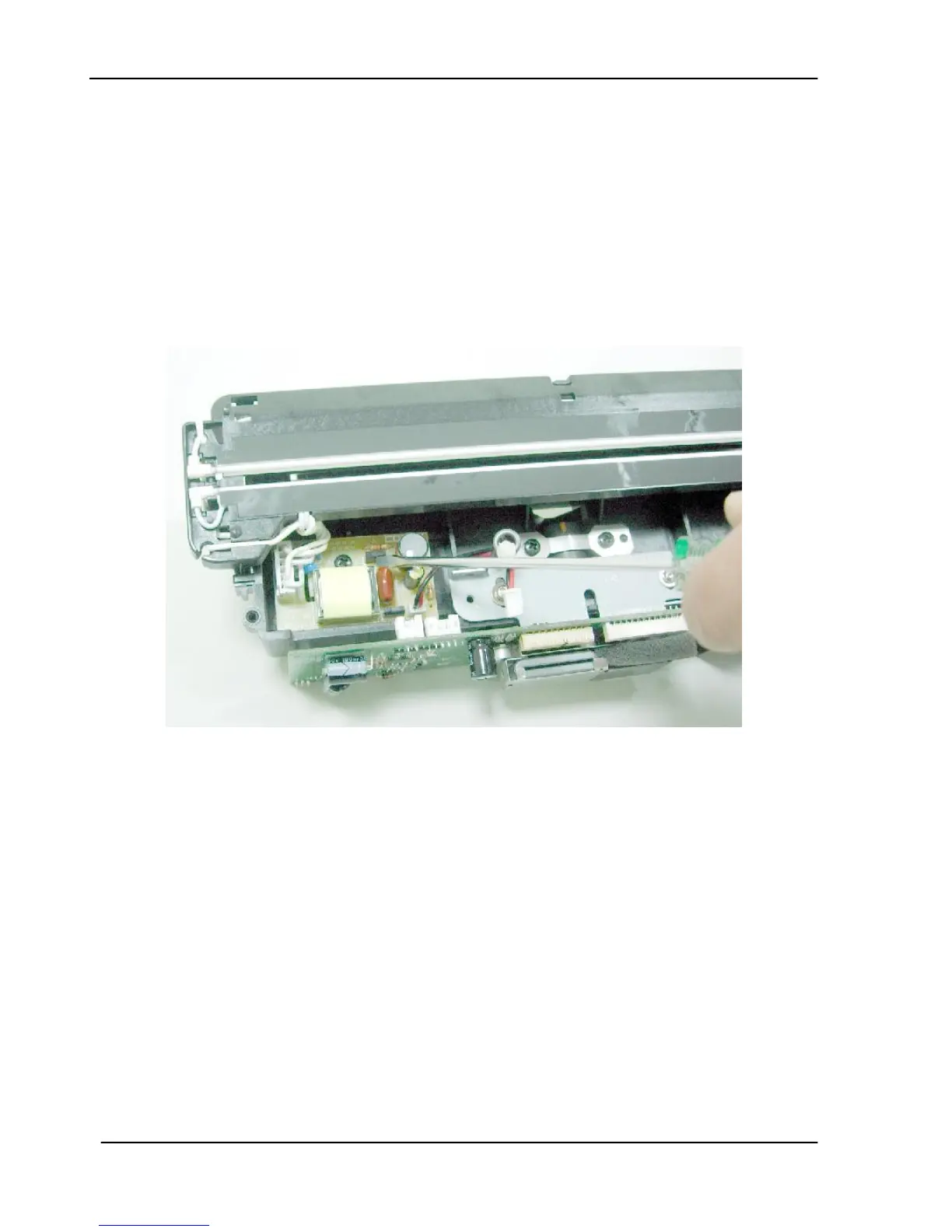

8. Remove the 1 fixing screw on the inverter.
9. Unplug the cable to remove the inverter.
