6.2.28 Removing the Lamp Assembly
1. Remove the Hinge as described in the preceding section 6.2.12.
2. Remove the Rubber Cap as described in the preceding section 6.2.20.
3. Remove the Upper Housing as described in the preceding section 6.2.21.
4. Remove the Metal Plate as described in the preceding section 6.2.22.
5. Remove the Sliding Rod as described in the preceding section 6.2.23.
6. Remove the Flatbed Chassis as described in the preceding section 6.2.24.
7. Remove the Chassis Cover as described in the preceding section 6.2.25.
8. Remove the Inverter as described in the preceding section 6.2.27.

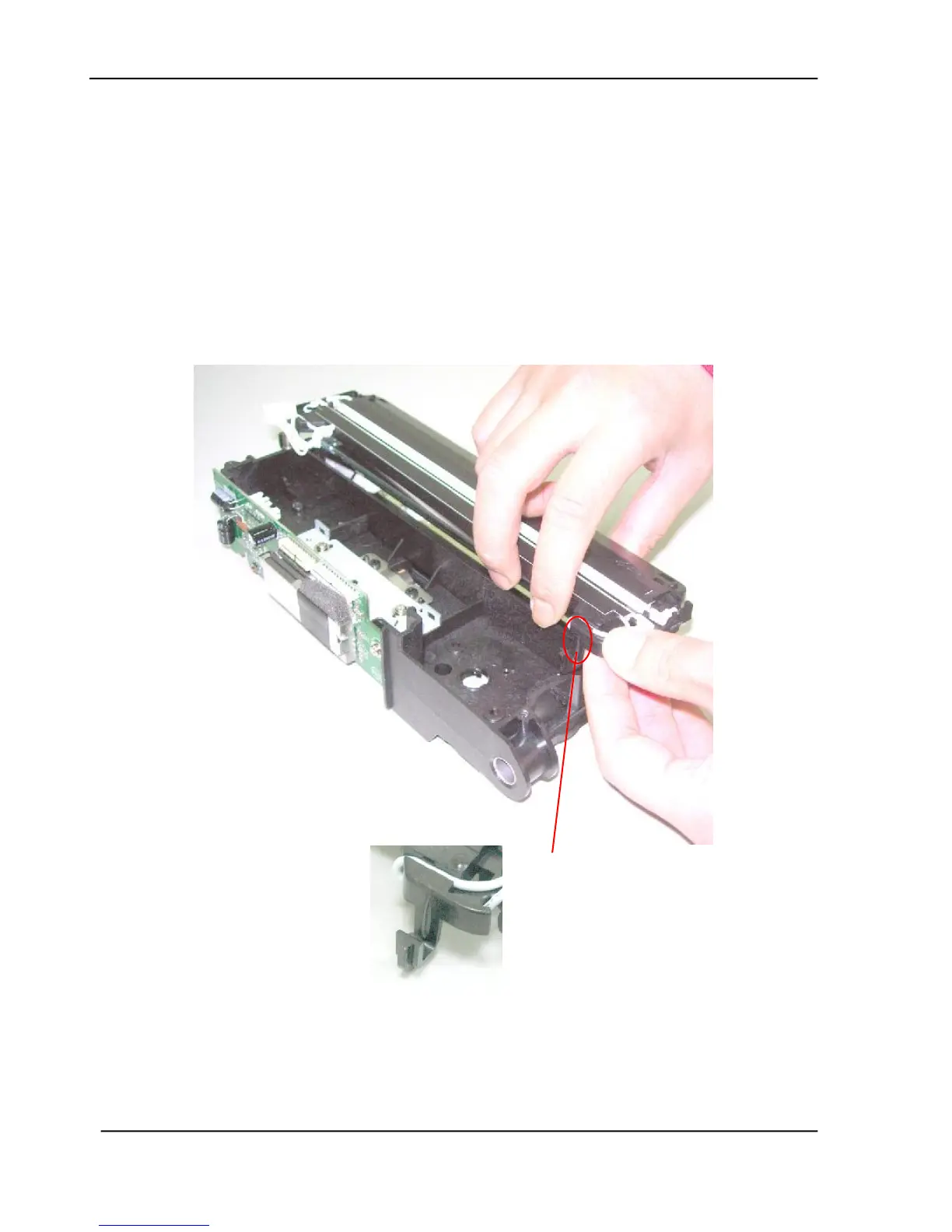

9. Open the lamp holder hook from the chassis to remove the lamp assembly.
