6.2.26 Removing the Motor
1. Remove the Hinge as described in the preceding section 6.2.12.
2. Remove the Rubber Cap as described in the preceding section 6.2.20.
3. Remove the Upper Housing as described in the preceding section 6.2.21.
4. Remove the Metal Plate as described in the preceding section 6.2.22.
5. Remove the Sliding Rod as described in the preceding section 6.2.23.
6. Remove the Flatbed Chassis as described in the preceding section 6.2.24.
7. Remove the Chassis Cover as described in the preceding section 6.2.25.

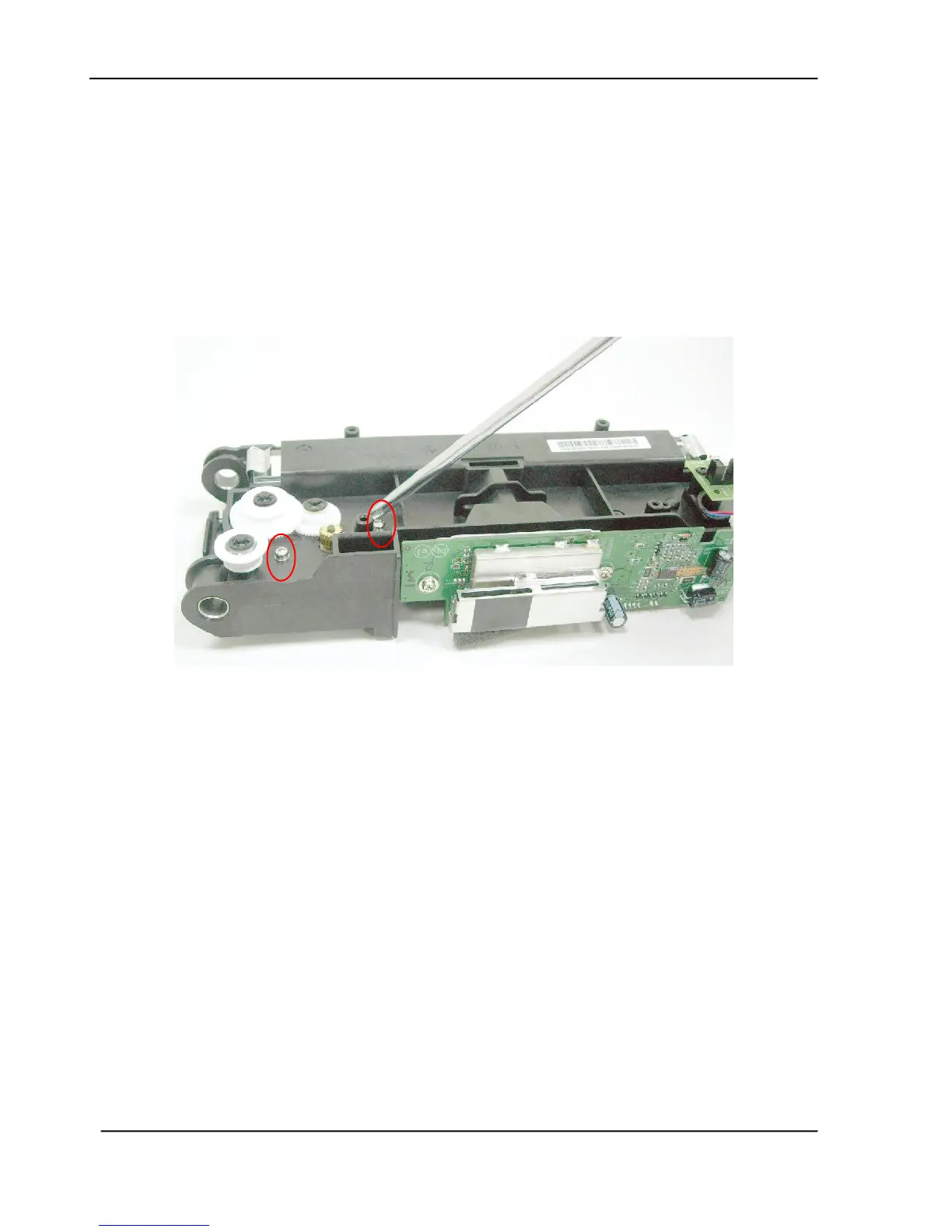

8. Remove the 2 fixing screws on the flatbed chassis.
9. Cut off the bondage fixing the motor cable.
