6.2.12 Removing the Hinge

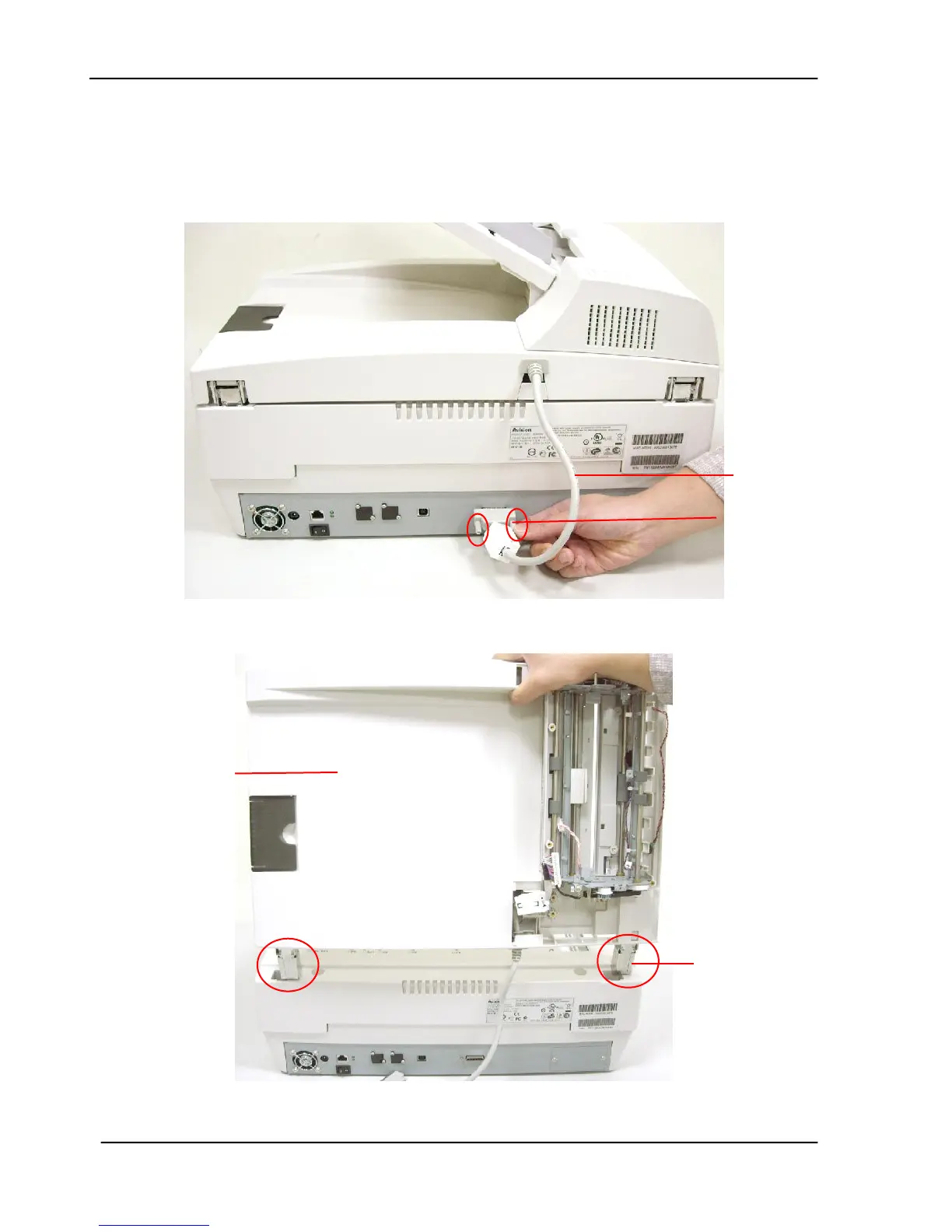

1. Turn on the 2 ADF cable screws, and then unplug the ADF cable.
2. Lift the document cover to remove the hinges from the hinge holes.
ADF Cable Screw
ADF Cable
Hinge
Document Cover
