Avision @V6600 - Removing the Back Cover of the Panel

6-38
6.2.19 Removing the Back Cover of the Panel
1. Remove the Hinge as described in the preceding section 6.2.12.
2. Remove the Name Plate as described in the preceding section 6.2.16.
3. Remove the Panel Main Board as described in the preceding section 6.2.17.
4. Remove the Panel Screen as described in the preceding section 6.2.18.

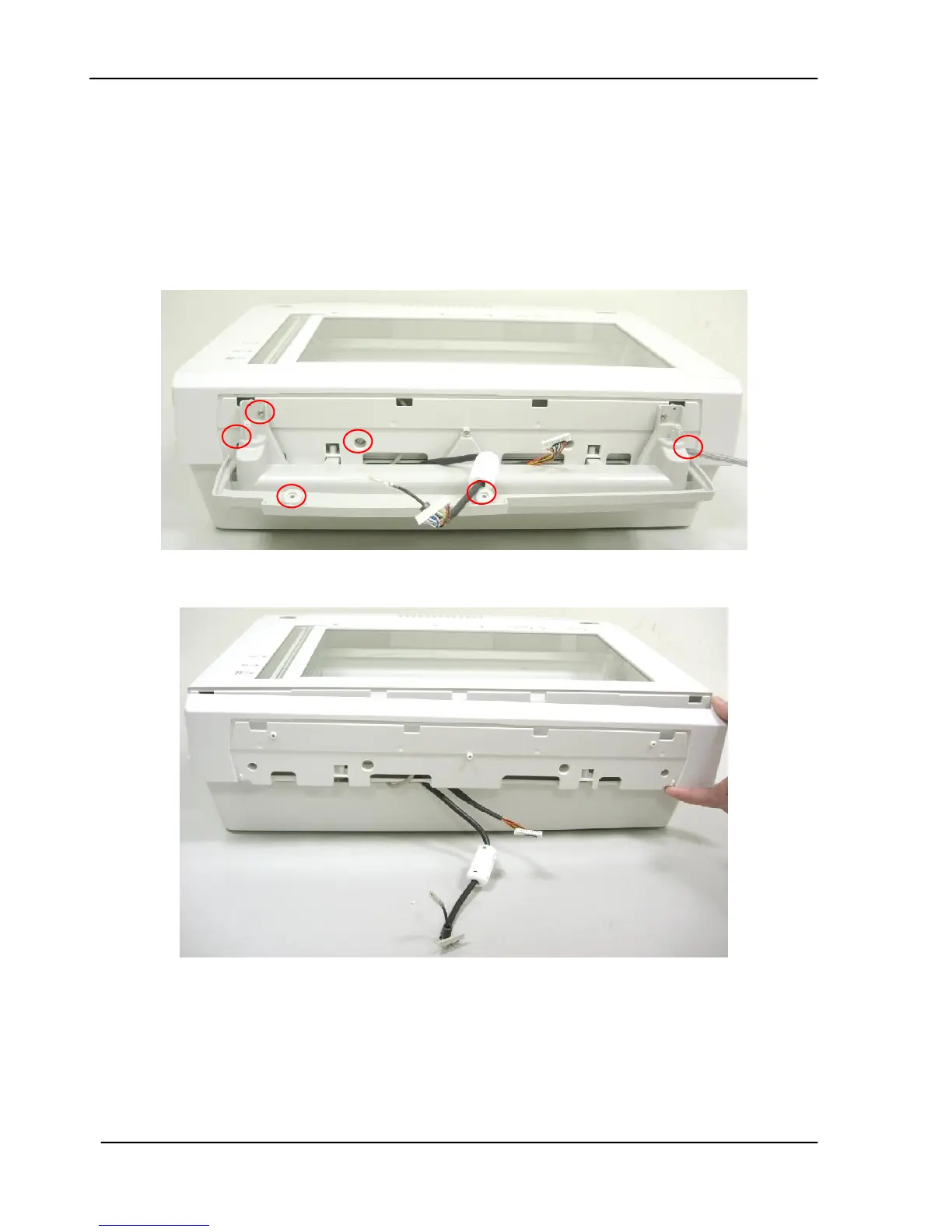

5. Remove the 7 fixing screws on the bottom of panel assembly.
6. Open the back cover of the panel.
