6.2.25 Removing the Chassis Cover
1. Remove the Hinge as described in the preceding section 6.2.12.
2. Remove the Rubber Cap as described in the preceding section 6.2.20.
3. Remove the Upper Housing as described in the preceding section 6.2.21.
4. Remove the Metal Plate as described in the preceding section 6.2.22.
5. Remove the Sliding Rod as described in the preceding section 6.2.23.
6. Remove the Flatbed Chassis as described in the preceding section 6.2.24.

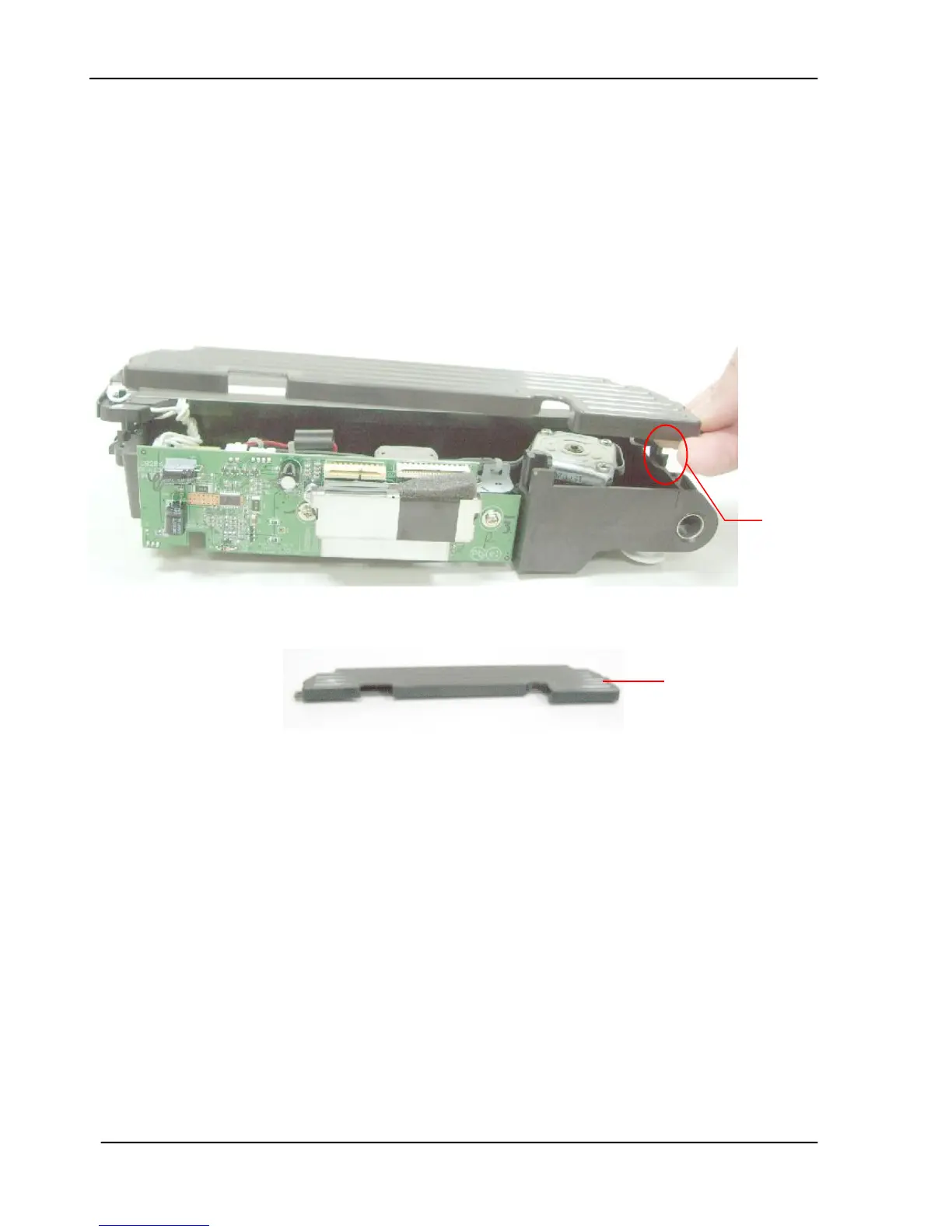

7. Remove the chassis cover by releasing the hooker.
