Now, we are going to analyse a normal call ( in example with the internal telephone hybrid):
In the presence of an incoming call, the F1 button starts blinking.
By pressing F1 two times it will hook the call.
- F1 LED off – the line is not hooked.
- F1 LED blinks – RING – there is an incoming call.
- F1 LED on – the line is hooked.
By pressing F1 again also two times you drop the line.
NOTE:
The behaviour of (RING/HOOK) is the same for the three interfaces (TELCO, BLUETOOTH, HYBRID).

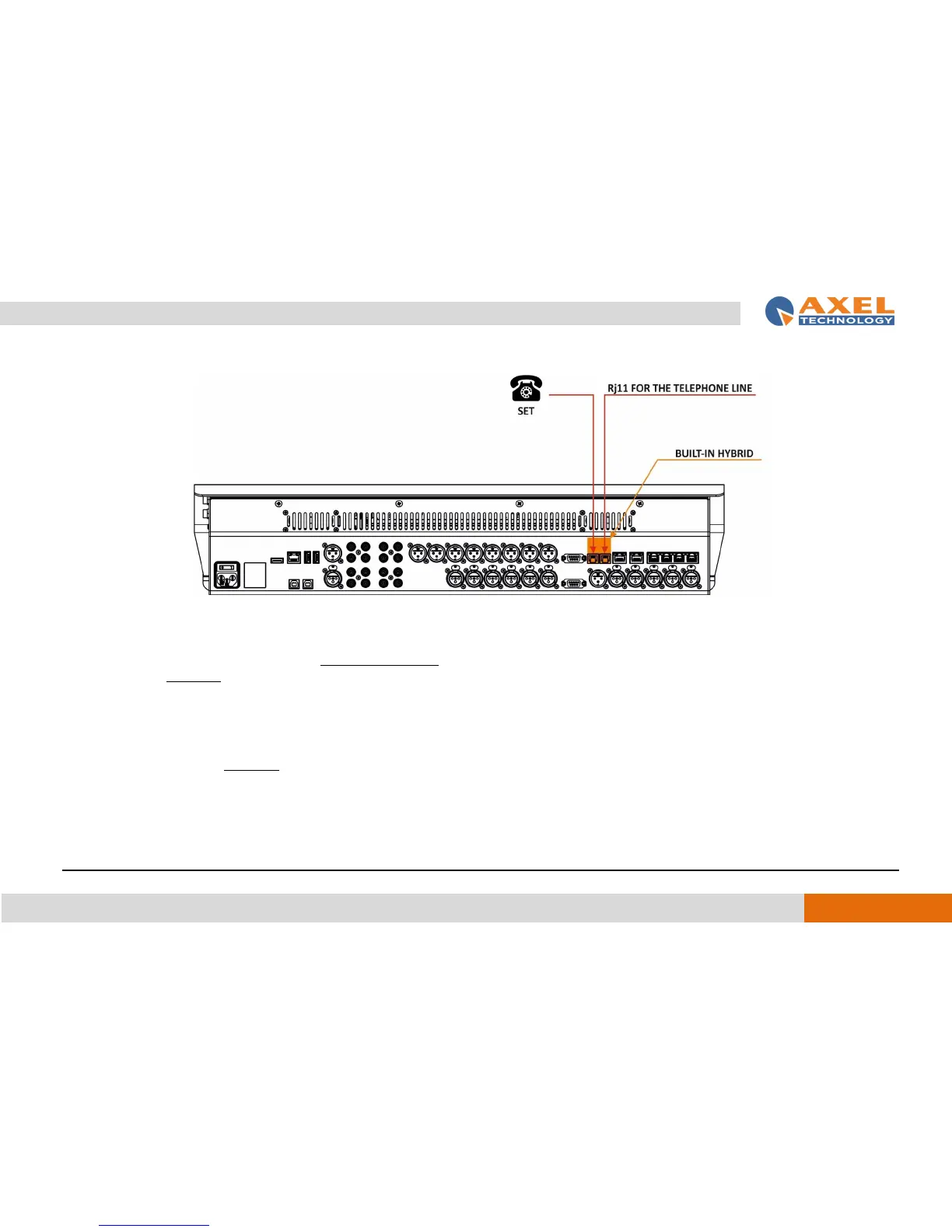

If you use the internal telephone hybrid you have to manage some settings of Tel Set*.
It is inactive in version 2.1.0.6 and previous releases.
