SURFACE |CONTROL INPUT CHANNEL

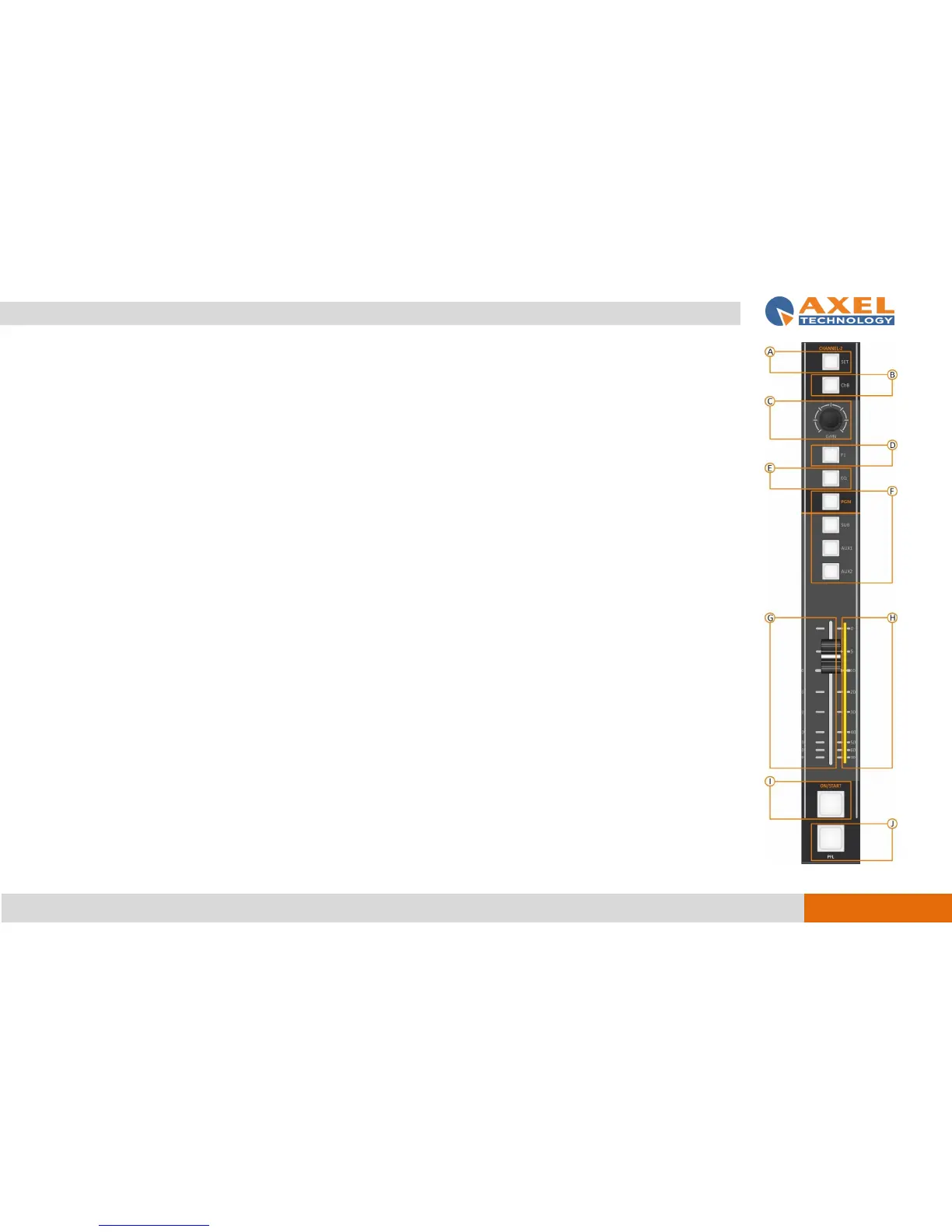

2.3 CONTROL INPUT CHANNEL
A.
SET – BUTTON TO SET CHANNEL PARAMETERS.
B.
CHB – BUTTON FOR THE SOURCE SWITCHING BETWEEN THE PRIMARY SOURCE (A) AND THE SECONDARY (B).
C.
GAIN – KNOB TO ADJUST THE INPUT SOURCE LEVEL OF THE SIGNAL.
D.
F1 – BUTTON TO ENABLE/DISABLE THE ASSOCIATED FUNCTION ( Telephone / Telco).
E.
EQ – BUTTON TO ENABLE OR TO SET THE EQUALIZER.
F.
PGM – BUTTON TO ENABLE THE PGM BUS.
SUB – BUTTON TO ENABLE THE SUB BUS.
AUX-1 – BUTTON TO ENABLE THE AUX-1 BUS.
AUX-2 – BUTTON TO ENABLE THE AUX-2 BUS.
G.
FADER – THE FADER ALLOWS THE SOURCE LEVEL ATTENUATION.
H.
FADER LED BAR – IT INDICATES THE ATTENUATION AND THE SOURCE TYPE.
I.
ON/START – BUTTON TO SWITCH ON/OFF THE SELECTED SOURCE.
J.
PFL – BUTTON TO ENABLE THE PFL BUS.
