2.1 INPUT LED METER
A. The LED level meters display the audio signal input on the channel (audio presence).
The LED level meters has a 10dB resolution, from -50 to +10dB.
The level is PRE-GAIN, the GAIN action has no effect on the displayed level.
B. CLIP LED
The lighting of the LED indicates a source level too high.
This condition saturates the signal and creates audio distortions.
ACTION TO BE TAKEN: turn down the input source level.

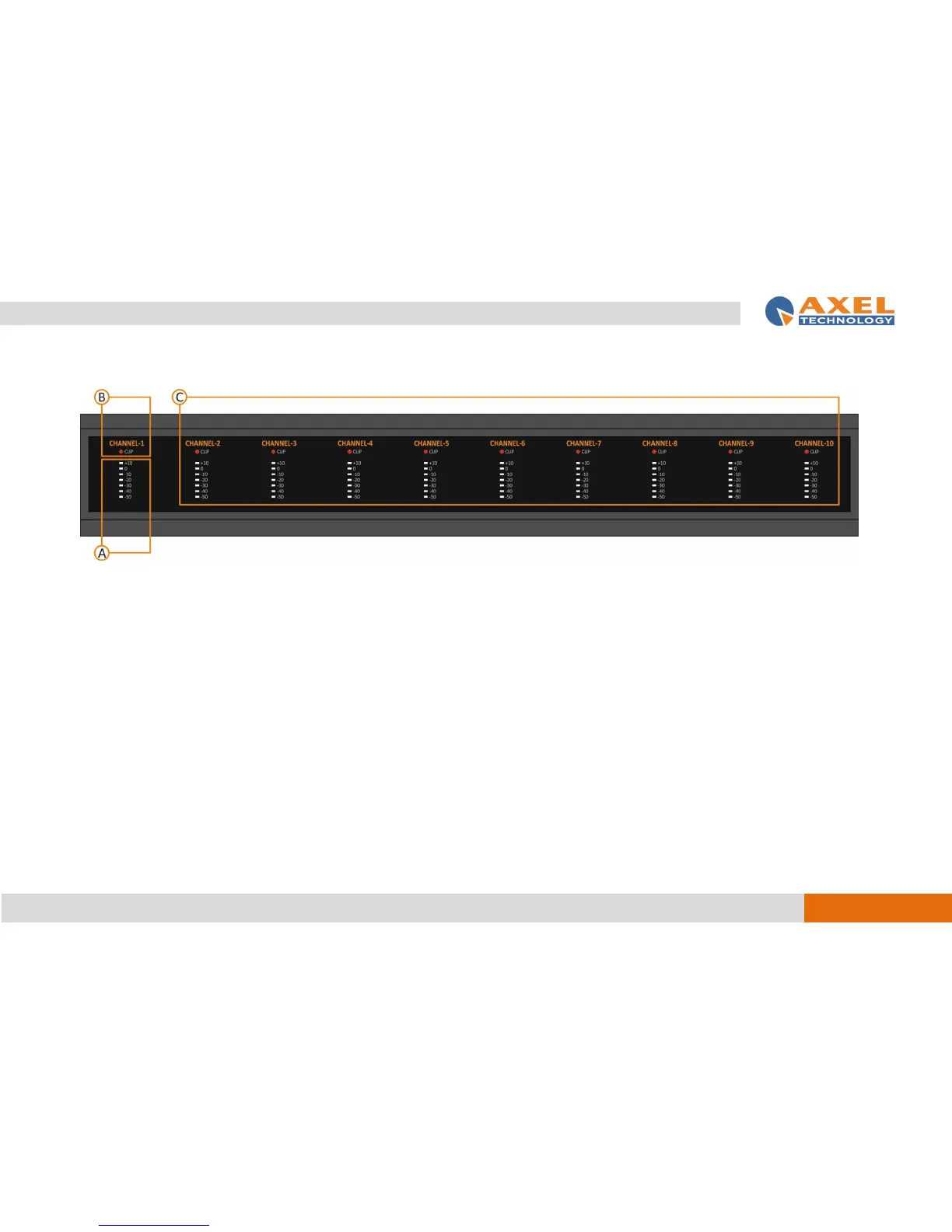

C. Sources level meters and clip LEDs of the 10 channels.
