B. CONTROL ROOM – HEADPHONES SOURCES & LEVEL
- This section is used for the management of the headphone’s Level for the Control Room.
- The rotary control knobs allow you to amplify/attenuate the selected signal in the headphone.
- The headphone audio level goes from 0 to 99. 99 is the maximum allowed level.
- The step of the headphone adjustment is 1 dB and the level goes from -80 dB to the maximum
of +19dB.
- By setting the level on 80 dB we will have a total output level of 0dB.

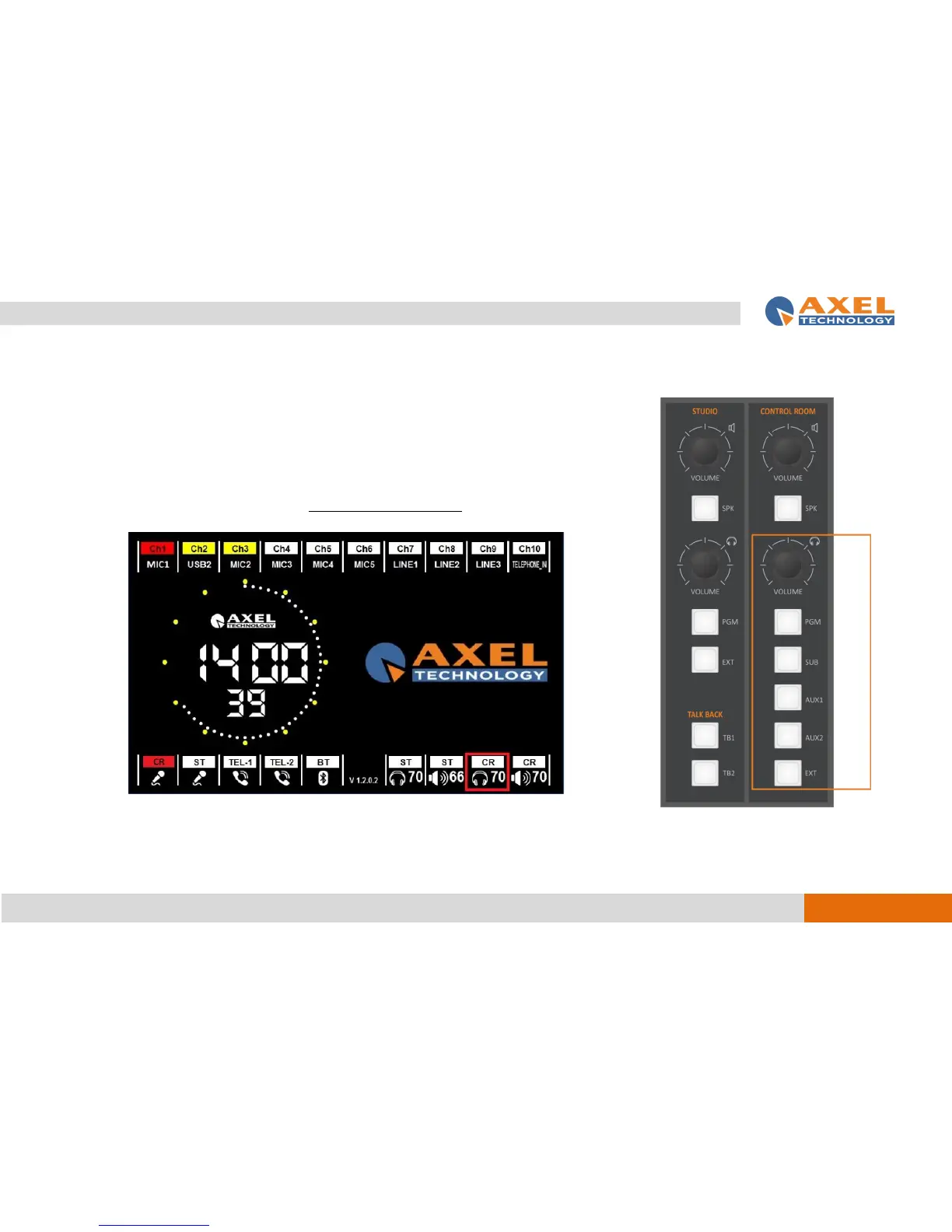

- The headphone’s level is displayed in the bottom-right section of LCD.
