GENERAL DESCRIPTION |TALK BOX CONNECTIONS

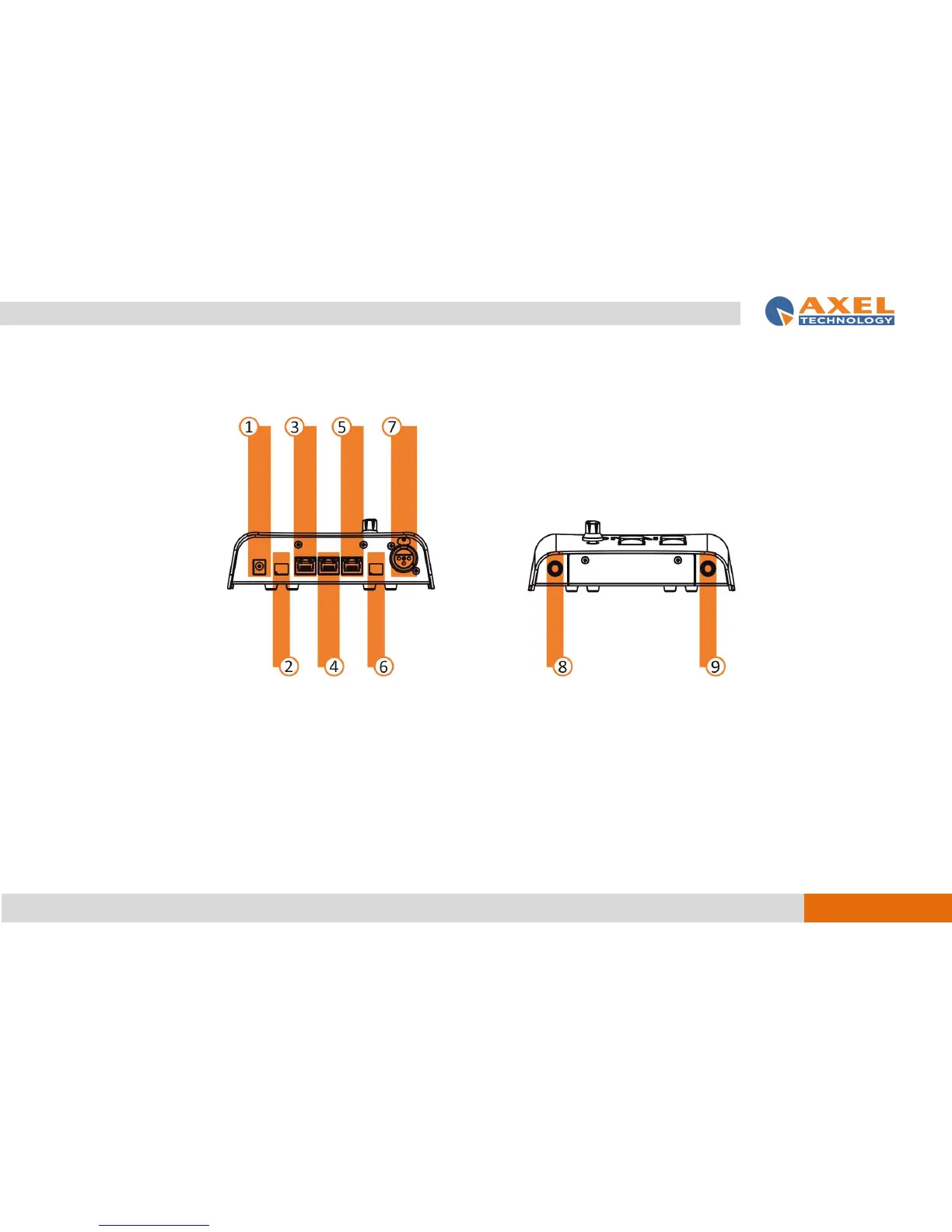

1.7 TALK BOX CONNECTIONS
1. Power Supply
12VDC 1A
2. Studio Light
Screw Connector - (12VDC output).
3. HDP Output
RJ45 Connectors (SFTP) - (Passive Loop Output).
4. HDP Input
RJ45 Connectors (SFTP).
5. Talk Box Connection
RJ45 Connectors (SFTP) - (Passive Loop Output).
6. Mic Light
Screw Connector - (12VDC output).
7. Mic Input
XLR Female Connector.
8. HDP-1-TBox
Jack 6.3mm Female Connector - (Min. Imp. 32Ω).
9. HDP-2-TBox
Jack 6.3mm Female Connector - (Min. Imp. 32Ω).
