GENERAL DESCRIPTION |OUTPUT CONNECTIONS

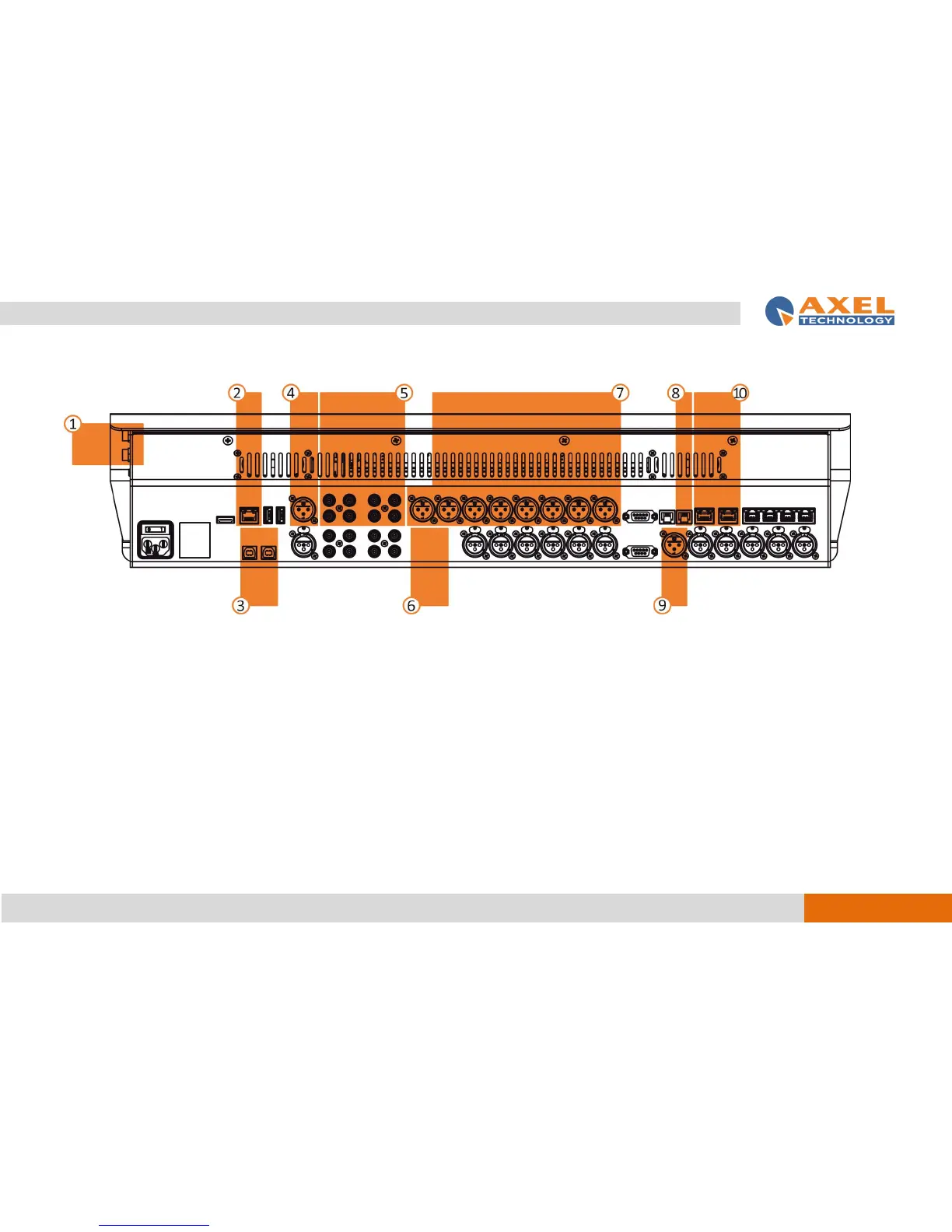

1.5 OUTPUT CONNECTIONS
1.
Headphones
C-Room and Headphones Studio Stereo Output - Jack 6.3mm -
Unbalanced Audio Connection (nominal 32Ω).
6.
Bluetooth
Bluetooth Stereo/Mono Output - Wireless – Smartphone.
2.
Ethernet Output
RJ45 - Internet Connections.
7.
PGM, SUB, AUX-1, AUX-2
4 Stereo Output - XLR Male - Balanced Audio Connection (47Ω).
3.
USB-1, USB-2
2 USB Audio Card USB -Type B - PC Connections.
8.
Telephone
Analog Telephone Line - RJ11 - PSTN Interface.
4.
Digital Out
AES/EBU Stereo Output - XLR Male - Balanced Digital Connection
(110Ω).
9.
Telco
Mono Output - XLR Male - Balanced Audio Connection (47Ω).
5.
REC-1, REC-2, SPK C-ROOM, SPK STUDIO
4 Stereo Output - PIN RCA - Unbalanced Audio Connections.
10.
HDP-STUDIO, HDP-GUEST
Talk Box Output - RJ45 (SFTP Cable) - Balanced Audio (Studio & Guest
Headphone).
