GENERAL DESCRIPTION |COMMUNICATION CONNECTIONS
OXYGEN 3000 · User Manual · ENG

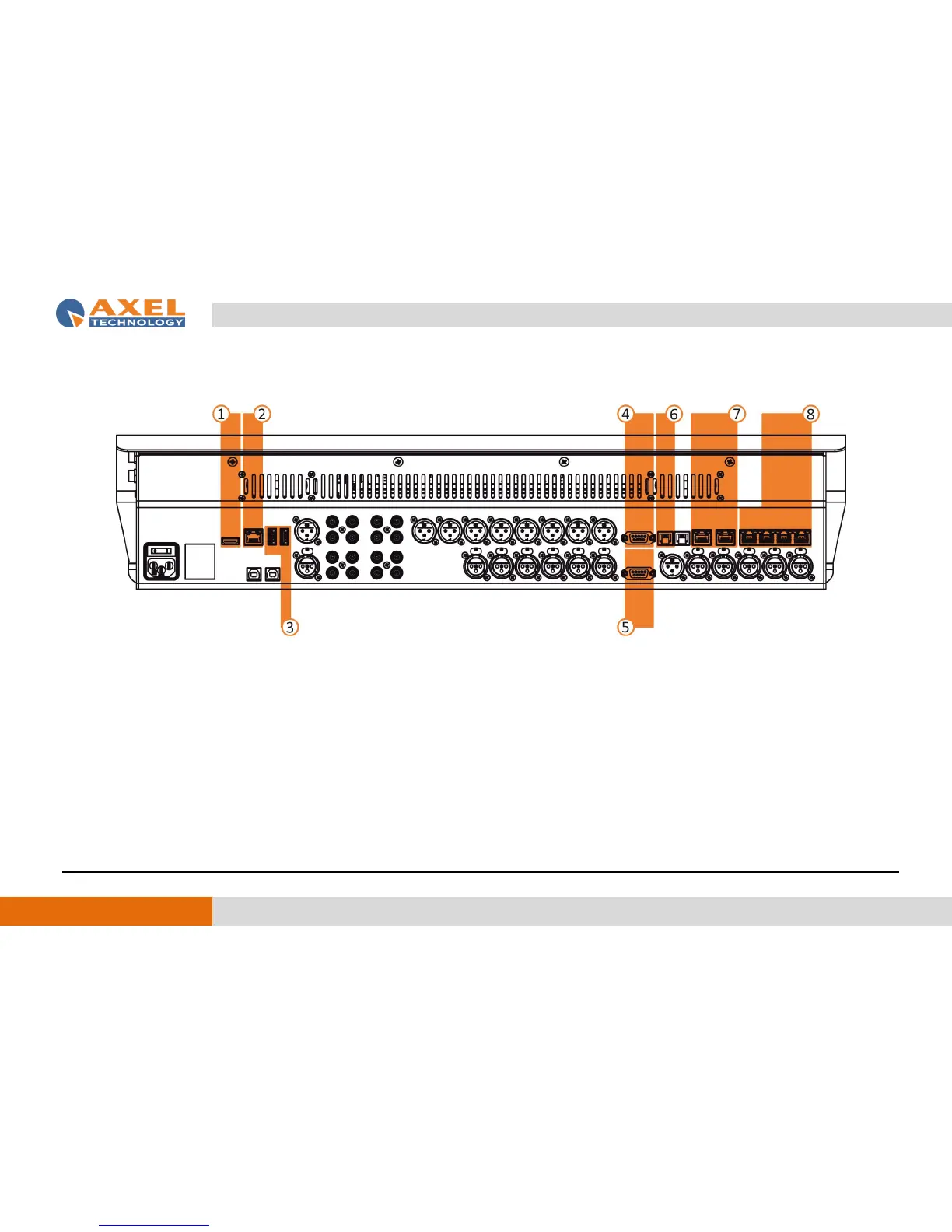

1.6 COMMUNICATION CONNECTIONS
It is unable to use in version 2.1.0.6 and previous releases.
1. HDMI Output*
Standard HDMI Female Connector - External Monitor.
2. Ethernet
RJ45 Female Connector - Remote control.
3. USB-1, USB-2
Two USB Type A Female Connectors - External USB Devices.
4. GPIO-2
SUB-D 9p Female - 2 GPI + 2 GPO.
5. GPIO-1
SUB-D 9p Female - 2 GPI + 2 GPO.
6. Tel Set
RJ11 (PSTN Interface).
7. TBox-HDP-STUDIO, TBox-HDP-GUEST
2 RJ45 (SFTP Cable) - n° 1 GPO Connection.
8. TBox-MIC-2, TBox-MIC-3, TBox-MIC-4, TBox-MIC-5
4 RJ45 (SFTP Cable) - n° 2 GPI Connections + n° 1 GPO Connection.
