32
SURFACE |OUTPUT LED METER
OXYGEN 3000
· User Manual · ENG
2.2
OUT
PUT
LED
METER
A.

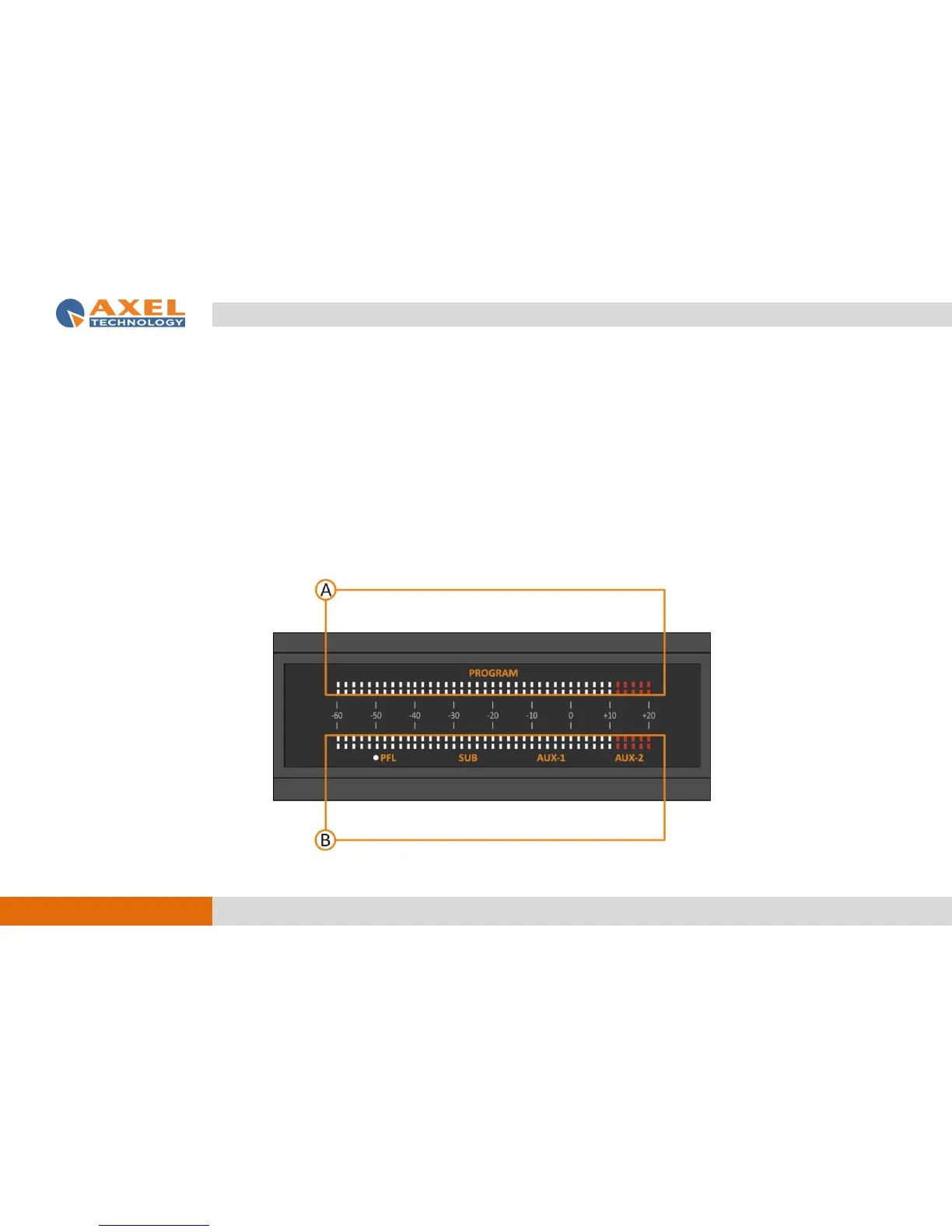

LEDs Meter of the Program output signal (PGM).
The LEDs Meter has a resolution of 2dB, from -60 to +20dB.
The level is POST-GAIN, the PGM GAIN has effects on the displayed level.
B.
LED Meter of the signal of the output PFL/SUB/AUX-1/AUX-2/MONITORSELECTION.
The LED Meter has a resolution of 2dB, from -60 to +20dB.
The level is POST-GAIN, the BUS GAIN has effects on the displayed level.
31
33
Table of Contents
Table of Contents
2
Safety Warnings/Istruzioni Per la Sicurezza
6
Preface
7
Safety Warnings
8
Consignes de Sécurité Importantes
10
Istruzioni Importanti Per la Sicurezza
12
Wichtige Sicherheitshinweise
15
Instrucciones Importantes de Seguridad
17
Unpacking and Inspection
19
First Installation Recommendations
20
Power Supply Cable
20
Protection against Lightning
20
Oxygen 3000 Installation Note and First Step
21
Best Setup Location
21
Introduction
22
General Description
23
Mixer Dimensions
23
Talkbox Dimensions
24
Cutting Template
25
Input Connections
26
Output Connections
27
Communication Connections
28
Talk Box Connections
29
Surface
30
Input Led Meter
31
Output Led Meter
32
Control Input Channel
35
Set Button
36
Chb Button
37
Gain
38
F1 Button
39
Eq Button
40
Pgm/Sub/Aux-1/Aux-2 Buttons
41
Fader
42
Fader Led Bar
42
On/Start Button
43
Pfl Button
45
Special Function Buttons
47
Output Button
47
Meter Button
48
Telephone
50
Bluetooth
50
Monitors Section
51
Control Room Speakers Sources & Level - Cut Function
51
Control Room - Headphones Sources & Level
55
Studio - Speakers
58
Studio - Headphones Sources & Levels
62
Talk Back - from Control Room to the Studio
65
Smart Key / Jingle Buttons
66
Display 7'' Tft and Control Buttons
66
Color Display 7'' - 800X480 Resolution
66
Buttons for the Menu Navigation
68
Menu Display Parts
69
Encoder for the Menu Navigation
70
Menu
71
Audio/Inputs
71
MIC (MIC-1 to MIC-5)
72
Name
73
Gain
74
Bal/Pan
75
Preamp
76
Phase
77
Phantom 48V
78
Cut / on Air
79
Aux1, Aux2
84
Button Light, Fader Bar Light
86
Input / Telco Input
87
Mono-1 to Mono-10
91
Stereo
94
Name
96
Gain
97
Bal/Pan
98
Aux1, Aux2
102
Button Light, Fader Bar Light
103
Aux-In
104
Tel/Bt
104
Digital
108
Aes/Ebu
108
Usb-1, Usb-2
108
Audio/Seetings/Vjpro
109
Audio/Outputs
110
Analog & Digital Outputs
111
Monitors
112
Aspk-Crm Control Room Speakers
112
Bspk-Studio (Studio Speakers)
116
Chdp-Crm (Control Room Headphones)
120
Dhdp-Studio & Hdp-Guest (Studio and Guests Headphone)
123
Tone Gen. ( Tone Generator )
126
Setting
127
Ext. Input
127
Input Mode
128
General
129
Communications
129
Tcp-Ip
130
Time&Date
132
Time&Date/Date
133
Time
134
Time Zone
135
Ntp Server
136
Light & Display
137
Led Meter
137
Display
137
Firmware
138
Firmware/Version
138
Firmware/Reboot
139
Mixer Firmware Upgrade
139
Talk Box Connections and Functioning
144
Gpio Connections
149
Oxygen 3000 & Mr. Light - Onair Lamp Connection
150
Weee Directive - Informativa Raee
151
Warranty
152
Declaration of Conformity
153
Dichiarazione DI Conformità
154
