Be sure that is no any channel use MIC-5 as a source A/B. it is necessary to change the configuration from MIC-5 to TELCO. If not, you will get an

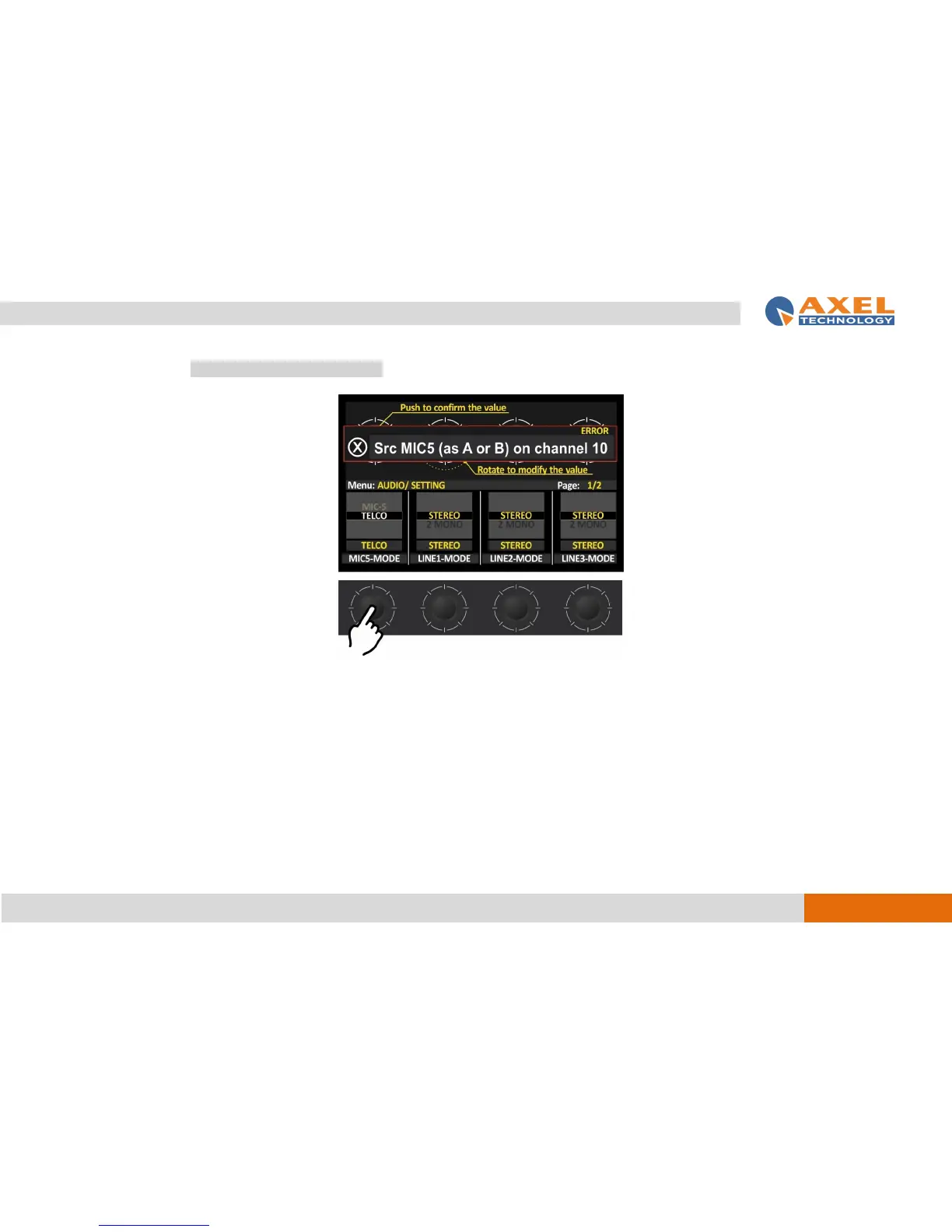

error message. EX: Src MIC5 (as A or B) on channel 10. Observe the next figure.
In this case, just goes to the intended channel source and change it form MIC-5 to empty or any other choice.
To use the internal hybrid in OXYGEN 3000 connect the telephone line to the console RJ11 LINE port and the telephone set to the RJ11
SET port in the console.
If the line is well connected, you have to associate the TELEPHONE IN source to a Mixer Channel. When you will receive a phone call press F1 of the
selected Channel to hook the line.
By pressing PFL of the same source channel you can speak in private to the caller from the selected microphone as a PRIVATE MIC.
If you want to connect the TELCO MODULE with one of the Axel Technology telephone hybrids (BOXTEL MKII, MACROTEL X1 X2, PHONEX D1 D2) Axel
will give you a special DE9P cable.
