18 ENGINEERING DOCUMENTATION
_____________________________________________________________________________________________
1. Three digits of successive measurement number(digits are sending in order
form highest to lowest).
2. Two space characters separating a number from scale indication.
3. Scale indication (as in LONG protocol).
Scanner operation method description (option)
Each time, when the scanner sends the 16-character record, containing the
operator name or code, preceded with the EOT (04H) prefix.

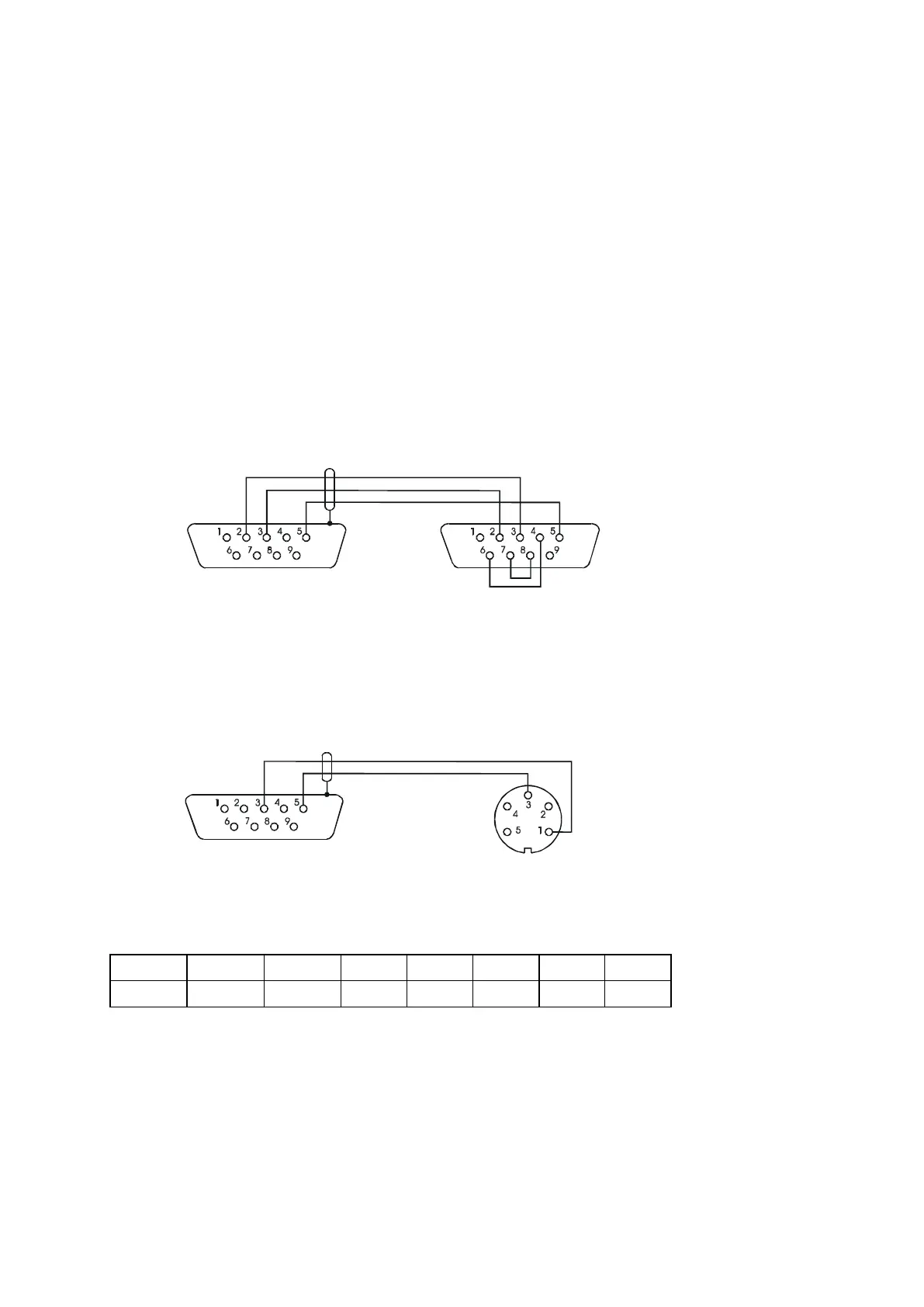

Connecting cable WK-1 (scale – computer / 9-pin):
Computer
Connecting cable WD-1 (scale – Kafka printer):
Internal switches settings of KAFKA printer:
SW-1 SW-2 SW-3 SW-4
SW-5
SW-6
SW-7
SW-8
on off on off off on off off
AXIS offers computer programs for cooperation with scales which description and
demo versions are available on www.axis.pl website. Furthermore a free
program for testing of scale serial interface is also placed there.
