12.17 Function for selecting label number (LAbEL)
The function appears in scales with ELTRON data transmission protocol. This
protocol allows printing scale indication and optionally date and time on label
printer, as variable texts. Other data, e.g. company address, product name, its bar
code can appear on label as constant fields. Label forms used by user, named as a
numeric value (max. 4 digits) should be previously stored in printer memory
according to printer user manual. Choosing label form is performed by entering
label number using LAbEL function.

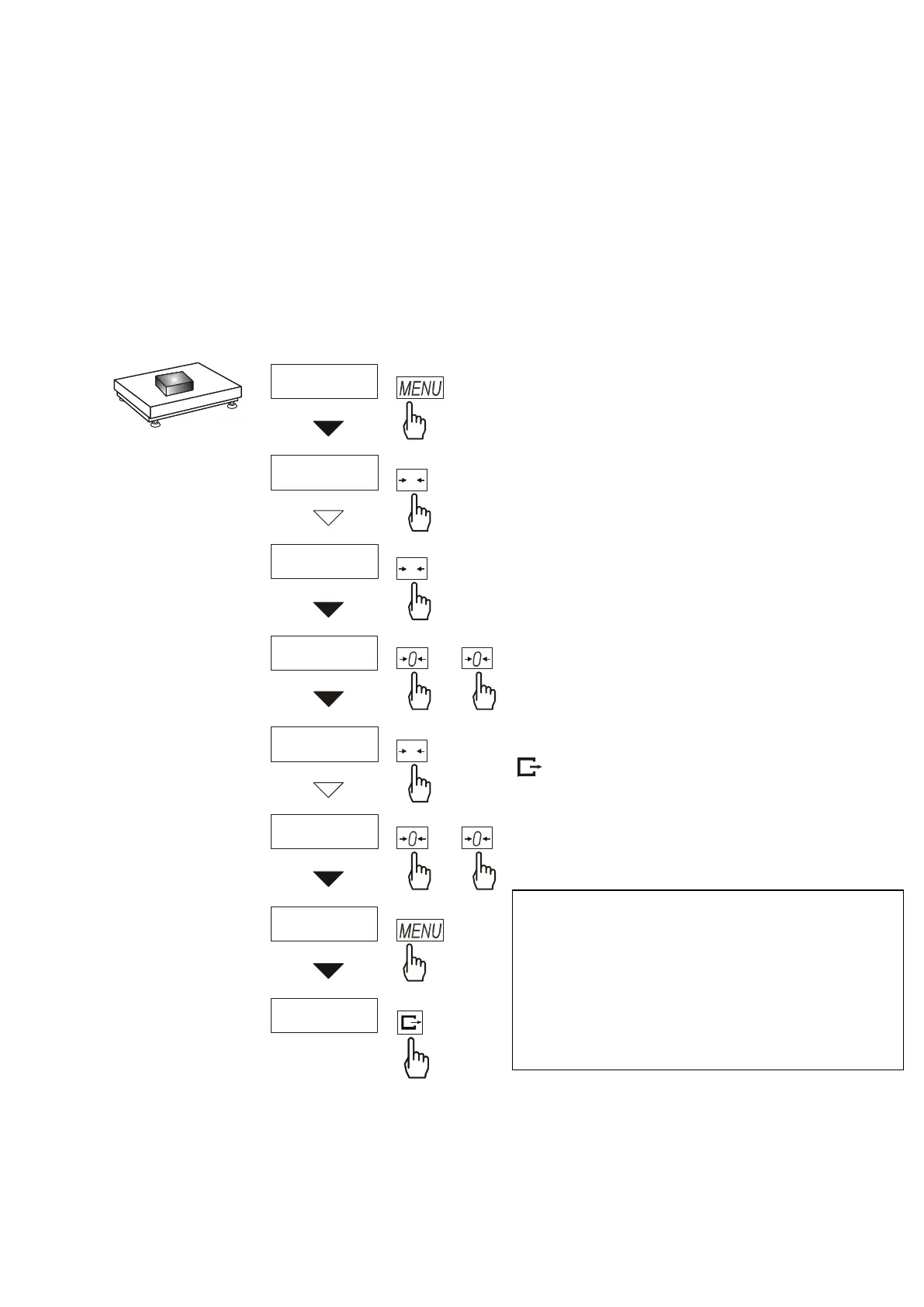

Press MENU key.
When LAbEL is displayed press
→ T ← key.
The following options appear
successively on display:
- LAb-0 – leave without changes,
- LAb-1 – enter label number,
Using → T ← key select LAb- 1.
For entering label number the
following keys should be used:
→ 0 ← - increase digit,
→ T ← - move to next digit,
MENU – finish entering.
After putting load on and pressing
key data is sent to a printer.
Format of data sent to label printer:
US (55 53 0D 0A)
FR"0001" (46 52 22 30 30 30 31 22 0D 0A)
? (3F 0D 0A)
00:00 (30 30 3A 30 30 0D 0A)
2000.00.00 (32 30 30 30 2E 30 30 2E 30 30
0D 0A)
10 g (20 20 20 20 20 31 30 20 20 67 0D
0A)
-
