LSL - allowable lower value,
USL - allowable upper value,
A, B, C, .. – measurement intervals,
n
A
... – amount of measurements in A
interval;
measurement is in A interval if it is
bigger or equal to A interval
threshold and smaller
than B interval threshold.
n
B
... - amount of measurements in B
interval;
measurement is in B interval if it is
bigger or equal to B interval
threshold and smaller
than C interval threshold.
Thresholds are printed under histogram.
-NG - amount of measurements under
allowable lower value
+NG - amount of measurements above
allowable upper value
To finish work with this function and
zeroing result register press F key, then
during "F..-StA" and "F..-0" is displayed,
press → T ← key. This will cause
printing message about register zeroing.
Cooperation between statistics function
with computer and printer.
The scale can be equipped with two
RS232C connections marked as
RS232C-I (computer) and RS232C-II
(printer). After each printer data printout,
identical set of data is send to computer.
After S A CR LF (53h 49h 0Dh 0Ah)
initialization signal is sent by computer,
the scale sends to computer statistical
data contained in histogram
.
Data: ... Hour.
...
SAMPLES = ...
TOTAL MASS = ...
AVER MASS = ...
MIN MASS = ...
MAX MASS = ...
MAX – MIN = ...
S = ...
SREL = ...

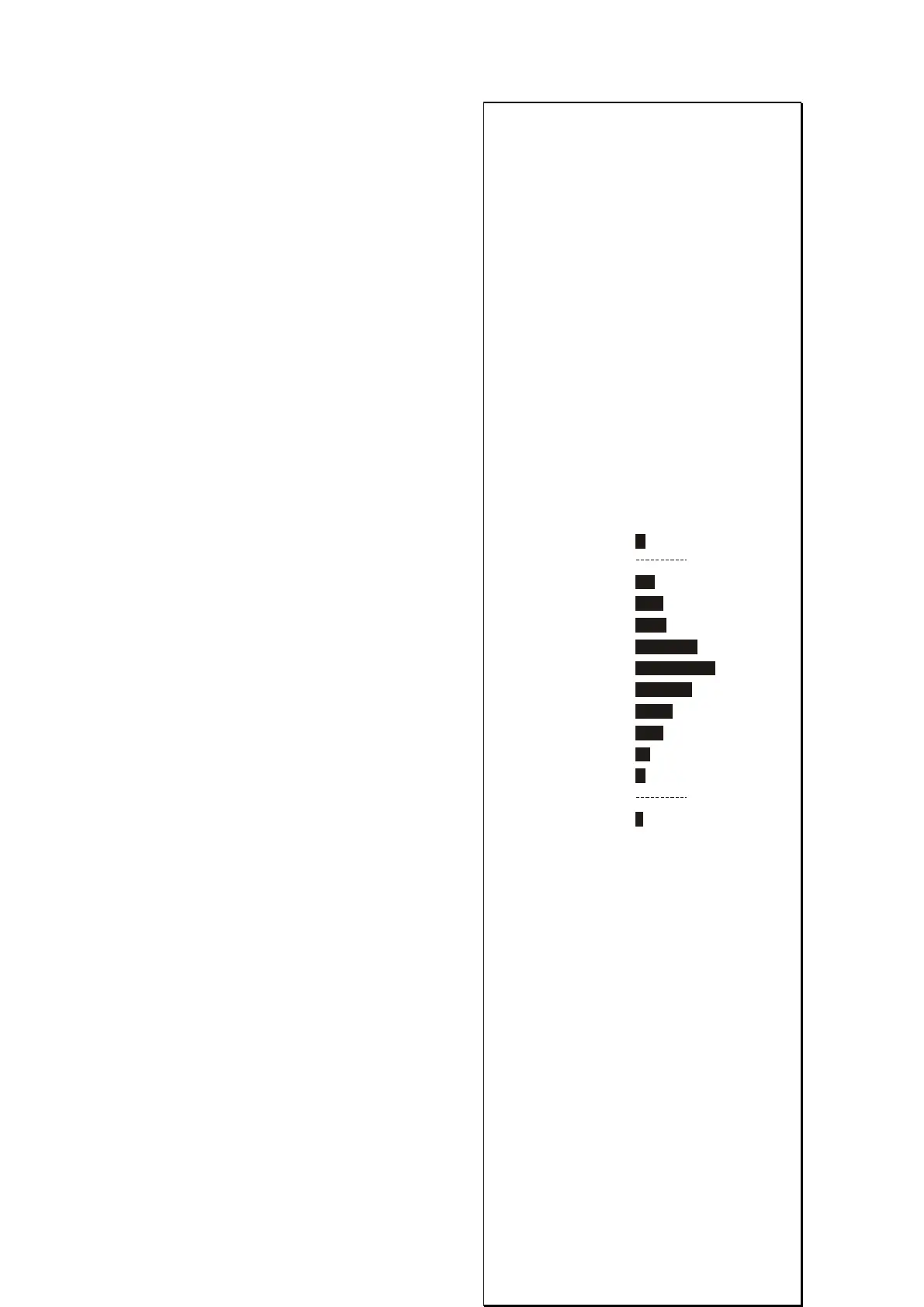

*HISTOGRAM*
LSL ...
USL ...
DIV ...
-NG ...
LSL
A n
A
B n
B
C n
C
D n
D
E n
E
F n
F
G n
G
H n
H
I n
I
J n
J
USL
+NG ...
A ~ ...
B ~ ...
C ~ ...
D ~ ...
E ~ ...
F ~ ...
G ~ ...
H ~ ...
I ~ ...
J ~ ...
...
Measurement made by :
____________
