OmniCare EVC System
Installation & Commissioning Manual
OmniCare issue 1
25
C
O
M
M
U
N
I
C
A
T
I
O
N
S
3. Terminate all cables at the termination board (shown in
Figure 3.4) according to the system designer's specifications
and the legend on the PCB. It is important that each
conductor is correctly identified before being terminated.

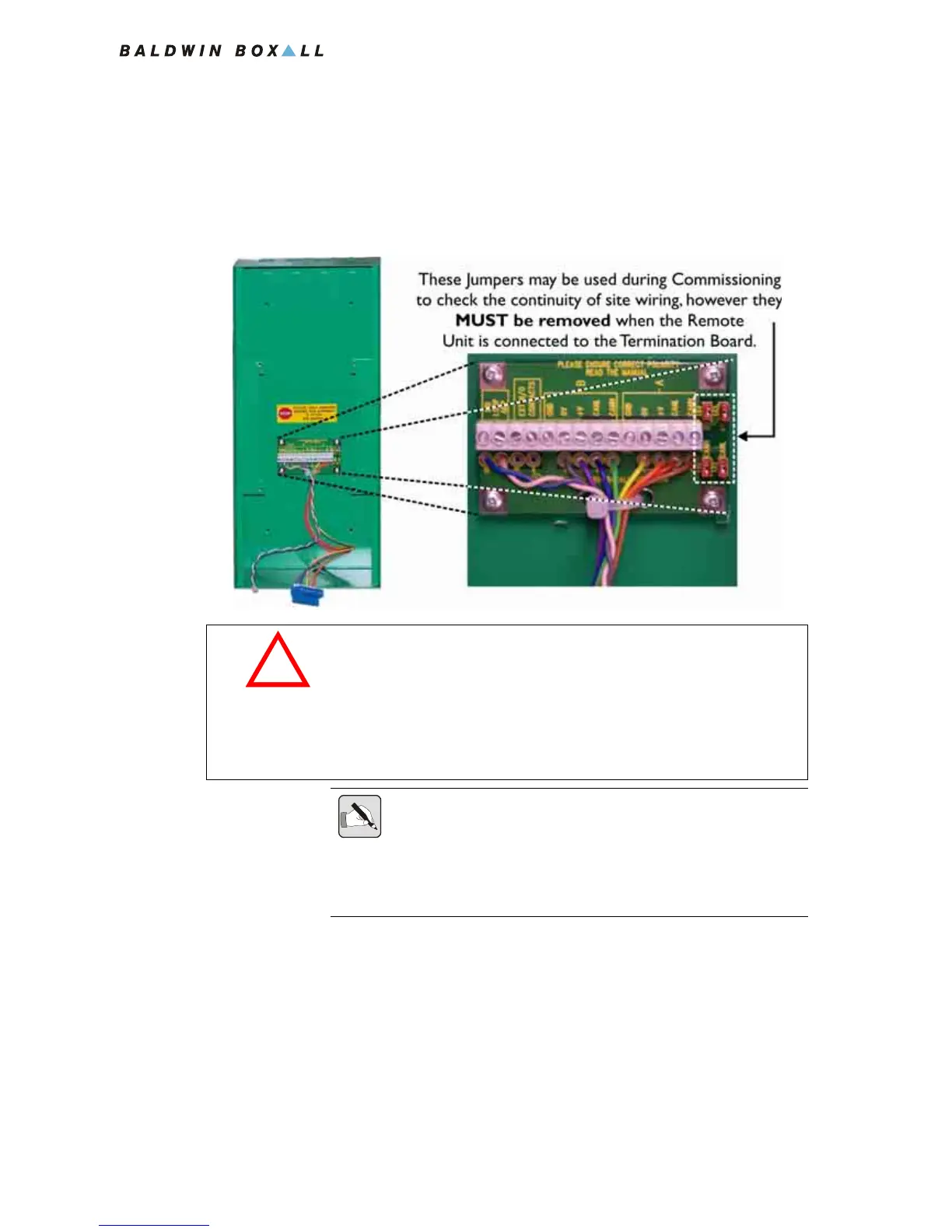

Figure 3.4 — BVOCA Back Box with Termination Board
CA U T I O N
The OmniCare EVC System Remote Units can be damaged if
either of the following situations occur:
• If Power is connected across the Data pair,
• If Power is reversed i.e. 0V and +V swapped.
NOTE: It is important to ensure each connection to the termination block
is made correctly and the screw terminals are tightened sufficiently.
The majority of problems encountered during commissioning are due to
loose, poor, or incorrect terminations on Remote Units that impair the
integrity of the ring.
