Accessories (continued)
BTL6-A-3801-2
28
16
21
37.6
Ø 4.2
18
13

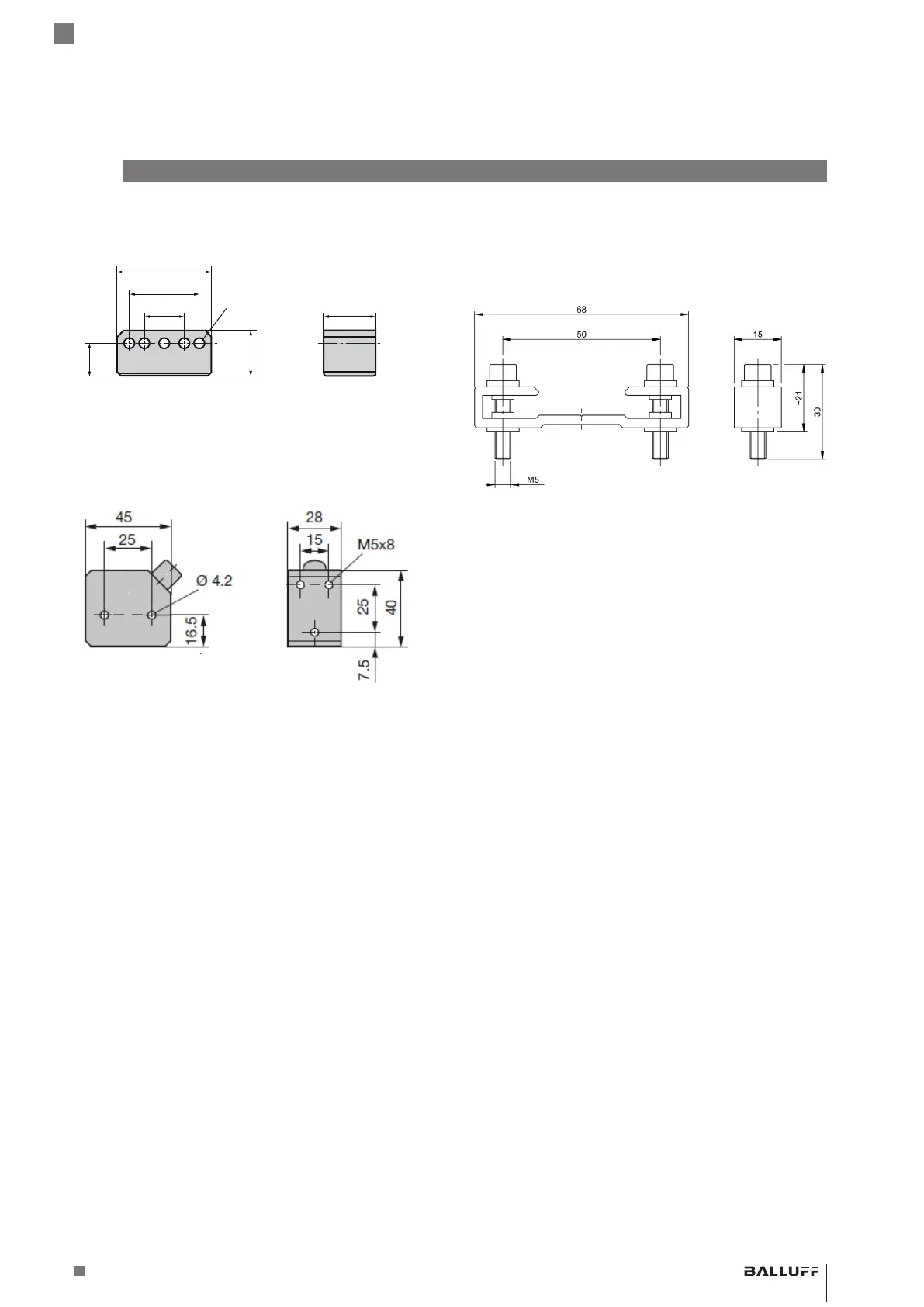

Fig. 10-7: Installation dimensions for BTL6-A-3801-2
Weight: Approx.25 g
Housing: Plastic
BTL5-P-4500-1
Weight: Approx.90 g
Housing: Plastic
Operating temperature: −40°C…+60°C
Special advantage of the BTL5-P-4500-1 magnet: Several
magnets on the same transducer can be separately
switched on and off electrically (actuation with a PLC
signal).
10.4 Mounting clamps
BTL6-A-MF07-A-PF/M5
BAM01N3
Fig. 10-8: Mounting clamps BTL6-A-MF07-A-PF/M5
Material: Anodized aluminum
Dimensions: 15×13×68mm
BTL PF _ 400- _ _ _ _ -C12NL _ _ -0-000S04
Magnetostrictive Linear Position Sensor – Profile Style
