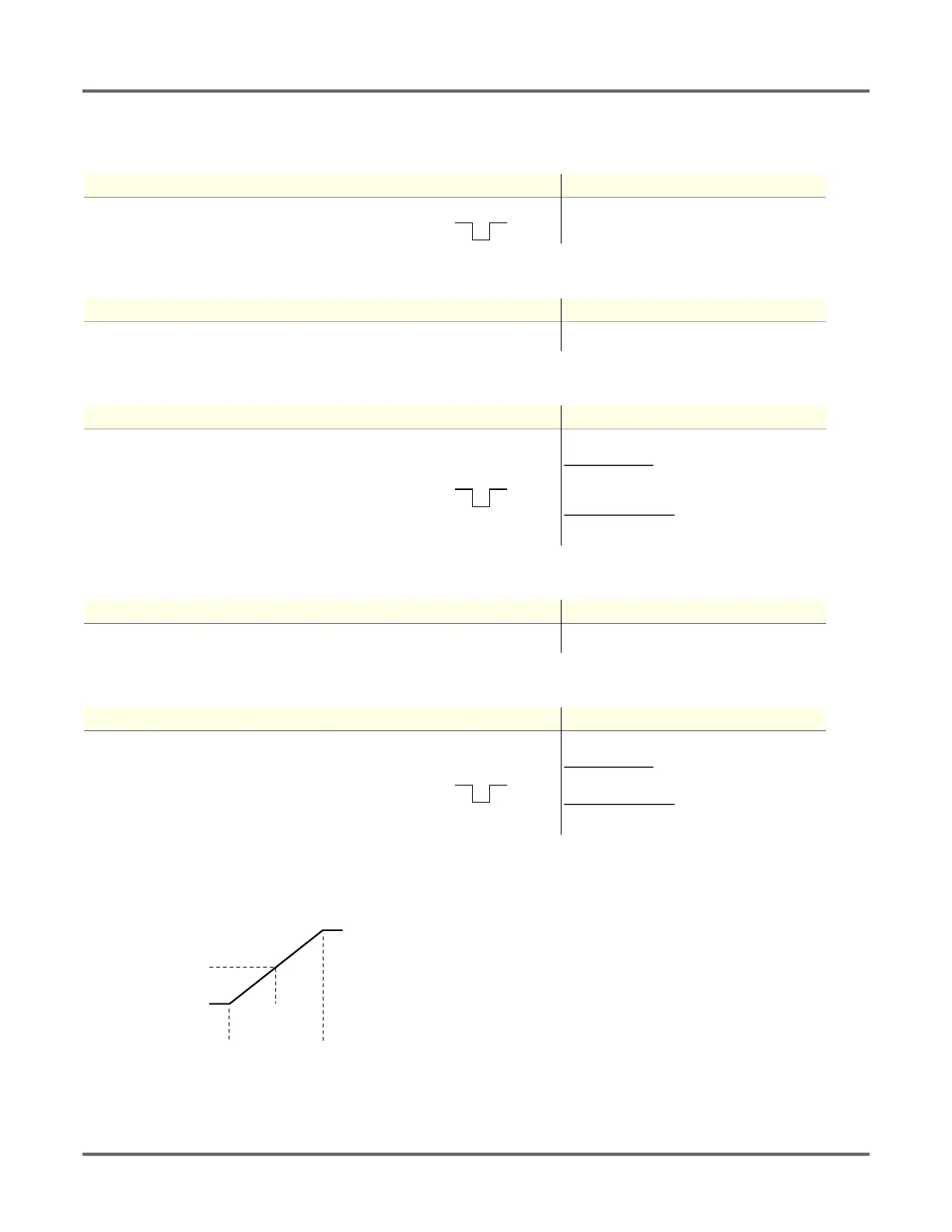

Banner LTF Series User Manual

11 © Banner Engineering Corp. www.bannerengineering.com
SENSOR PROGRAMMING
Teaches both the 4 mA (0 V) and 20 mA (10 V) setpoints.
1) Access the TEACH mode.
2) Present the target.
3) TEACH the sensor.
4) Present the target.
5) TEACH the sensor.
3.5.2. Midpoint TEACH
Action Result
Single-pulse the remote input.
"RMT TCH" and the current measurement value
display.
Action Result
Present the 4 mA (0 V) target.
"RMT TCH" and the target's measurement value
display.
Action Result
Single-pulse the remote input.
"Tch4mA (Tch0V) Teaching" displays while the
sensor is being taught.
TEACH Accepted
The new value displays on the second line of the
display, flashes, and then "Tch20mA (Tch10V)" and
the current measurement value display.
TEACH Not Accepted
"FAIL" flashes, the sensor returns to step 2, and
"RMT TCH" displays.
Action Result
Present the 20 mA (10 V) target.
"Tch20mA (Tch10V)" and the target's measurement
value display.
Action Result
Single-pulse the remote input.
"Tch20mA (Tch10V) Teaching" displays while the
sensor is being taught.
TEACH Accepted
The new value displays on the second line of the
display, flashes, and the sensor returns to Run mode.
TEACH Not Accepted
"FAIL" flashes, the sensor returns to step 2, and
"RMT TCH" displays.
Figure 6: Window and Midpoint Example
The Midpoint TEACH uses both the window size and the 12 mA (5 V) setpoint to
determine the actual measurement window. For example, a window of 200 mm with a
12 mA (5 V) setpoint of 600 mm places the measurement window from 500 mm to 700
mm.
To use the Midpoint TEACH:
1) Set the window size.
2) Set the measurement window using TEACH 12 mA (5 V) on page
12.
The Analog Output Midpoint TEACH and the Discrete Output Midpoint TEACH are
independent settings (see Midpoint TEACH on page 18).
T
T
T
4 mA
20 mA
12 mA
(500 mm) (700 mm)
(600 mm)
Midpoint
