1 © Banner Engineering Corp. www.bannerengineering.com
PRODUCT DESCRIPTION

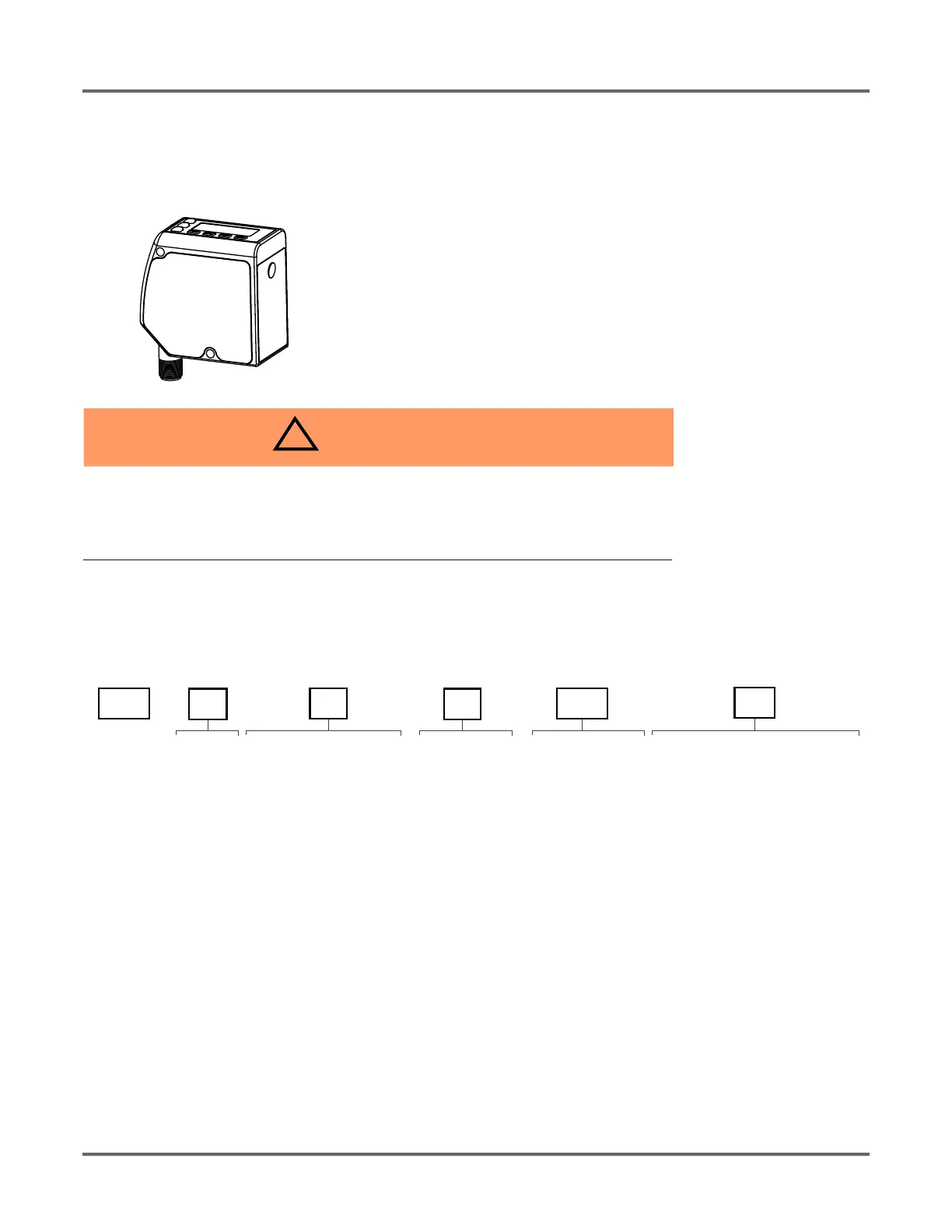

1. Product Description
Laser distance sensor with both analog and discrete (switched) outputs
WARNING
!
DO NOT USE THIS DEVICE FOR PERSONNEL PROTECTION
Using this device for personnel protection could result in serious injury or death.
• This device does not include the self-checking redundant circuitry necessary to allow its use in personnel
safety applications. A device failure or malfunction can cause either an energized (on) or de-energized (off)
output condition.
1.1. Models
NOTE: Some model combinations may not be available.
1.2. Overview
The LTF Time of Flight Laser Distance Sensor is designed for precise, long-distance measurements. A 2-line LCD shows the real-time distance
measurement, in either millimeters or inches,and the analog output measurement, in milliamps or volts, when the sensor is in Run mode.
See Factory Defaults for a list of sensor default settings.
Models with current or voltage analog outputs are available. This manual provides the display information and the navigation paths for the current
models with the voltage model text in parentheses if it is different.
• High-performance time of flight measurement
• Extended ranges up to 24 m
• Reliably detects challenging targets
• Fast setup with an intuitive interface
Family Connector
Blank = 2 m Integral Cable
Q = Rotatable M12/Euro QD
QP = PVC M12/Euro Pigtail QD
W/30 = 9 m Integral Cable
QD models require mating cordset
Q
Range
12
LTF
12
24
Laser
Class
C2
C2 = Class 2I = 4 to 20 mA analog
and (1) NPN/PNP discrete
U = 0 to 10 V analog
and (1) NPN/PNP discrete
LD = Laser diffuse
I
LD
Output
Sensing
Mode
= 12 m
= 24 m
