Banner LTF Series User Manual

© Banner Engineering Corp. www.bannerengineering.com 18
SENSOR PROGRAMMING
3.6.2. Midpoint TEACH
3.6.2.1. Window Size
The D_OUT > TchMid > WndSize option sets the window size that the Midpoint TEACH uses to set the setpoint one and setpoint two thresholds.
The taught surface must be inside the defined sensing range, and at least one setpoint (with offset applied, if any) must be located within the
sensing range.
The Discrete Output window size is a different setting than the Analog Output window size when defined using the push buttons.
Navigate: MENU > D_OUT > TchMid > WndSize
Remote Input: Available
1) Access the setup mode.
2) Set the window size.
3.6.2.2. TEACH Midpoint
The TchMdPt option sets the midpoint that determines the actual measurement window.

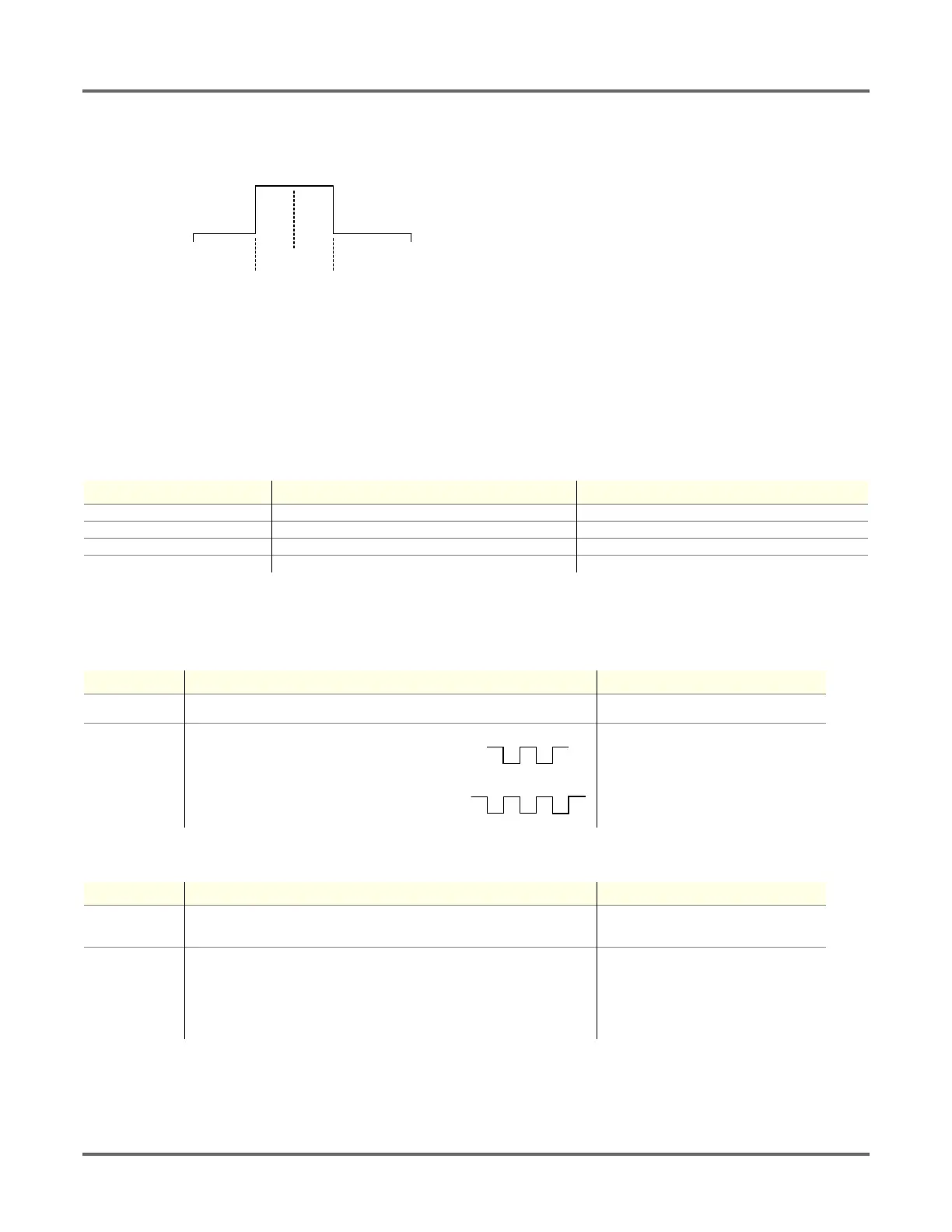

Figure 10: Window and Midpoint Example
The Midpoint TEACH uses both the window size and the TEACH midpoint to
determine the actual measurement window. For example, a window of 200 mm
with a midpoint of 600 mm places the measurement window from 500 mm to 700
mm.
To use Midpoint TEACH:
1) Set the window size.
2) Set the measurement window using TEACH Midpoint.
The Discrete Output Midpoint TEACH and the Analog Output Midpoint TEACH are
independent settings.
Parameters LTF12 LTF24
Window Size Minimum 10 mm 10 mm
Window Size Maximum 11950 mm 23950 mm
Range 50 mm to 12000 mm 50 mm to 24000 mm
Default Window Size 20 mm 20 mm
Method Action Result
Push Button Navigate: MENU > D_OUT > TchMid > WndSize.
"WndSize" and the current window size value
display.
Remote Input
a. Double-pulse the remote input to enter setup mode.
b. Three-pulse the remote input to enter window size
mode.
a. "REMOTE SETUP" displays.
b. "WndSize" and the current value display.
Method Action Result
Push Button
a. Use Down and Up to set the desired window size—the value changes in
increments of 2.
b. Press Enter to save the new value.
a. "WndSize" and the new value display.
b. The new value flashes and returns to
"TchMid WndSize".
Remote Input
(Sets A_OUT and
D_OUT window
Size)
Pulse the remote input 1 to 6 times to select the desired window size.
1 pulse: 10 mm
2 pulses: 20 mm
3 pulses: 100 mm
4 pulses: 500 mm
5 pulses: 2000 mm
6 pulses: 11950 mm for the LTF12; 23950 mm for the LTF24
The new value flashes and the sensor returns
to Run mode.
Output OFF
0 mm
(500 mm) (700 mm)
(600 mm)
1000 mm
SP1 SP2
Midpoint
Output ON
TT
T
TT
T
T
T
