SENSOR PROGRAMMING
Remote Input: Available
Default: Positive
1) Access the slope setting.
2) Set the slope.
3.5.6. Loss of Signal
The LossSig option sets the Analog Output value used by the sensor during a loss of signal. When a signal is restored, measurement resumes.
Navigate: Menu > A_Out > LossSig
Remote Input: Not available
Default: 3.5 mA (0 V)

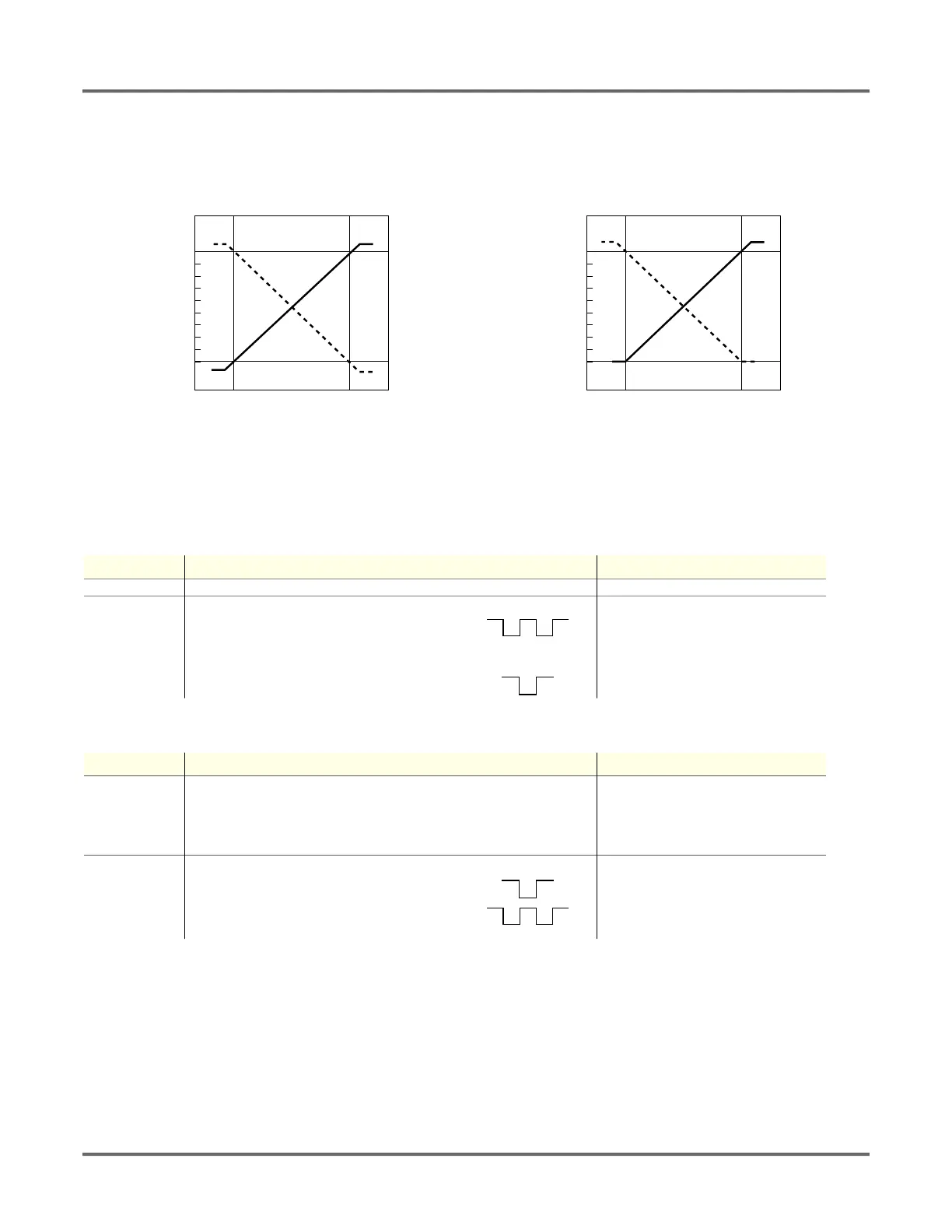

Figure 7: Slope—Current-Sourcing Models
The analog current output tracks slightly beyond each window limit (from 3.8 mA
to 20.2 mA)
Figure 8: Slope—Voltage-Sourcing Models
The analog voltage output tracks slightly beyond the upper window limit (up to
10.2 V)
Method Action Result
Push Button Navigate: MENU > A_OUT > Slope "Slope" and the current setting display.
Remote Input
a. Double-pulse the remote input to enter setup mode.
b. Single-pulse the remote input to access A_OUT
Slope.
a. "REMOTE SETUP" displays.
b. "Slope" and the current setting display.
Method Action Result
Push Button
a. Use Down and Up to change the slope between Positive and Negative.
b. Press Enter to save the selection.
a. The selection flashes rapidly on the
display.
b. The selection is saved and the sensor
returns to "A_OUT Slope".
Remote Input
Positive slope: Single-pulse the remote input
Negative slope: Double-pulse the remote input
The selection flashes rapidly on the display,
and the sensor returns to Run mode.
4
Near
Window
Far
Window
20
Target Position
Analog Output (mA)
Positive
Slope
0
Near
Window
Far
Window
10
Analog Output (V dc)
Positive
Slope
Target Position
TT
T
T
T
TT
T
