Banner LTF Series User Manual

41 © Banner Engineering Corp. www.bannerengineering.com

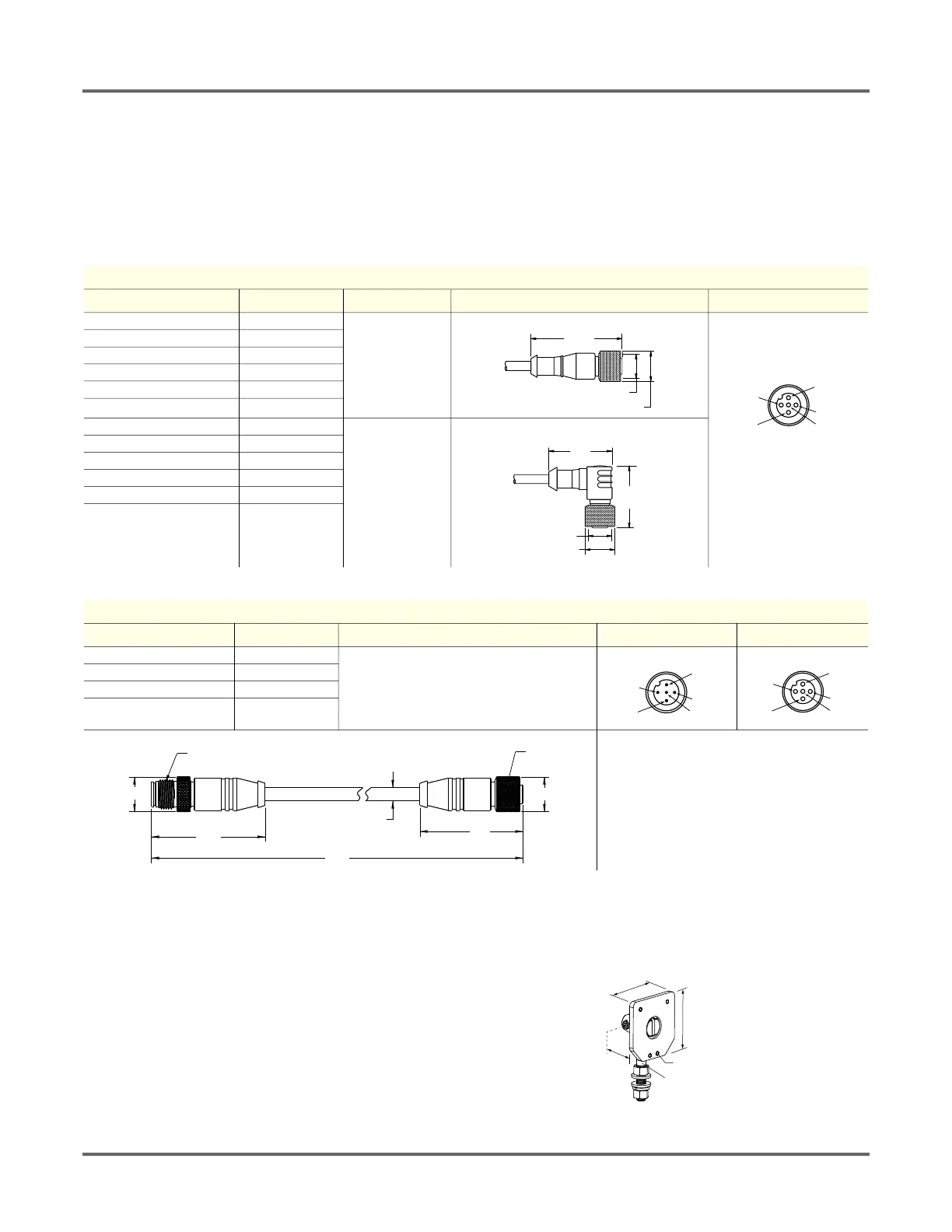

ACCESSORIES
9. Accessories
9.1. Cordsets
All measurements are listed in millimeters, unless noted otherwise.
9.2. Brackets
All measurements are listed in millimeters, unless noted otherwise.
5-Pin Threaded M12 Cordsets with Shield—Single Ended
Model Length Style Dimensions Pinout (Female)
MQDEC2-506 2 m (6.56 ft)
Straight
• 1 = Brown
• 2 = White
• 3 = Blue
• 4 = Black
• 5 = Gray
MQDEC2-515 5 m (16.4 ft)
MQDEC2-530 9 m (29.5 ft)
MQDEC2-550 15 m (49.2 ft)
MQDEC2-575 23 m (75.44 ft)
MQDEC2-5100 30.5 m (100 ft)
MQDEC2-506RA 2 m (6.56 ft)
Right-Angle
MQDEC2-515RA 5 m (16.4 ft)
MQDEC2-530RA 9 m (29.5 ft)
MQDEC2-550RA 15 m (49.2 ft)
MQDEC2-575RA 23 m (75.44 ft)
MQDEC2-5100RA 31 m (101.68 ft)
5-Pin Male Threaded and 5-Pin Female Quick Disconnect M12 Cordset with Shield—Double Ended
Model Length "L1" Style Pinout (Male) Pinout (Female)
MQDEC3-503SS 0.91 m (2.99 ft)
Female Straight/Male Straight
MQDEC3-506SS 1.83 m (6 ft)
MQDEC3-515SS 4.58 m (15 ft)
MQDEC3-530SS 9.2 m (30.2 ft)
• 1 = Brown
• 2 = White
• 3 = Blue
• 4 = Black
• 5 = Gray
SMBLTFFA
• Swivel plate bracket
• 5 mm stainless steel
44 Typ.
ø 14.5
M12 x 1
2
3
4
1
5
32 Typ.
[1.26"]
30 Typ.
[1.18"]
ø 14.5 [0.57"]
M12 x 1
1
4
5
3
2
2
3
4
1
5
M12 x 1
14.5
ø 5.9
14.5
“L1”
47.4
47.4
M12 x 1
67
37
66
3/8-16 UNC X
3 in.
4X M4X0.7
