Banner LTF Series User Manual

© Banner Engineering Corp. www.bannerengineering.com 42
ACCESSORIES
9.3. RSD1 Remote Display
Use the optional RSD1 for remote monitoring and configuring compatible devices.
Refer to the RSD1 instruction manual (p/n 199621) or quick start guide (p/n 199622) for more information. See Accessories on page 41 for the
required cordsets.

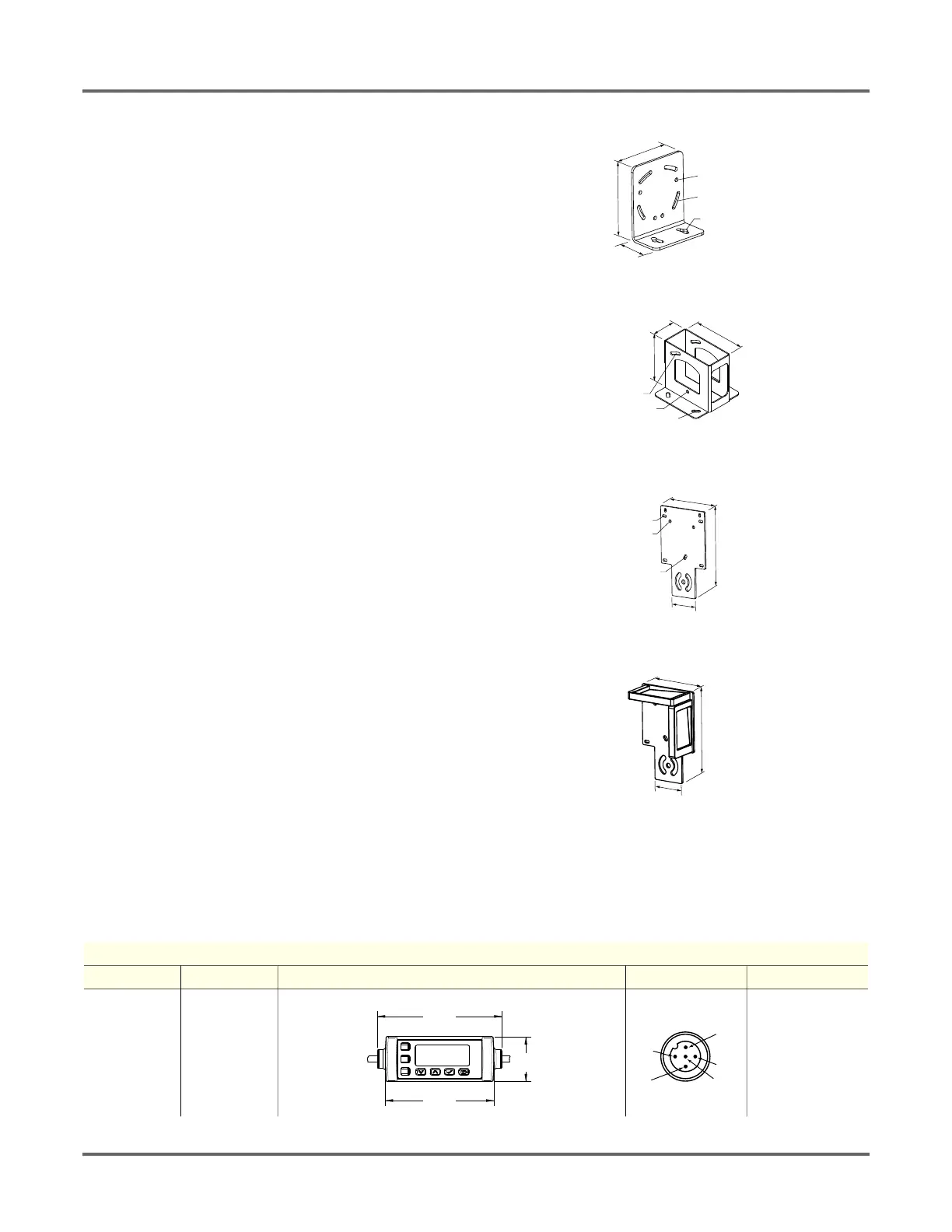

SMBLTFL
• Right-angle bracket
• 12 gauge stainless steel
SMBLTFU
• Enclosed bracket
• 16 gauge stainless steel
SMBAMSLTFP
• AMS mounting pattern
• 12 gauge stainless steel
SMBAMSLTFIP
• Includes the mounting plate and two protective windows
• 90 plus degree rotation
• Window frames are black anodized aluminum; mounting
plate is stainless steel
• The mounting plate, SMBAMSLTFP, can be ordered sepa-
rately
• The replacement window, RWAMSLTF, can be ordered
separately
RSD1 Remote Display
Model Output A and B Dimensions Male Wiring
RSD1QP Configurable
1 = Brown
2 = White
3 = Blue
4 = Black
5 = Gray
75
90
40
4X Ø4.5
4X Ø4.5
2X Ø5.7
42
90
82
2X Ø4.5
4X Ø5
2X Ø4.5
45
85
134
6X Ø3.5
2X Ø4.5
Ø4.5
45
85
134
78.0
[3.07]
68.0
[2.68]
28.0
[1.10]
1
4
5
3
2
