Banner LTF Series User Manual

25 © Banner Engineering Corp. www.bannerengineering.com
SENSOR PROGRAMMING

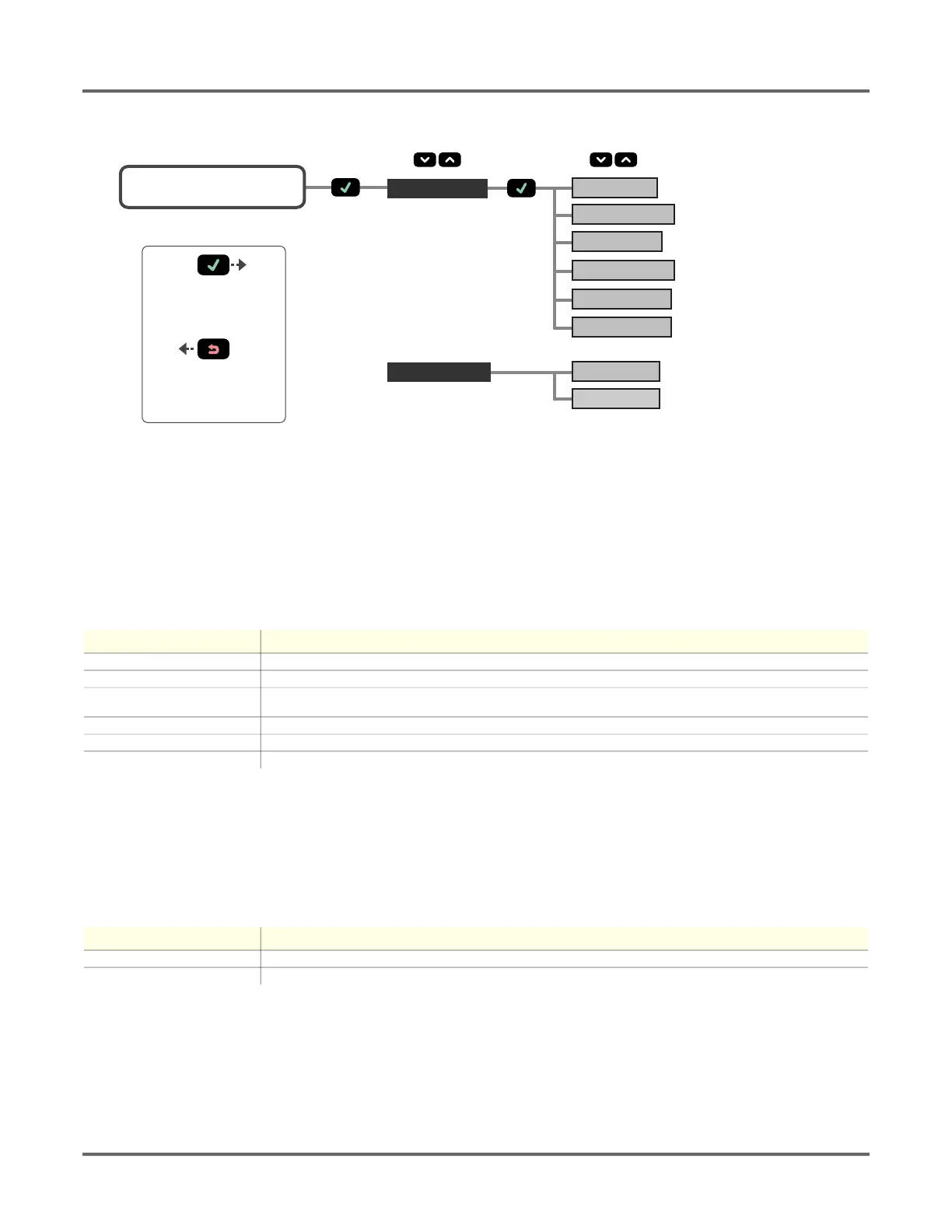

Figure 15: Input Menu map
3.7.1. Input Type
The Type option sets the input type.
Navigate: MENU > INPUT > Type
Remote Input: Not available
Default: Disabled
3.7.2. Input Active
The Active option sets the active state of the remote input. Use the Active options to change the active input to Low or High.
Navigate: MENU > INPUT > Active
Remote Input: Not available
Default: Low
3.8. Measure Menu (MEASURE)
Use this menu to view or change the:
• Speed
• Trigger
Input Type Description
Teach The remote input is used to TEACH and program the sensor.
LasrEnbl The remote input is used to control when the laser emitter is On/Off.
Trigger
The remote input is used to trigger advanced measurements To enable advanced measurements, the Input Type option must
be set to Trigger (see ).
SyncMstr The remote input is used as the Master Sync output to an attached Slave sensor (see ).
SyncSlve The remote input is used as the Slave Sync input from an attached Master sensor (see ).
Disabled The remote input is disabled. (Default)
Input Active Description
Low The remote input detects low (0 V) inputs and high-to-low transitions. (Default)
High The remote input detects high (V+) inputs and low-to-high transitions.
MENU INPUT
or
or
Go Back to Parent Menu
Select Menu Item
Press to Save Setting
Press and Hold to Go Back
to Run Mode
INPUT Active
INPUT Type
Active High
Active Low
Type LasrEnbl
Type Teach
Type Trigger
Type SyncMstr
Type SyncSlve
Type Disabled
