SENSOR PROGRAMMING

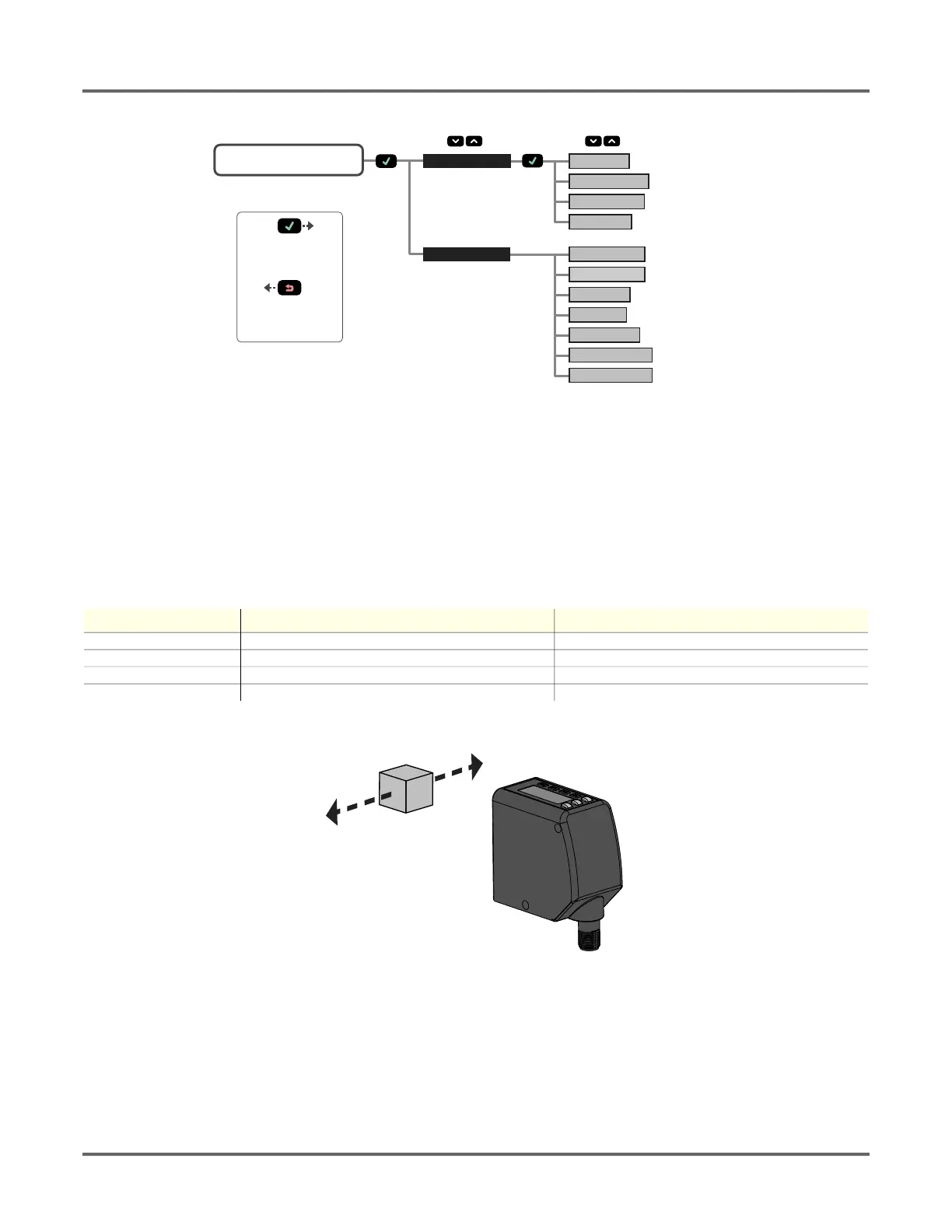

Figure 16: Measure Menu Map
3.8.1. Speed
The Speed option sets the speed at which the measurement is calculated. This process uses averaging in the digital processing of the signal to
calculate the measurement. A slower speed increases the response time of the sensor but improves the repeatability. Refer to the repeatability
specifications for each speed.
Navigate: MENU > MEASURE > Speed
Remote Input: Not available
Default: Medium
* Response time triples when using Master/Slave mode.
Figure 17: Lateral Entry Example
3.8.2. Trigger
The Trigger option sets the advanced measurement that is calculated when a trigger event is detected on the remote input. The analog output
updates with the new advanced measurement on each trigger event. To use these Trigger options, the sensor Input Type option must be set to
Trigger; see Input Type.
Navigate: MENU > MEASURE > Trigger
Remote Input: Not available
Speed Response Time * Lateral Entry
Fast 1.5 ms 5.5 ms
Standard 8 ms 16 ms
Medium 32 ms 48 ms
Slow 256 ms 288 ms
MENU MEASURE
or
or
Go Back to Parent Menu
Select Menu Item
Press to Save Setting
Press and Hold to Go Back
to Run Mode
Trigger Average
Trigger Sample
Speed Fast
Trigger Max
Trigger Min
Trigger Range
Trigger TrackMax
Trigger TrackMin
MEASURE Trigger
MEASURE Speed
Speed Standard
Speed Medium
Speed Slow
