Banner LTF Series User Manual

27 © Banner Engineering Corp. www.bannerengineering.com
SENSOR PROGRAMMING
Default: Sample

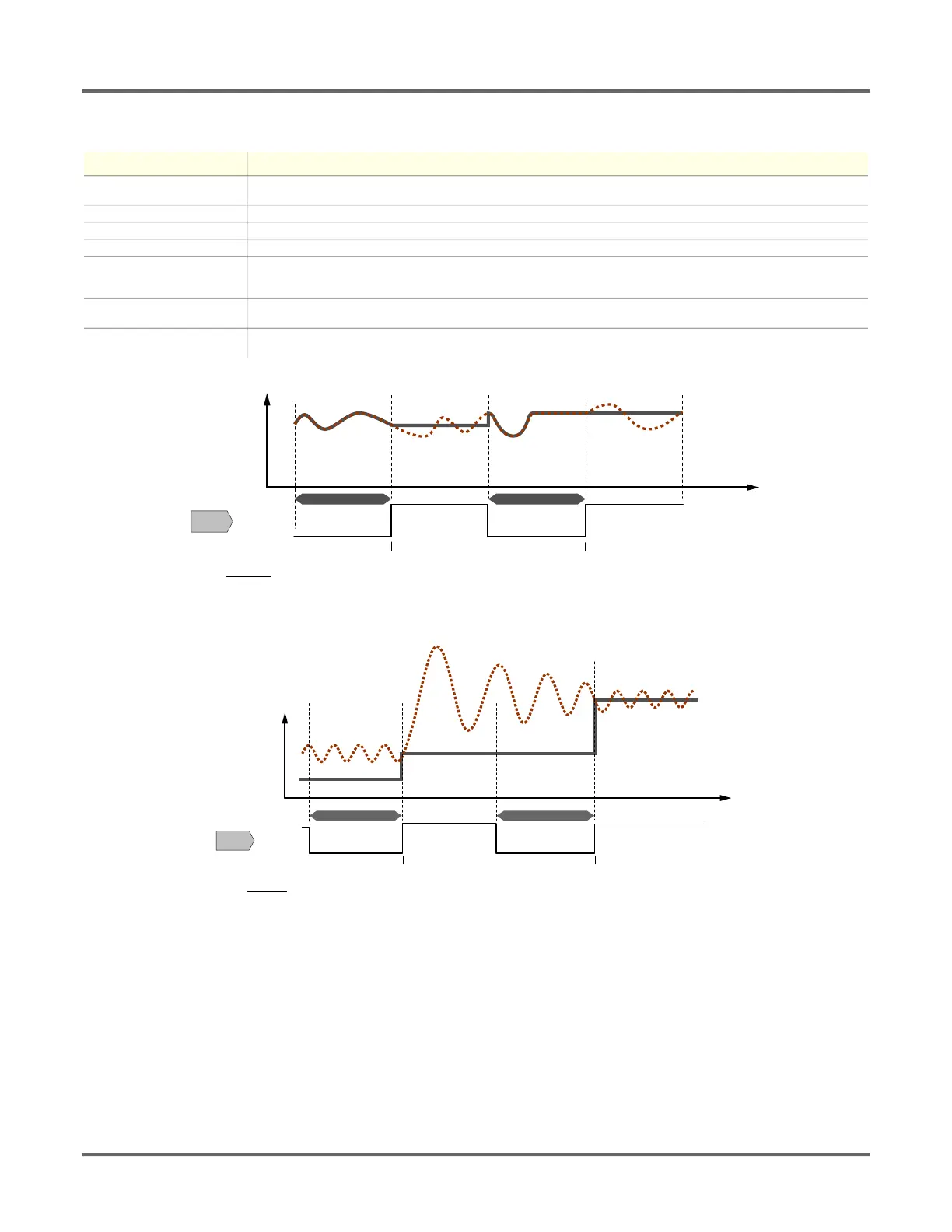

Figure 18: Sample
Figure 19: Average
Trigger Description
Sample
The current distance at the time of the trigger event. (Default) The Analog Output tracks the sample values during the measuring
period.
Average The average distance since the last trigger event.
Maximum (Max) The maximum distance since the last trigger event.
Minimum (Min) The minimum distance since the last trigger event.
Range
The difference between the maximum and minimum distance since the last trigger event. For additional information on the
Range measurement behavior when the maximum or minimum distance is outside of the taught setpoints, see Loss of Signal on
page 14.
TrackMax
The maximum distance since the last trigger event. The Analog Output tracks new maximum values during the measurement
period.
TrackMin
The minimum distance since the last trigger event. The Analog Output tracks new minimum values during the measurement
period.
Active
Sample
Inactive
(t)
Input
Signal
Hold
Measurement
Hold
Measurement
Measuring Period
Measuring Period
REMOTE
INPUT
(Active Low shown)
Average
(t)
Input
Signal
Measuring Period Measuring Period
Hold
Measurement
Hold
Measurement
Active
Inactive
REMOTE
INPUT
(Active Low shown)
