PRODUCT DESCRIPTION
1.2.1. Features and Indicators
1.2.2. Display
1.2.3. Buttons and Icons
Use the sensor buttons Down, Up, Enter, and Escape to program the sensor and to access sensor information.

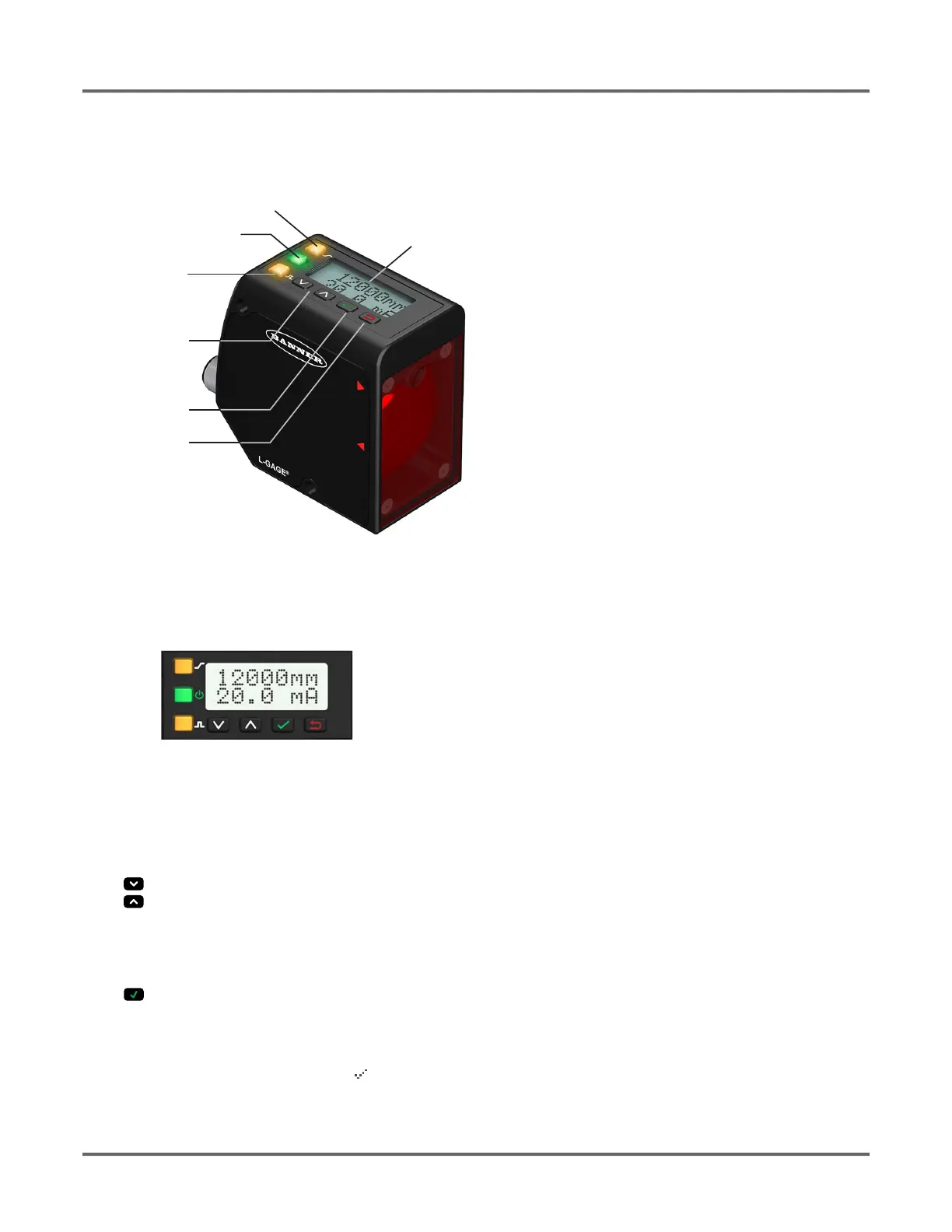

Figure 1: Features
Three LED indicators provide an ongoing indication of the sensing status.
Analog Output LED Indicator
• Solid Amber = Displayed distance is within the taught analog
output window
• Off = Displayed distance is outside the taught analog output
window
Power LED Indicator
• Solid Green = Normal operation, power On and laser On
• Flashing Green (1 Hz) = Power On and laser Off (laser
enable mode)
Discrete Output LED Indicator
• Solid Amber = Discrete Output is On
• Off = Discrete Output is Off
Figure 2: shown in Run Mode
The display is a 2-line, 8-character LCD. The main screen is the Run mode screen, which
shows the real-time distance measurement and the analog output measurement.
Down and Up Buttons
Press Down and Up to:
• Access the Quick Menu from Run mode
• Navigate the menu systems
• Change programming settings
• Change individual digit values in distance based settings
When navigating the menu systems, the menu items loop.
Enter Button
Press Enter to:
• Access the Sensor Menu from Run mode
• Access the submenus
• Move right one digit in distance based settings
• Save changes
In the Sensor Menu, a checkmark in the lower right corner of the display indicates that pressing Enter accesses a submenu.
Press Enter to save changes. New values flash rapidly and the sensor returns to the parent menu.
Analog Output
LED Indicator
Power
LED Indicator
Discrete Output
LED Indicator
Up and Down
Buttons
Enter Button
Escape Button
Display
