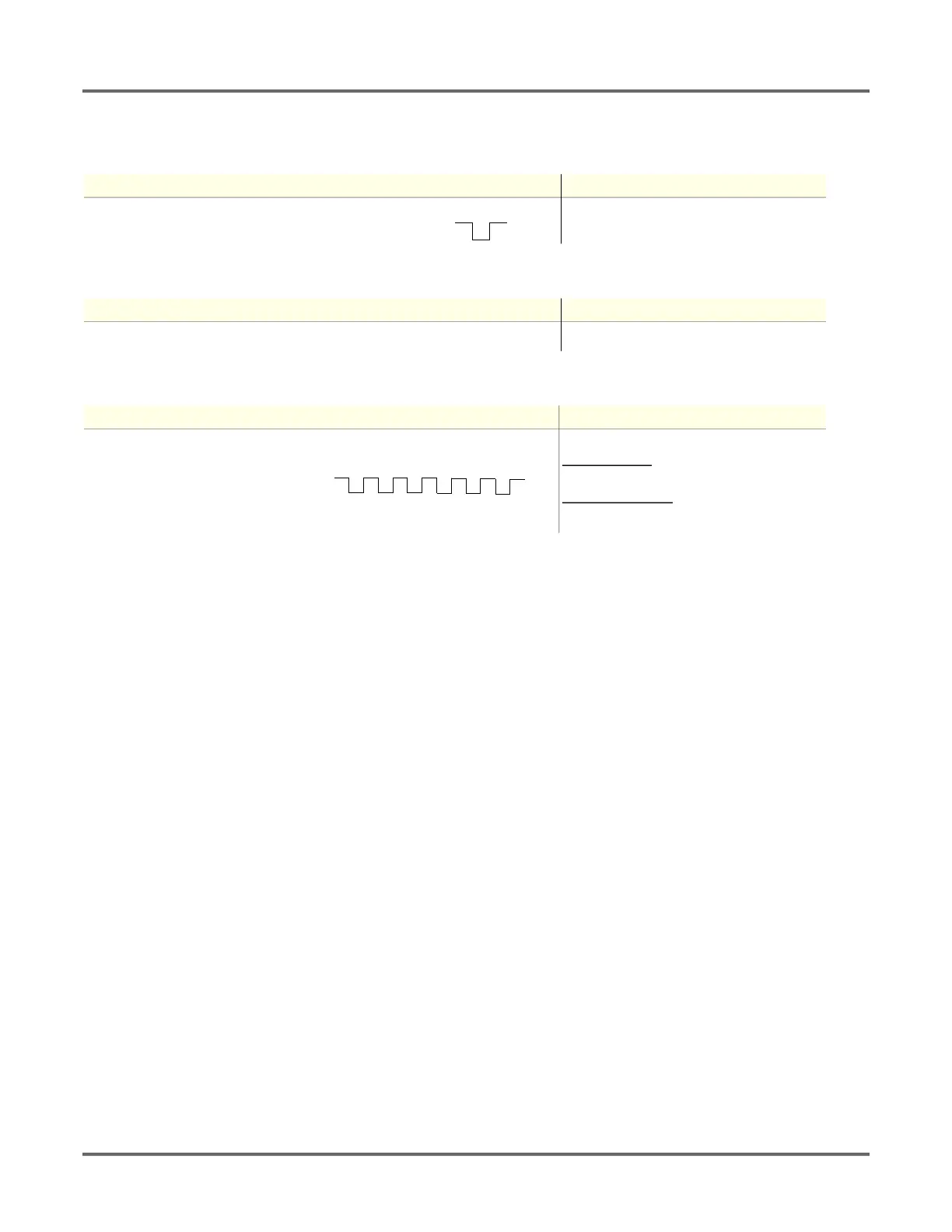

ADDITIONAL REMOTE TEACH PROCEDURES
When the Discrete Output is set to Switch Mode, the SPt TEACH is executed with SPtRef=Custom and Offset=0 mm.
1) Access the TEACH mode.
2) Present the target.
3) TEACH the sensor.
Action Result
Single-pulse the remote input.
"RMT TCH" and the current measurement value
display.
Action Result
Present the midpoint (switch point) target.
"RMT TCH"and the target's measurement value
display.
Action Result
Six-pulse the remote input.
"TchA&D Teaching" displays while the sensor is
being taught.
TEACH Accepted
The new value displays on the second line of the
display, flashes, and the sensor returns to Run mode.
TEACH Not Accepted
"FAIL" flashes, the sensor returns to step 2, and "RMT
TCH" displays.
