R5914654 /04 G62 series50

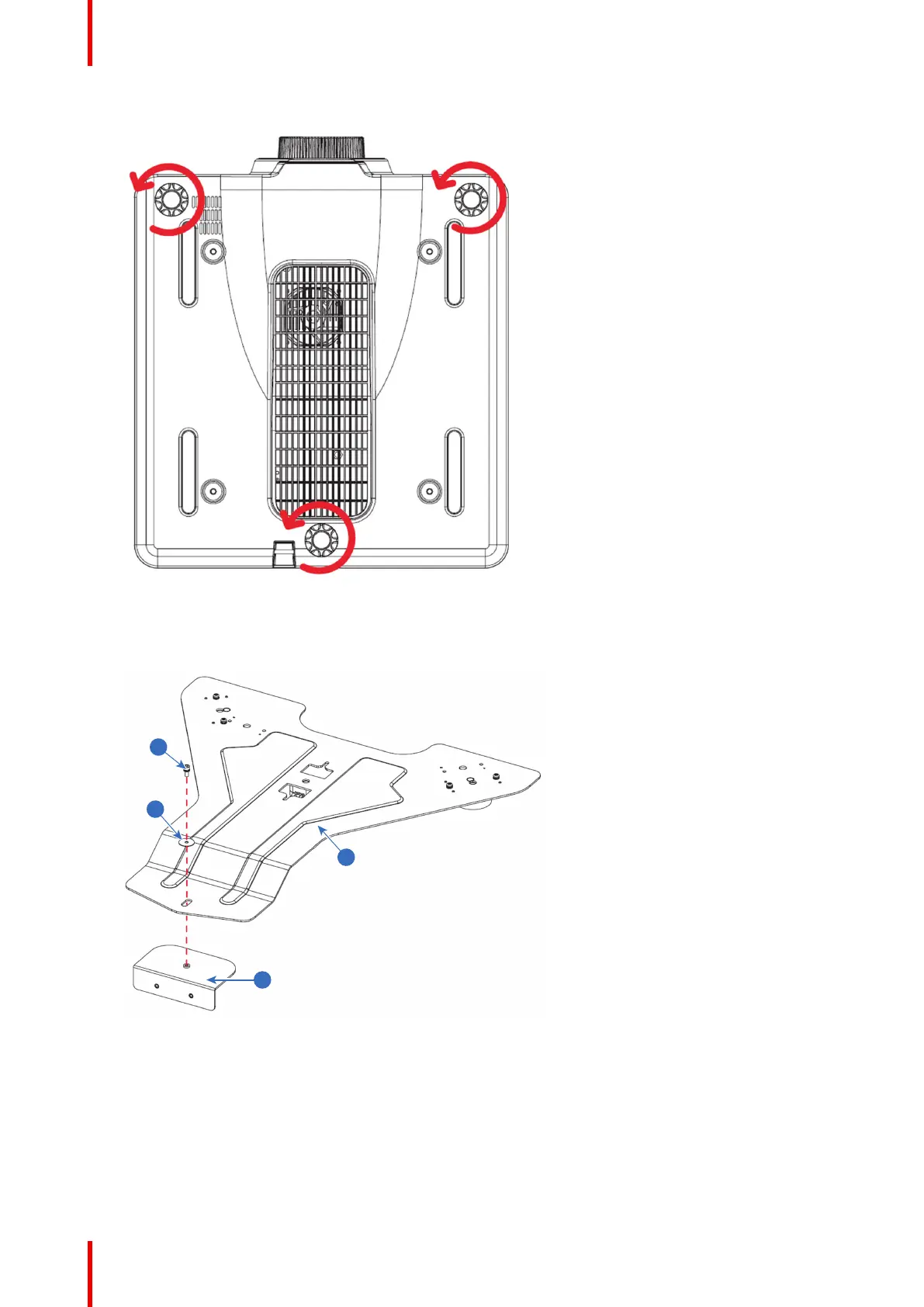

Image 3–21
5. To secure the angle bracket to the lens supporter, install one M3 x L8 hex screw and one M3 washer with
a 2.5 mm Allen wrench. Do not fully tighten the screw.
Image 3–22
1 Lens support
2 Angle bracket
3 M3-3.7 x 0.8 x18 washer
4 M3 x L8 hex screw
6. To mount the lens supporter to the bottom of the projector, install and tighten two M6 x L22 hex screws and
two M6 washers with a 5 mm Allen wrench.
UST lens R9801785(1)
