Image 4–4 Left mark on the lens
For left projection, make sure the red dot on the interface is next to the ‘Left’ marking on the lens.
Image 4–5
1 Wire routing
2 Projection orientation : left

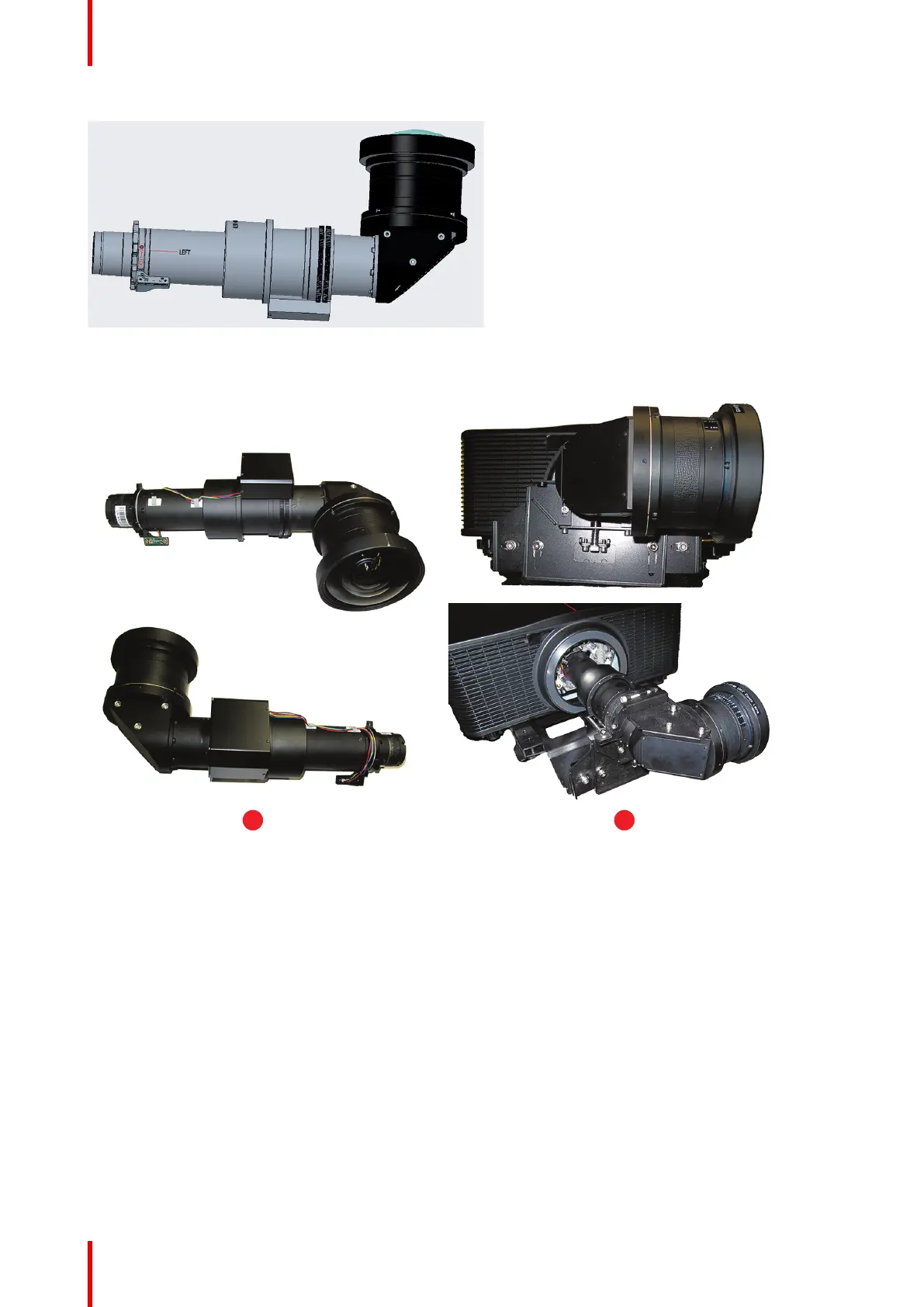

90° rotated
To go from the standard position to a 90° rotated position, turn out the 8 M3 screws.
Slide the interface a few mm to the backside of the lens.
Rotate the interface 90° until the red dot on the interface is next to the ‘Up’ mark on the lens body.
Slide the interface back to the front of the lens to re-engage focusing gear and motor gear.
Turn in 8 M3 cap screws with some glue.
The lens is ready to be mounted in the projector.
UST lens R9801830 G lens (0.37 - 0.40 : 1) UST 90°
