3. Connections
3. CONNECTIONS
Preparations
To get a ccess to the connections, the covers of the projector m ust be removed.
CAUTION: Only authorized service personnel are allowed t o remove the covers.
3.1 R emoving the covers
WARNING: Make sure that the power of th e p rojector is t urned off.
Removingthesidecover
1. Loosen tw o screw s (a) on the rear and two screws (b) on the side that are securing the side cover (c) using a Phillips screwdriver.
(a)
(b)
(c)
(a)
(b)
(c)

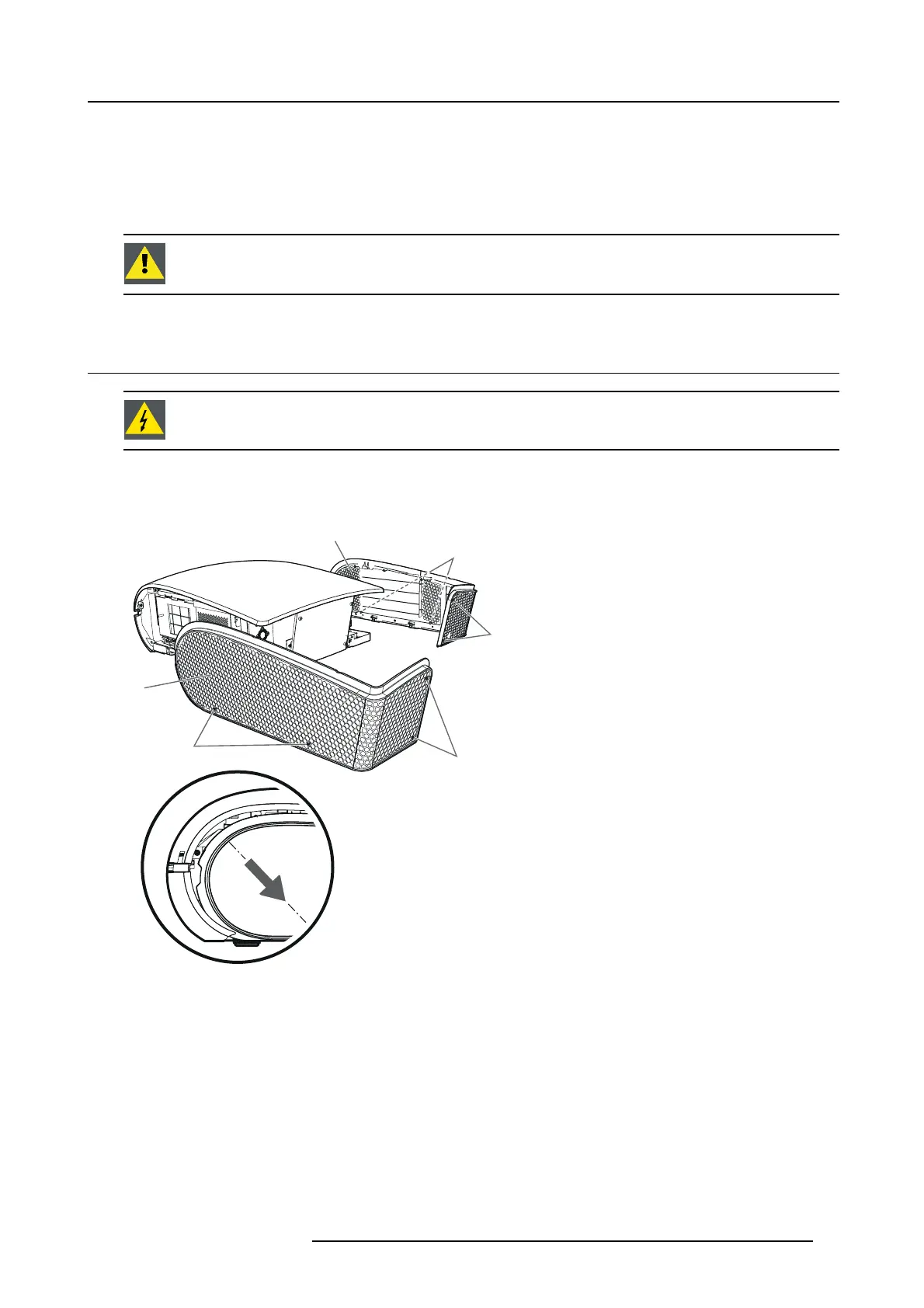

Image 3-1
Side cover removal
2. Slide and remove the side cove
r towards the rear.
Removing the rear cover
1. Loosen th e four screw s ( d) that are securing the rear cover ( e) using a Phillips screwdriver.
R5905597 PHXX SERIES 20/05/2014
21

Barco PHWU-81B Specifications

General

Matrix size	0.67 \
Matrix type	DMD
Native aspect ratio	16:10
Projection distance	- m
Projection technology	DLP
Contrast ratio (typical)	2800:1
Screen size compatibility	- \
Projector native resolution	WUXGA (1920x1200)
Projector brightness (economic mode)	5450 ANSI lumens
Focal length range	- mm
Lamp power	350 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	4000 h
Full HD	No
Supported graphics resolutions	1920 x 1200 (WUXGA)
BNC input ports	5
Serial interface type	RS-232
USB 2.0 ports quantity	0
Ethernet LAN data rates	10, 100 Mbit/s
I/O ports	SDI
Noise level	44 dB
Noise level (economic mode)	39 dB
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	Black, White
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	910 W
Power consumption (standby)	0.3 W
Power consumption (economy mode)	690 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	30 - 90 %

Weight and Dimensions

Depth	660 mm
Width	510 mm
Height	263 mm
Weight	21000 g
Package depth	840 mm
Package width	650 mm
Package height	415 mm
Package weight	26500 g
