Barco PHWU-81B User Manual

5. Advanced menu
Item
Setti ng
Function
4:3
Regardless of the type of input signal, image is displayed at 4:3
aspect ratio.
USER
Displays the detailed settings.
USER
ENTER
The USE R men u is displayed for the following adjustments.
CLAMP POSITION
1-255 Use to correct so lid white or solid black in the projected im age.
CLAMP WIDTH
1-63 Use to co rrect solid black in the projected image.
VERT. SYNC. AUTO / OFF Use to a djust the image when its motion doesn’t run smoothly. Select
AUTO for normal use.
LPF
ON / OFF
Use to select wh ether or n ot to enable the LPF.
SHUTTER(U) 0-259 (for PHWU -81B) /
0-142 (for PHWX-81B) /
0-126 (for PHX G -91B
Use to adjust the image when nois e appears on the top part of the
image.
SHUTTER(L) 0-259 (for PHWU-81B) /
0-142 (for PHWX-81B) /
0-126 (for PHXG-91B)
Use to adjust the image when noise appears on the b ottom p art of
the image.
SHU TT ER(LS ) 0-3 11 (for P H WU-81B) /
0-192 (for PHWX-81B) /
0-128 (for PHXG-91B)
Use to adjust the image when noise appears on the left half of the
image.
SHUTTER(RS) 0-311 (for P HWU-81B) /
0-192 (for PHWX-81B) /
0-128 (for PHXG-91B)
Use to adjust the im age when noise appears on the right half of the
image.
• Though horizontal strips ma y appear on the enlarged pro
jected ima ge, such sym ptom is not a malfunction.
• When you c hange the horizontal or vertical position to a large extent, noise may ap pear
• The adjustable range of the vertical position v aries depending on the type of the input signal. T hough the ima ge may stay in
the s ame position even w hen the setting value is changed, such symp tom is not a m alfunction.
• When you increase the setting value of O VER SCAN, noise may appear on the screen.
• When 16:9 is selected by SCREEN, you cannot set AS PE CT to 16:9.
• When 4:3 is selected by SCREE N, you cannot set ASPECT to 4:3.
• ASPECT-USER s etting supports the C OM PU TE R1, COM PUT ER2, DV I, and HDMI terminals only. Therefore, you cannot s e-
lec t USER for other terminals.
You can set the IMAGE m enu an d the SIG NAL m enu only wh en the signal is supplied.

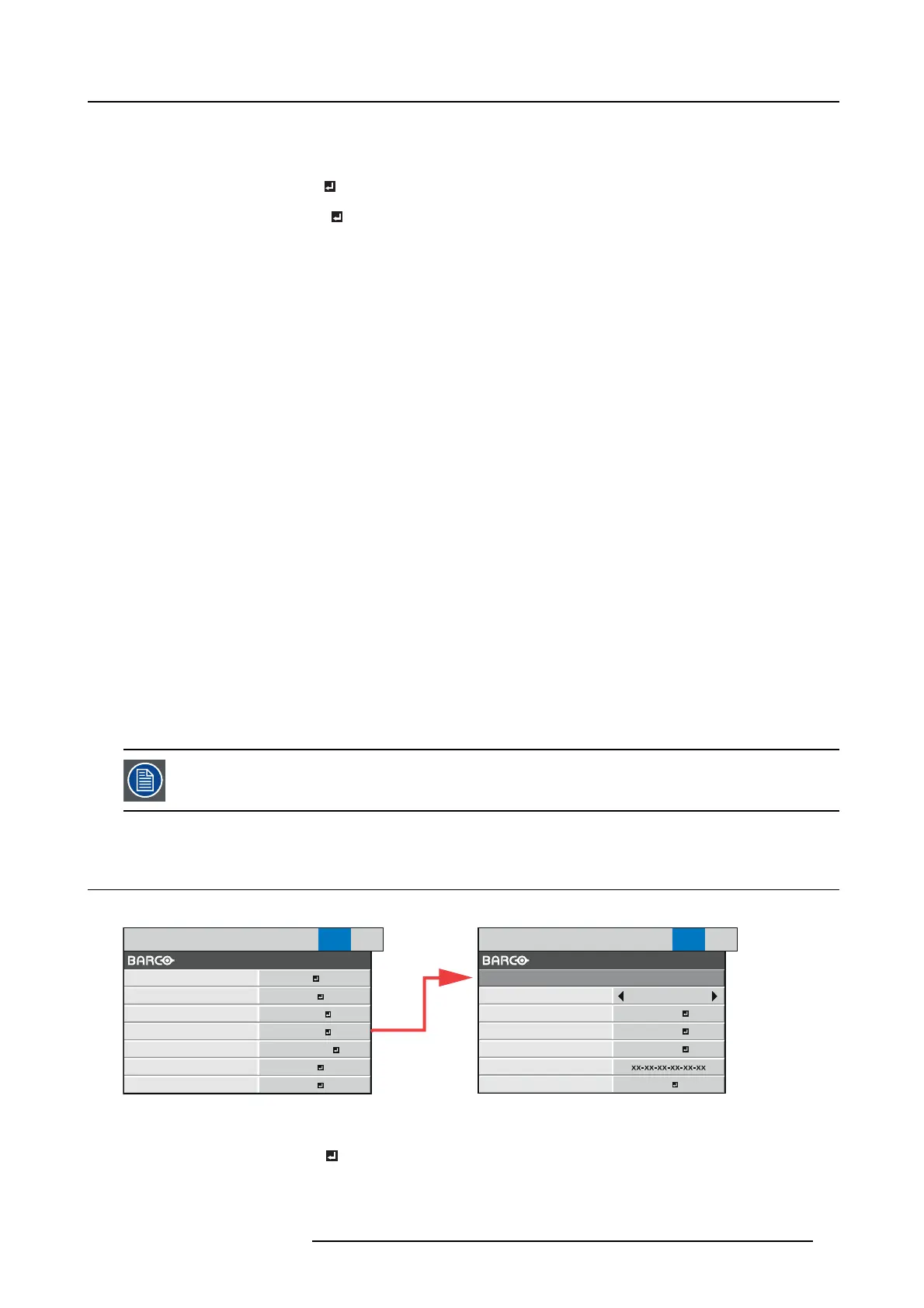

5.9 NETWORK menu
Overview
IMAGE INSTALL1 INSTALL2
MULTI-
SCREEN
FEATURE SIGNAL NETWORK INFO
IP CONFIG
DHCP
IP ADDRESS
SUBNET MASK
DEFAULT GATEWAY
0. 0. 0. 0
MAC ADDRESS
SAVE SETTINGS
ON
0. 0. 0. 0
OK
0. 0. 0. 0
IMAGE INSTALL1 INSTALL2
MULTI-
SCREEN
FEATURE SIGNAL NETWORK INFO
CONTROL SYSTEM
NETWORK
PASSWORD
NETWORK
CERTIFICATION
PROJECTOR NAME
IP CONFIG
NETWORK RESET
STANDARD
ENTER
ENTER
OK
OFF
NETWORK RESTART
OK
Image 5-19
Item
Setti ng
Function
PROJ EC TO R N A M E
*****...
Set the name to identify the projector. Enter up to 15 c haracters
(alphabets or numeric characters).
R5905597 PHXX SERIES 20/05/2014
51

Barco PHWU-81B Specifications

General

Matrix size	0.67 \
Matrix type	DMD
Native aspect ratio	16:10
Projection distance	- m
Projection technology	DLP
Contrast ratio (typical)	2800:1
Screen size compatibility	- \
Projector native resolution	WUXGA (1920x1200)
Projector brightness (economic mode)	5450 ANSI lumens
Focal length range	- mm
Lamp power	350 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	4000 h
Full HD	No
Supported graphics resolutions	1920 x 1200 (WUXGA)
BNC input ports	5
Serial interface type	RS-232
USB 2.0 ports quantity	0
Ethernet LAN data rates	10, 100 Mbit/s
I/O ports	SDI
Noise level	44 dB
Noise level (economic mode)	39 dB
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	Black, White
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	910 W
Power consumption (standby)	0.3 W
Power consumption (economy mode)	690 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	30 - 90 %

Weight and Dimensions

Depth	660 mm
Width	510 mm
Height	263 mm
Weight	21000 g
Package depth	840 mm
Package width	650 mm
Package height	415 mm
Package weight	26500 g
