5. Advanced menu
Item
Setting
Function
RESET
Use to reset the values of EDG E A DJUS T , BLACK LE VEL and
BRIGHT UN IFORMITY CORRECTION
to the defaults.
COLOR MATCHING OFF Select this o ption when the projector is used alone.
MANUAL
Select this option when adjusting colors while viewing the screen to
correct color variations among the projec tors.
MEASURE Select this option when adjusting c olors using a meas uring instrument
to correct c olor variations among the projectors.
MANUAL
SETTING
The test signal is displayed. M ake adjustment so that the color tones
of eac h im age match a mong the adjoining projectors.
RESET
Use to reset the value of SET TING in the MANUAL to the default.
MEAS UR E
MEASURED DATA
The test signal is displayed. Measure the b rightness and chromaticity
of each im age using a meas uring instrument (chroma meter) and enter
the m easurement values.
TA RGAT DATA
Use to set the target chr omaticity value of each color.
RESET
Use to reset the values of MEASURED DATA and TARGET DATA
in the MEASURE to the defaults.
• When EDGE BLENDING is ON or COLOR MATCHING is M ANU AL or MEASURE, CO LOR ENHANC ER in the IMAGE menu
is set to MULTI-SCREEN. In this case, you c annot set any other items than M ULT I-SCREEN.
• The edge blending function can be used w ith n on-directional screens. If y ou use a directional screen, th e areas where images
are overlapped s eem discontinuous depending on the viewing angle.
• The target chromaticity value entered for TA R GET DATA in the ME AS URE menu is just for guidance. If the obtained result
doesn’t ma tch with the colors displayed on the ad joining projectors, adjust the value while viewing the screens.
5.7 FEATURE menu
Overview
1.
IMAGE INSTALL1 INSTALL2
MULTI-
SCREEN
FEATURE SIGNAL NETWORK INFO
LANGUAGE
ADVANCED MENU
PROJECTOR ID
A
AUTO
English
GROUP ID
ALL
DISPLAY INPUT
ENTER
CINEMA MODE
PASSWORD FUNCTION
MENU POSITION
RESET ALL
OK
IMAGE INSTALL1 INSTALL2
MULTI-
SCREEN
FEATURE SIGNAL NETWORK INFO
ADVANCED MENU
SETUP
SCART INPUT
AUTO
AUTO
OFF
STANDARD
OFF
VIDEO SIGNAL
LAMP WARNING
HIDE OSD
LAMP 1 TIME RESET
OK
LAMP 2 TIME RESET
OK
FILTER TIME RESET
OK

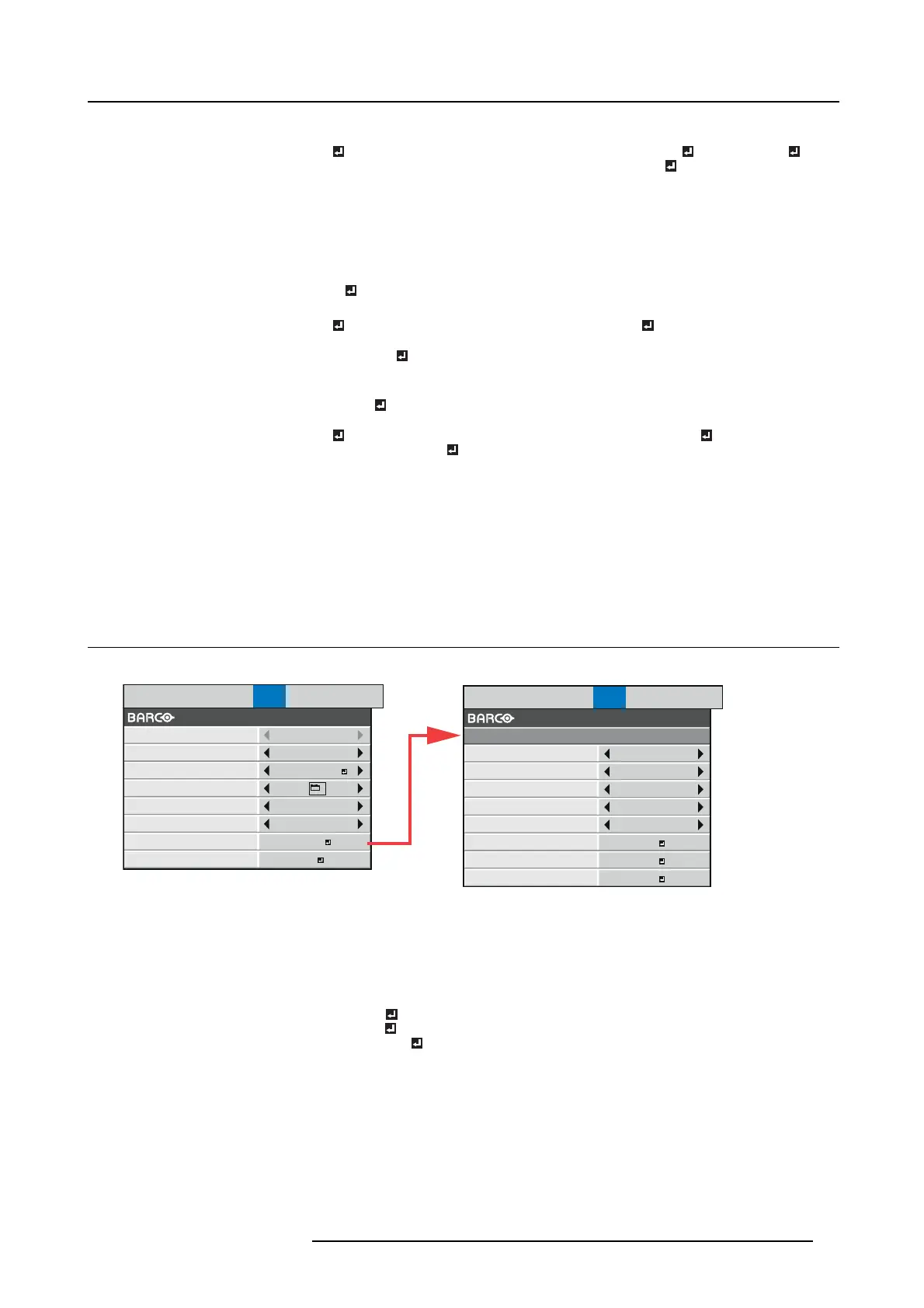

Image 5-17
Item
Setting
Function
PROJ EC TO R ID
ALL
This projector does not support this function.
GROUP ID
AtoZ
Use to set the ID number for c ontrolling multiple projectors by g roups
for monitoring a nd control via the SERIAL terminal.
PASSWORD FUNCTION
DISPLAY INPUT
/
MENU ACCESS
/
SPLASH ID SCR EE N
Use to enable or ca ncel the password lock.
MENU P OSITION 1 (upper left) / 2 (lower
right) / 3 (cente r)
Use to change the position of the menu.
CINEMA MODE AUTO The film mode will be automatically activated when a film source
signal is input.
Select AUTO for normal use.
When flick er occurs on the screen, frame dropping or other incorrect
display o ccurs, or jaggies on slanting lines are remarkable, select
either FILM or VIDEO , which improves the symptom better.
R5905597 PHXX SERIES 20/05/2014
47
