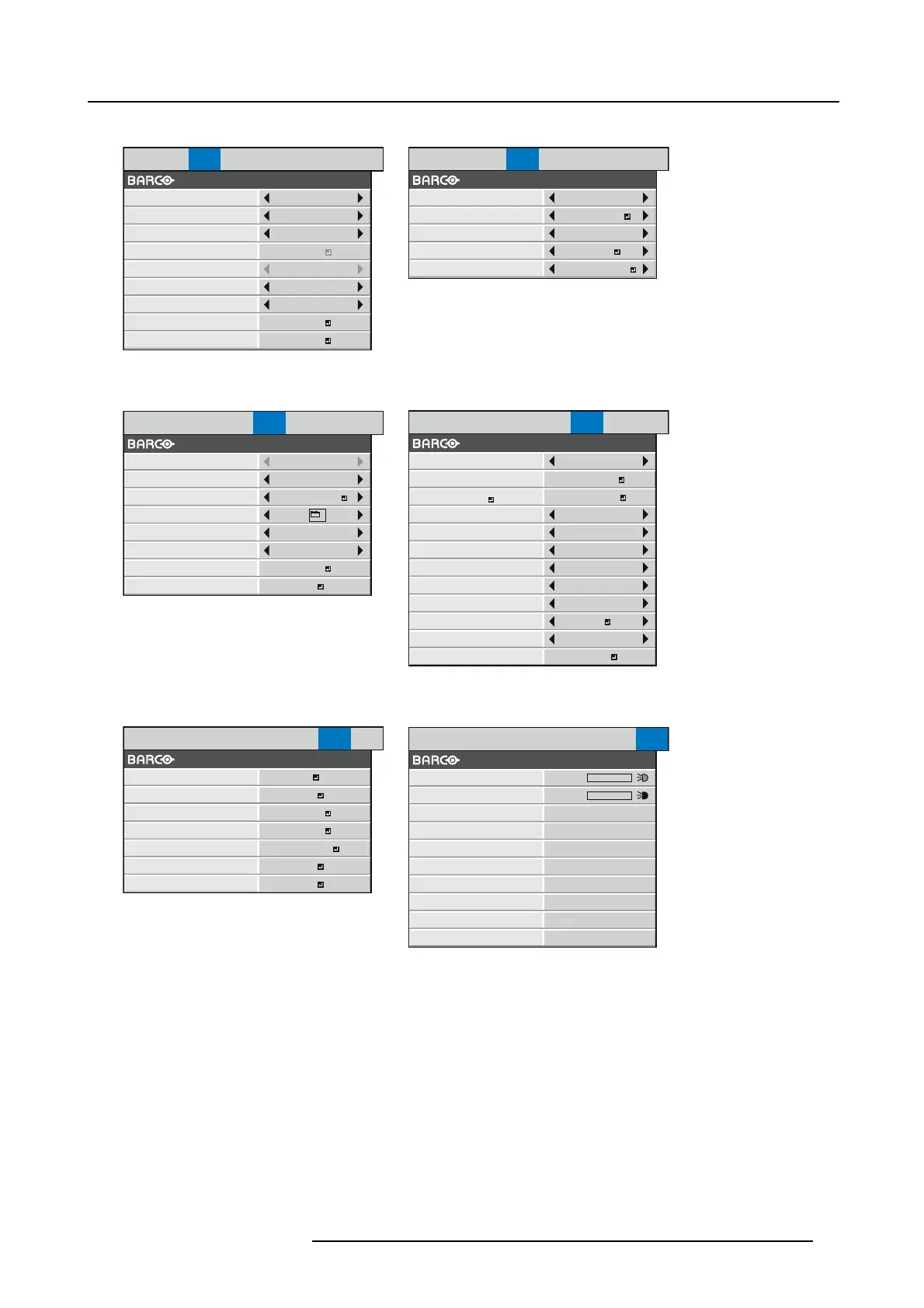

5. Advanced menu
INSTALLATION 2 menu
16:10
IMAGE INSTALL1 INSTALL2
MULTI-
SCREEN
FEATURE SIGNAL NETWORK INFO
REMOTE 1 MODE
FILTER MENU
AUTO POWER ON
AUTO POWER OFF
OFF
ON
AUTO
5min
IMAGE CAPTURE
SPLASH SCREEN
DVI LONG CABLE
BACK COLOR
ENTER
ENTER
SETUP
SCREEN
Image 5-7
MULTI-SCREEN menu
IMAGE INSTALL1 INSTALL2
MULTI-
SCREEN
FEATURE SIGNAL NETWORK INFO
EDGE BLENDING
SETTING
OFF
OFF
EDGE ADJUST
COLOR MATCHING
SETTING
MEASURED DATA
MANUAL
MEASURE
Image 5-8
FEATURE menu
1.
IMAGE INSTALL1 INSTALL2
MULTI-
SCREEN
FEATURE SIGNAL NETWORK INFO
LANGUAGE
ADVANCED MENU
PROJECTOR ID
A
AUTO
English
GROUP ID
ALL
DISPLAY INPUT
ENTER
CINEMA MODE
PASSWORD FUNCTION
MENU POSITION
RESET ALL
OK
Image 5-9
SIGNAL menu
0
0
0
0
1024 x 768
IMAGE INSTALL1 INSTALL2
MULTI-
SCREEN
FEATURE SIGNAL NETWORK INFO
100%
COMPUTER INPUT
AUTO
OVER SCAN
HOLD
USER
FINE SYNC.
VERT. POSITION
MEMORY CALL
RESOLUTION
(MEMORIZE )
AUTO
HORIZ. POSITION
TRACKING
ENTER
ON
ASPECT
NORMAL
SIGNAL MEMORY
MEMORIZE
Image 5-10
NETWORK menu
IMAGE INSTALL1 INSTALL2
MULTI-
SCREEN
FEATURE SIGNAL NETWORK INFO
CONTROL SYSTEM
NETWORK
PASSWORD
NETWORK
CERTIFICATION
PROJECTOR NAME
IP CONFIG
NETWORK RESET
STANDARD
ENTER
ENTER
OK
OFF
NETWORK RESTART
OK
Image 5-11
INFORMATION menu
IMAGE INSTALL1 INSTALL2
MULTI-
SCREEN
FEATURE SIGNAL NETWORK INFO
60.00 Hz
RESOLUTION
1024 x 768
VERTICAL
FREQUENCY
48.36 kHz
5 WIRE
HORIZONTAL
FREQUENCY
SYNC. TYPE
SERIAL NUMBER
FILTER TIME
*****
H
********
...
NEXT LAMP RELAY
COMPUTER1INPUT
*
D
**
H
LAMP 1 TIME (LOW)
LAMP 2 TIME (LOW)
****
H
****
H
Image 5-12
R5905597 PHXX SERIES 20/05/2014 41

Barco PHWU-81B Specifications

General

Matrix size	0.67 \
Matrix type	DMD
Native aspect ratio	16:10
Projection distance	- m
Projection technology	DLP
Contrast ratio (typical)	2800:1
Screen size compatibility	- \
Projector native resolution	WUXGA (1920x1200)
Projector brightness (economic mode)	5450 ANSI lumens
Focal length range	- mm
Lamp power	350 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	4000 h
Full HD	No
Supported graphics resolutions	1920 x 1200 (WUXGA)
BNC input ports	5
Serial interface type	RS-232
USB 2.0 ports quantity	0
Ethernet LAN data rates	10, 100 Mbit/s
I/O ports	SDI
Noise level	44 dB
Noise level (economic mode)	39 dB
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	Black, White
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	910 W
Power consumption (standby)	0.3 W
Power consumption (economy mode)	690 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	30 - 90 %

Weight and Dimensions

Depth	660 mm
Width	510 mm
Height	263 mm
Weight	21000 g
Package depth	840 mm
Package width	650 mm
Package height	415 mm
Package weight	26500 g
