6. Adjustments with the ADVANCED menu
3. Select your desired aspec t ratio by pressing the ◄ or ► key.
- Select the aspect ratio from NORM AL, 16:9, NATIVE (for PHWU-81B /PHWX- 81B only), 4:3, and FULL.
- When 16:9 is selected by SCRE EN in the INSTALLATION 2 me nu, 16:9 cannot be s elected.
- When 4:3 is selected by SC R EE N in the INSTALLAT ION 2 menu, 4:3 cannot be selected.
- The tables on pages 46 and 47 show the image dis play patterns depending on the settings.
4. To cancel the m enu, press the MENU key.

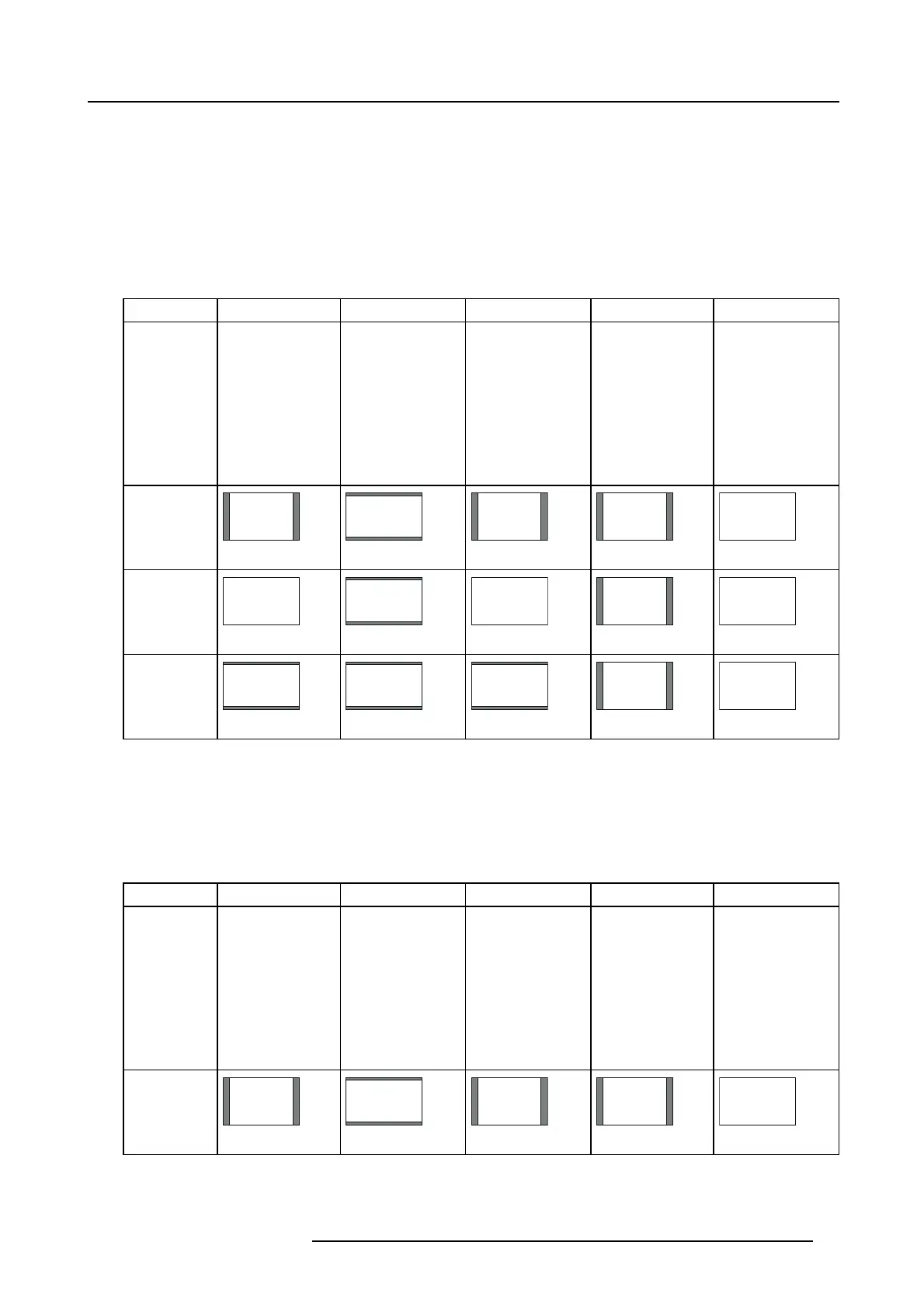

For PHWU-81B:
When SCREE N is 16:10:
Setting NORMAL
16:9 NATIVE 4:3 FULL
Input signal
Input video signal is
displayed at the max
height ( 1200 pixels)
or max width (1920
pixels) of the panel
while its aspect ratio
is maintained.
Regardless of the
type of input s ignal,
image is displayed
at 16:9 as pect
ratio (1920 x 1080
pixels). Select to
expand squeezed
(or horizontally
compressed)
images s uch as
DVD images to 16:9.
Input video signal
is dis played at its
original pixel size.
(When the pixel size
is larger than the
panel size, only the
center part of the
image is displayed.)
Regardless of the
type of input s ignal,
image is displayed
at 4:3 aspect ratio
(1600 x 1200 pixels
Regardless of the
type of input signal,
image is displayed
at the full panel size
(1920 x 1200 pixels).
UXGA signal
1600 x 1200
(4:3)
4:3
1600 x 1200
16:9
1920 x 1080
4:3
1600 x 12 00
4:3
1600 x 1200
16:10
1920 x 1200
WUXGA signal
1920 x 1200
(16:10)
16:10
1920 x 1200
16:9
1920 x 1200
16:10
1920 x 12 00
4:3
1600 x 1200
16:10
1920 x 1200
1080p signal
1920 x 1080
(16:9)
16:9
1920 x 1080
16:9
1920 x 1080
16:9
1920 x 10 80
4:3
1600 x 1200
16:10
1920 x 1200
• In such cases a s when you keep projecting images in the narrower area than the screen for a long time and then c hange the
mode to FULL, the ma sking areas may remain as afteri
mage around the displayed image. Consult your dealer in this case.
• If you change the screen setting, the aspect setting is automa tically changed to NORMAL. Therefore, in such a case, set the
desired aspect ratio again.
For PHWX-81B:
When SCREE N is 16:10:
Setting NORMAL
16:9 NATIVE 4:3 FULL
Input signal
Input video signal is
displayed at the max
height (800 pixels)
or max width (1280
pixels) of the panel
while its aspect ratio
is maintained.
Regardless of the
type of input s ignal,
image is displayed
at 16:9 as pect
ratio (1280 x 720
pixels). Select to
expand squeezed
(or horizontally
compressed)
images s uch as
DVD images to 16:9.
Input video signal
is dis played at its
original pixel size.
(When the pixel size
is larger than the
panel size, only the
center part of the
image is displayed.)
Regardless of the
type of input s ignal,
image is displayed
at 4:3 aspect ratio
(1066 x 800 pixels).
Regardless of the
type of input signal,
image is displayed
at the full panel size
(1280 x 800 pixels).
XGA signal
1024 x 768
(4:3)
4:3
1066 x 800
16:9
1280 x 72 0
4:3
1024 x 768
4:3
1066 x 800
16:10
1280 x 800
R5905597 PHXX SERIES 20/05/2014 59
