Barco PHWU-81B User Manual

9. Advanced features
A
B
C

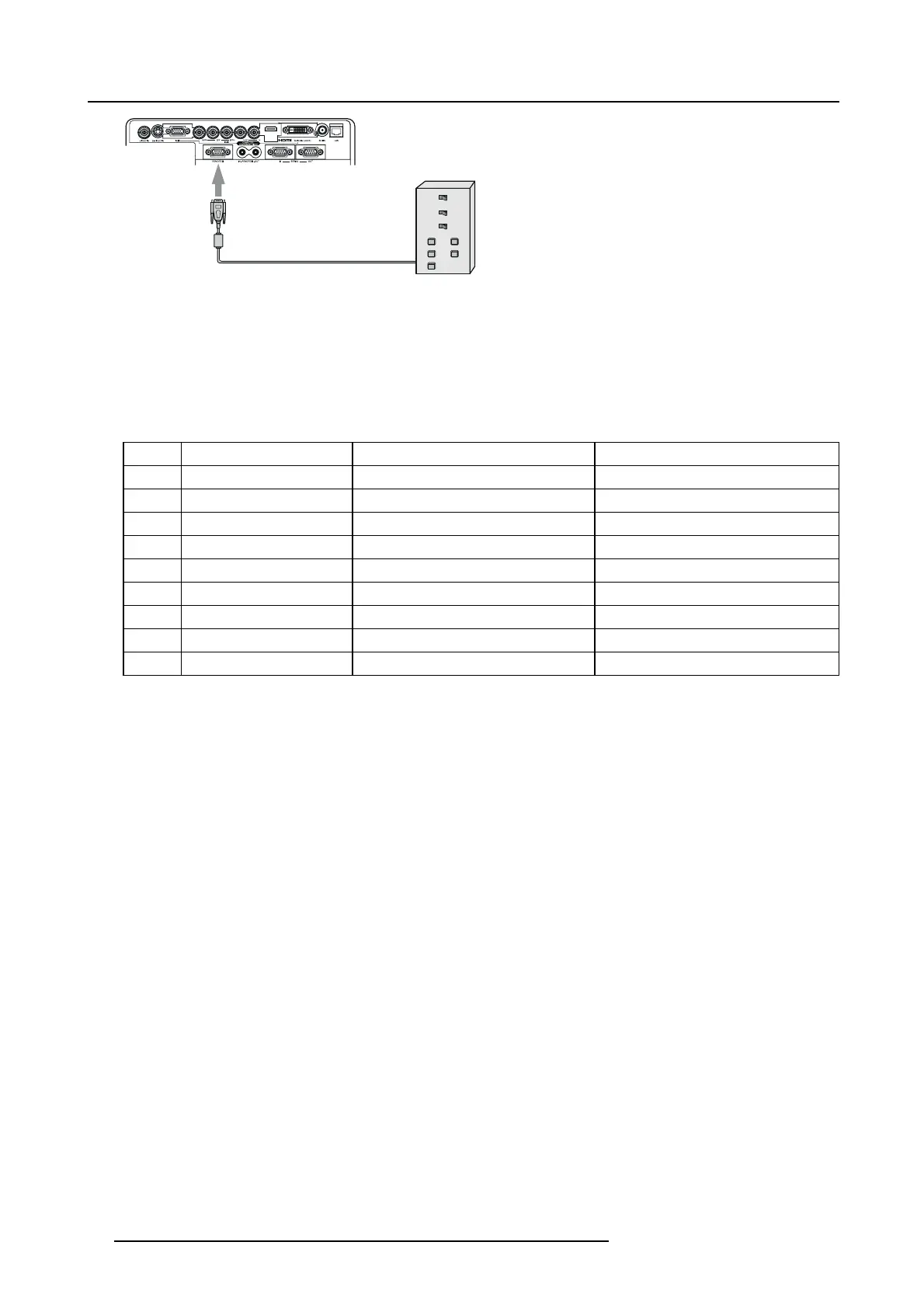

Image 9-9
AToREMOTE1IN
B RS-232C cable (option)
C Control panel
1. Connect one end of an RS-232C cable to the REM O TE 1 IN terminal on the projector.
2. Connect the other end of the RS-232C cable to the control panel.
Pin functions (defaults)
Connect the other end of the RS-232C cable to the control panel.
Pin No.
Signal Open (H) Short (L)
1
GND
-
GND
2
POWER OFF ON
3 Input
-
COMPUTER1
4 Input
-
COMPUTER2
5
Input
-
VIDEO
6 Input
-
S-VIDE O
7
Input
-
DVI
8BLANK
OFF ON
9
ON/OFF Valid (Remote control) Invalid (External contact control)
→ You can change the functions of P IN 2 to PIN 8 using REM OT E 1 MO DE in the INSTA LLATION 2 menu.
Important:
To reset the pin functions to the defaults, se t REM O TE 1 M O DE in the INSTALLATIO N 2 to RES ET.
Contact control
By short-circuiting P in No. 1 and P in No. 9, y ou can control the projector using a c ontrol panel or other device.
When you s hort-circuit Pin No. 1 and Pin No. 9, the following functions cannot be used:
• POWER and BLANK of the remote control and the projector
• RS-232C commands and network functions corresponding to the above-mentioned functions
• REMOT E 1 M ODE, A UTO POW E R ON and AUTO POWER OFF in the INSTALLATION 2 menu.
• STANDBY MO DE in the INSTALLATION 1 menu.
Input switching control
By short-circuiting any of Pin No. 3 to Pin N o. 7, you can switch the input using a control pan el or other device.
When short-circuiting any of Pin N o. 3 to Pin No. 7, you ca nnot use the following functions.
• POWER, BLANK, CO M PUTE R 1, COM PUT E R 2, VIDEO , S-VIDEO , DVI, HDMI, and SDI (for PHWU-81B only) of the remote
control and the projector
• RS-232C commands and network functions corresponding to the above-mentioned functions
POWER control
By s hort-circuiting or open- circuiting Pin No. 2, you can turn on or off the power using a c ontrol panel or other device.
BLANK control
By sh ort-circuiting or open-circuiting Pin N o. 8, you c an turn on or off the BLANK function us ing a control panel or other device.
92
R5905597 PHXX SERIES 20/05/2014

Barco PHWU-81B Specifications

General

Matrix size	0.67 \
Matrix type	DMD
Native aspect ratio	16:10
Projection distance	- m
Projection technology	DLP
Contrast ratio (typical)	2800:1
Screen size compatibility	- \
Projector native resolution	WUXGA (1920x1200)
Projector brightness (economic mode)	5450 ANSI lumens
Focal length range	- mm
Lamp power	350 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	4000 h
Full HD	No
Supported graphics resolutions	1920 x 1200 (WUXGA)
BNC input ports	5
Serial interface type	RS-232
USB 2.0 ports quantity	0
Ethernet LAN data rates	10, 100 Mbit/s
I/O ports	SDI
Noise level	44 dB
Noise level (economic mode)	39 dB
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	Black, White
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	910 W
Power consumption (standby)	0.3 W
Power consumption (economy mode)	690 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	30 - 90 %

Weight and Dimensions

Depth	660 mm
Width	510 mm
Height	263 mm
Weight	21000 g
Package depth	840 mm
Package width	650 mm
Package height	415 mm
Package weight	26500 g
